Mini base board with dual gigabit Ethernet, enclosure, and power supply for Raspberry Pi CM5 - Waveshare 31074
ID: 1197758
5902186305298
zł197.00
Tax included
zł160.16 tax excl.

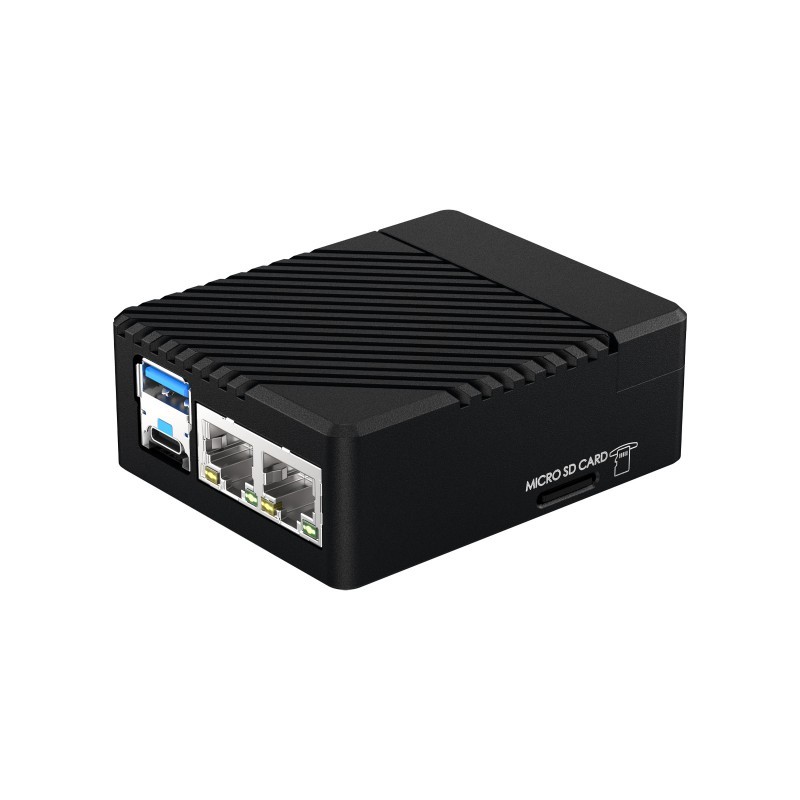

CM5-DUAL-ETH-MINI-BOX (EU) is a compact development kit for the Raspberry Pi Compute Module 5 with dual Gigabit Ethernet ports, enabling use in network systems, routers, IoT devices, and edge computing solutions. The aluminum enclosure with integrated heatsinks provides efficient cooling, while the network ports and GPIO allow integration with various industrial and embedded systems. Raspberry Pi Compute Module 5 not included. Raspberry Pi Compute Module 5 not included.
Description
The CM5-DUAL-ETH-MINI-BOX computer kit includes a base board with dual Gigabit Ethernet ports, a metal enclosure with heatsinks, and a 27 W power supply. The module is designed to support all variants of the Raspberry Pi Compute Module 5. It provides enhanced network communication through two RJ45 ports – one native and one via PCIe. It features a USB 3.0 port, a 40-pin GPIO header, a TF card slot for Lite versions, and an SH1.0 fan connector with speed sensing and control. The aluminum enclosure ensures efficient heat dissipation, while the magnetic cover allows easy access to connectors. The kit enables fast deployment in embedded and industrial applications.
Features
- Compatibility: All variants of Raspberry Pi Compute Module 5
- Network: 2× RJ45 Gigabit Ethernet ports (CM5 + PCIe)
- USB: 1× USB 3.2 Gen1 Type-A port
- GPIO: 40PIN header compatible with Raspberry Pi
- Card slot: TF card slot for CM5 Lite
- Power: 5V via USB Type-C port (for eMMC programming / power supply)
- Fan connector: SH1.0 4-pin, speed control and sensing, 5V
- LED indicators: Power and status
- Buttons: PSW (Power On/Off), BOOT (Programming Mode)
- System switches: EEPROM WP, WiFi DIS, BT DIS
- Dimensions: Board – 55×68 mm; with enclosure – 61×75×27.5 mm
- Enclosure: Aluminum with magnetic components and ventilation holes
Included
- CM5-DUAL-ETH-MINI board with enclosure (assembled) x1
- Thermal pads x5
- Black thermal tape x1
- Anti-slip rubber feet x4
- 27 W power supply x1
- Screwdriver x1
