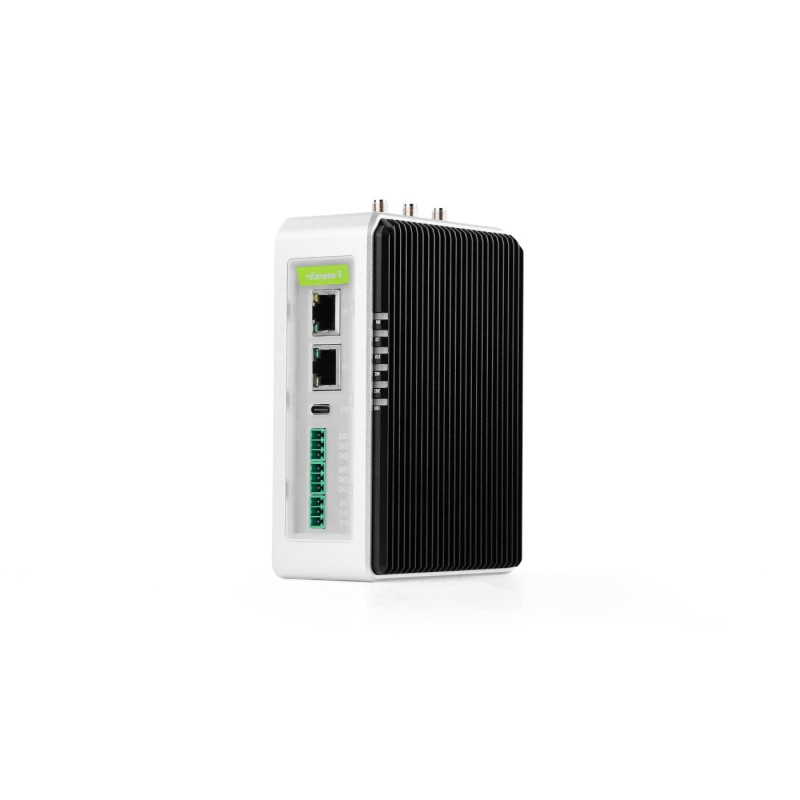

Main view
search
  • Side view
  • Main view
  • Front view
ID: 1204614
zł1,999.00
Tax included

zł1,625.20 tax excl.

Industrial IoT gateway and edge controller based on the Raspberry Pi Compute Module 4 with a quad-core 1.5 GHz Cortex-A72 processor, 4 GB RAM, and 32 GB of eMMC memory. The device supports LoRaWAN v1.1.0 communication in the EU868 band using the SX1302 chip and eight transmission channels, enabling the construction of large-scale IoT networks. It is equipped with numerous industrial interfaces, including three isolated RS485 ports, two Ethernet ports with PoE support, USB, HDMI, a SIM slot, and an M.2 socket. A fanless design with an IP40 enclosure, a hardware watchdog, a supercapacitor UPS module, and TPM 2.0 and ATECC608A security chips ensure high reliability in industrial applications and automation systems. Seeed Studio 100079154

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

reComputer R1225 is an advanced industrial IoT gateway and edge controller based on the Raspberry Pi Compute Module 4. The device is designed as a reliable platform for LoRaWAN communication systems, building automation, and industrial monitoring and control applications. Powered by a Quad-core Cortex-A72 1.5 GHz processor, equipped with 4 GB RAM and 32 GB eMMC storage, the gateway enables efficient processing of large volumes of data directly at the edge computing level. The system runs on Seeed Gateway OS, providing a stable environment for IoT applications and sensor network management.


The device supports the LoRaWAN v1.1.0 protocol and operates in the EU868 band, offering up to 8 communication channels and high receiver sensitivity, allowing communication with devices located at long distances. The integrated SX1302 chipset provides high transmission efficiency and stable operation in large IoT networks. Built-in support for 2.4 GHz and 5 GHz Wi-Fi enables integration with wireless networks and remote access to the device. This makes the gateway suitable for applications such as environmental monitoring, smart city systems, energy management, and industrial infrastructure.


The reComputer R1225 provides a wide range of industrial interfaces, including three isolated RS485 ports supporting popular communication protocols such as Modbus and BACnet. Additionally, the device features two Ethernet ports, one of which supports Power over Ethernet (PoE), allowing the gateway to be powered directly through the network cable. Built-in USB ports, HDMI, SIM slot, and M.2 connector allow connection of additional communication modules, storage devices, or peripherals. A fanless design and IP40-rated enclosure ensure reliable operation in demanding industrial environments.

The system is also equipped with a hardware watchdog, high-precision RTC clock, and a UPS module based on a supercapacitor, improving reliability in critical applications. Additional security features such as a TPM 2.0 encryption chip and ATECC608A cryptographic module enable secure storage of cryptographic keys and protection of communication. Thanks to compatibility with AI NPU accelerators, the device can also be used in edge AI projects. The reComputer R1225 is an excellent solution for BMS, BAS, and iBMS systems, remote infrastructure management, industrial monitoring, and smart IoT installations.

Features

  • Processor: Raspberry Pi CM4, Quad-core Cortex-A72 @ 1.5 GHz
  • Operating system: Seeed Gateway OS
  • RAM: 4 GB
  • eMMC storage: 32 GB
  • Input power: 2-pin screw terminal
  • PoE: IEEE 802.3af Standard 12.95 W
  • Power supply voltage: 12 to 24 V AC / 9 to 36 V DC
  • Overvoltage protection: 40 V
  • Restart button
  • Ethernet ports: 1 × 10/100/1000 Mbps (PoE support), 1 × 10/100 Mbps IEEE802.3 / IEEE802.3u
  • USB: 2 × USB-A 2.0 Host, 1 × USB-C 2.0 (for system installation)
  • RS485: 3 × 3-pin screw terminal (isolated)
  • SIM card slot
  • M.2 slot supporting NVMe SSD drives
  • LED indicators: 6 status LEDs
  • Buzzer
  • Reset button
  • HDMI 2.0
  • LoRa:
    • Chipset: SX1302
    • Number of LoRa channels: 8
    • Supported LoRaWAN protocol: v1.1.0 Class A / Class B / Class C
    • Frequency range: 863–870 MHz
    • Frequency plan: EU868 / IN865 / RU864
    • Receiver sensitivity: -125 dBm @125K/SF7
    • Receiver sensitivity: -139 dBm @125K/SF12
    • Transmission power: up to 26 dBm
    • External 3 dBi antenna with base
  • Wi-Fi: 2.4 GHz / 5 GHz support
  • Wi-Fi / BLE antenna
  • EMC standards: ESD EN61000-4-2 Level 3
  • EMC standards: EFT EN61000-4-4 Level 2
  • EMC standards: Surge EN61000-4-5 Level 2
  • Enclosure protection rating: IP40
  • Operating temperature: -30 to 70 °C
  • Operating humidity: 10 to 95 % RH
  • UPS module: SuperCAP UPS LTC3350
  • Hardware watchdog
  • High-precision real-time clock (RTC)
  • Security chip: TPM 2.0*
  • Cryptographic chip: ATECC608A
  • Cooling: passive (fanless)
  • Dimensions: 135 × 93 × 49.5 mm

Kit contains

  • reComputer R1225 LoRaWAN gateway
  • DIN rail mounting bracket
  • Screw set
  • DC Power Female Jack to screw terminal adapter
  • 3 × 3-pin connector (male)
  • Wi-Fi & BLE antenna
  • LoRa antenna
  • 5 × 120 Ω resistor
