The Raspberry Pi Smart Display Module display adapter enables the integration of Raspberry Pi Compute Module 5 with displays compliant with the Intel Smart Display Module (SDM) specification. The SDM-L module is powered directly by the host display and provides an M.2 M-Key PCIe socket, an additional HDMI output, support for the Raspberry Pi Antenna Kit, and an external power button. A passive aluminium heatsink for cooling the CM5 is included. Raspberry Pi SC2366

24h
Available
Available quantity: 31
Kamami is the Approved Reseller of Raspberry Pi minicomputers and dedicated accessories.

Description

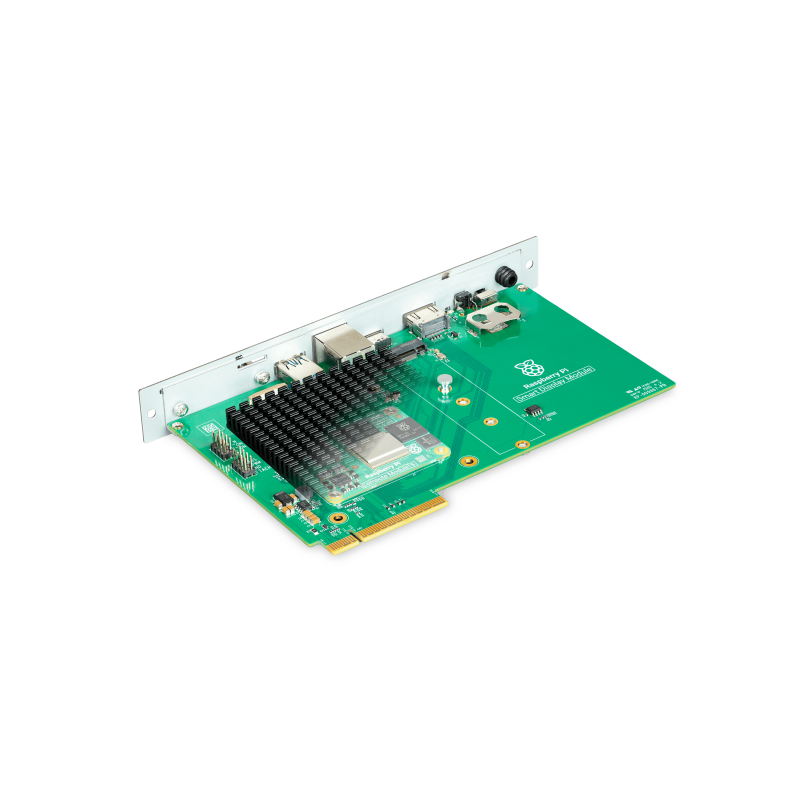

Raspberry Pi Smart Display Module display adapter enables Compute Module 5 installation in displays compliant with the Intel SDM specification. The SDM-L form factor allows the computing module to be installed directly inside a compatible display without external power cabling or a separate enclosure. The solution can be used in digital signage systems and integrated information display platforms.

Compute Module 5 mounts directly onto the Smart Display Module board. The included passive aluminium heatsink dissipates heat from the CM5 while fitting within the SDM form factor. The entire module is powered directly by the host display.

Kamami.pl is an authorized Raspberry Pi distributor

Kamami is the official distributor of Raspberry Pi minicomputers and dedicated accessories.

The M.2 M-Key PCIe socket supports 2230, 2242, 2260, and 2280 form factors, allowing additional storage or an AI accelerator to be installed. The module is also compatible with the Raspberry Pi Antenna Kit, allowing the external antenna to be positioned outside the host display.

An additional HDMI output supports an independent video stream. The board also features an external power button for power cycling the module independently from the display and an LED indicating power status and storage activity.

Features

  • Manufacturer: Raspberry Pi
  • Model: Smart Display Module
  • SKU: SC2366
  • Compatibility: Raspberry Pi Compute Module 5
  • Standard: Intel Smart Display Module
  • Form factor: SDM-L
  • Power supply: directly from a compatible host display
  • Expansion socket: M.2 M-Key PCIe
  • Supported M.2 form factors: 2230, 2242, 2260, 2280
  • M.2 applications: storage or AI accelerator
  • Video output: additional HDMI with independent video stream support
  • Antenna support: Raspberry Pi Antenna Kit
  • Cooling: passive aluminium heatsink
  • Power button: yes, external
  • LED indication: power status and storage activity
  • Main board dimensions: 175 x 100 x 25 mm
  • Dimensions with face plate, handle and gold finger interface: 193 x 125 x 25 mm
  • Weight: 146 g
  • Weight with Compute Module 5: approximately 225 g

Kit includes

  • Raspberry Pi Smart Display Module
  • Passive aluminium heatsink
  • 4 x M3 heatsink mounting screws
  • 2 x M2 Compute Module 5 mounting screws
  • M.2 drive mounting screw
