USB to UART (TTL) and RS485 converter, designed for programming and operating FEETECH SMS and SCS series servos. It supports 3.3V and 5V logic levels and a wide range of baud rates from 50 bps to 1 Mbps, providing great application flexibility. The device offers automatic half-duplex switching and overcurrent protection up to 500 mA for increased operational safety. Seeed Studio 100036057

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

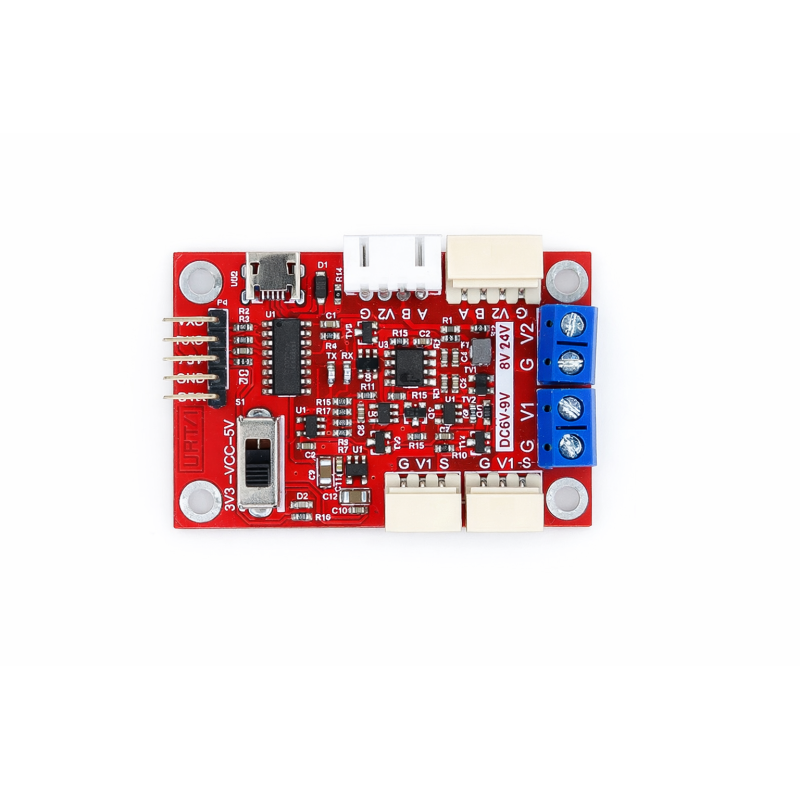

Feetech FE-URT-1 is a multifunctional converter designed for convenient operation and programming of FEETECH servos from the SMS and SCS series. The device enables easy conversion of USB to UART (TTL) and RS485 bus, significantly simplifying the configuration, testing, and diagnostics of servo mechanisms. Thanks to the integration of a USB interface and an LDO voltage regulator, the module ensures stable and reliable communication. The converter supports 5 V and 3.3 V logic levels, which can be switched depending on application requirements, increasing its versatility and compatibility with various systems. The device supports a wide baud rate range from 50 bps to 1 Mbps, allowing operation in both simple and advanced control systems. The USB 2.0 interface ensures fast and stable connection to a computer.


The converter features asynchronous half-duplex communication with automatic direction switching, eliminating the need for additional control lines and simplifying system design. This allows multiple servos to be controlled from a single serial port. Additionally, short-circuit and overcurrent protection (500 mA) enhances operational safety. The device includes dedicated connectors for SCS (3-pin) and SMS (4-pin) servos, as well as a universal UART interface, allowing it to be used as a standard USB-UART converter for microcontrollers. Built-in LED indicators (power, TX, and RX) enable quick monitoring of communication status and troubleshooting. The ability to power the device via USB or an external 5 V source increases flexibility of use.

Features

  • USB interface: compatible with USB 2.0
  • Baud rate range: 50 bps to 1 Mbps
  • UART logic levels: switchable 5V / 3.3V
  • Communication mode: asynchronous half-duplex with automatic switching
  • Supported servos: FEETECH SMS and SCS
  • Control of multiple servos from a single port
  • Interfaces
    • UART: 2.54 mm pitch connector
    • SCS servo connector: 3PIN 5264-3AW
    • SMS servo connector: 4PIN 5264-4AW
    • Power supply: 5.08 mm screw terminal
    • Mini USB interface
  • LED indicators: power (D1), TX (D2), RX (D3)
  • Power supply: 5V via USB or external 5V
  • Protections: overcurrent 500 mA, overvoltage protection
  • Compatibility: Windows 10, 8.1, 8, 7, Vista, XP and server versions (32/64-bit)
  • Dimensions: 55.8 × 36.6 × 11.5 mm
  • Mounting hole spacing: 48.8 × 28.8 mm
  • Weight: 12.5 g
