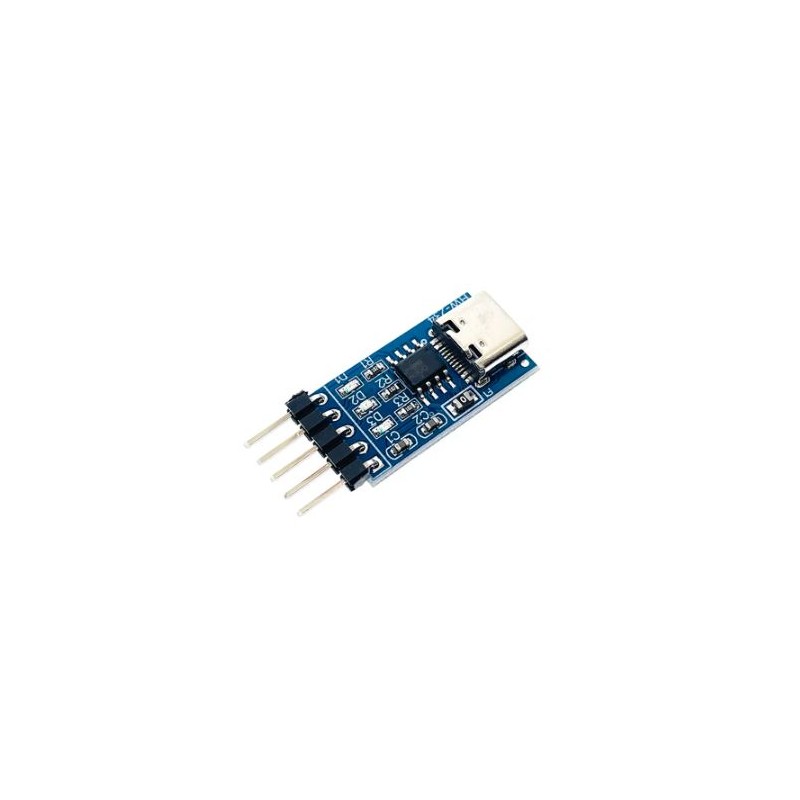

USB-UART converter module with CH340N chip (USB type C)
ID: 1178695
5902186314740
zł8.50
Tax included
zł6.91 tax excl.
USB-UART converter based on the CH340N chip. It uses a USB type C connector and ensures stable and secure communication between the computer and devices using the UART interface
Description
USB-UART converter that enables safe and stable communication between a computer and devices with a UART serial interface. It is based on the popular CH340N chip. It is equipped with a USB type C connector, which allows for easy and trouble-free connection to modern computers and mobile devices. It is equipped with a number of security features, which ensures stable and secure communication. The module can communicate with devices with voltage levels of 3.3 V or 5 V. The operating status of the device is indicated by 3 LEDs: power, reception, data transmission.
Features
- Host Interface: USB type C
- Device interface: UART
- Transmission speed: 50 bps to 6 Mbps
- 3.3V or 5V TTL UART interface
- USB Type-C connector
- Dimensions: 24.5 x 13.5mm
