DHP8-09M - D-SUB9 angled male socket
ID: 748
5906623475858
zł1.87
Tax included
zł1.52 tax excl.

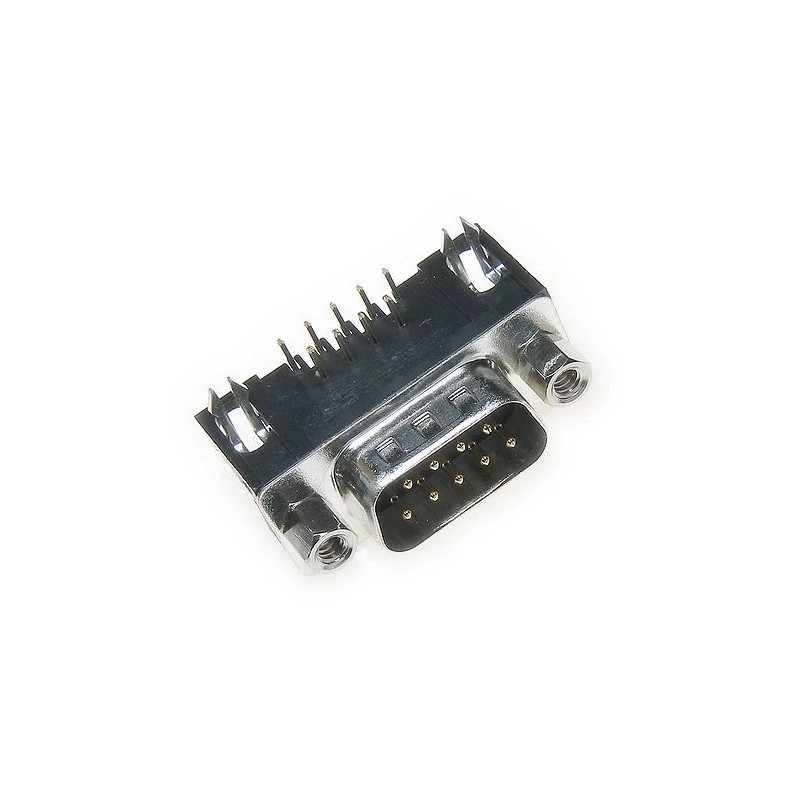

D-SUB9 angled male socket, ideal for signal connections in various types of electronic devices. DHP8-09M
Description
The angled male D-SUB9 socket is a sturdy and reliable connector, perfect for signal connections in various electronic devices. Thanks to its durable construction and stable connection, it ensures reliable operation even in challenging environmental conditions. The use of high-quality materials makes it a product with high durability and reliability.
Features
- Number of pins: 9
- Connector type: male socket
- Spatial orientation: 90° angled
- Electrical mounting: THT
- Thread: UNC 4-40
- Locking system: screws
- Connector version: standard 7.2mm
- Rated current: 5 A
- Maximum contact resistance: 15 mΩ
- Dimensions: 17 x 25 x 31 mm
- Operating temperature: -55°C to 105°C
748
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
