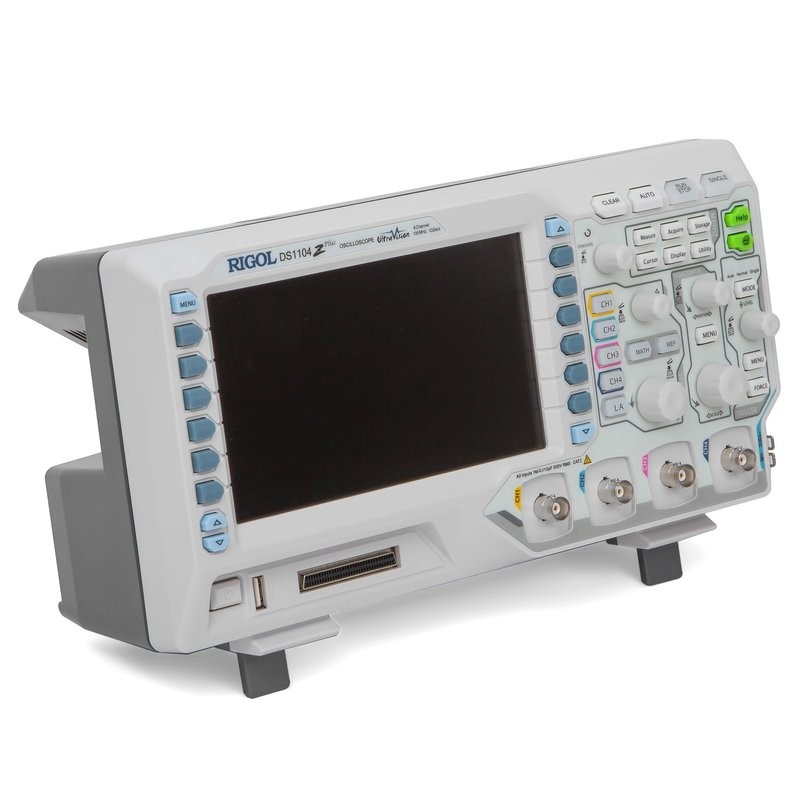

Rigol DS1104Z Plus - 4-channel 100MHz digital oscilloscope
ID: 1185292
5902186309265
zł2,235.00
Tax included
zł1,817.07 tax excl.
A four-channel digital storage oscilloscope (MSO) expandable with an additional 16 logic channels, ideal for professional and educational applications. It offers a sampling rate of up to 1 GSa/s, 12 Mpts of memory (expandable to 24 Mpts), and an acquisition rate of up to 30,000 wfms/s, enabling accurate signal analysis. Equipped with a 7-inch color display, USB, LAN, and AUX interfaces, as well as mathematical analysis and triggering functions, it provides convenience and versatility. The Rigol DS1104Z Plus
Description
RIGOL DS1104Z Plus is a modern, four-channel digital oscilloscope with the option to upgrade to the MSO version with an additional 16 digital channels. The device combines high measurement accuracy, compact design, and a rich set of analytical features, making it an ideal choice for both professional applications and education. Thanks to UltraVision technology, the oscilloscope offers advanced triggering, decoding, and signal analysis functions. It provides a sampling rate of up to 1 GSa/s, 12 Mpts acquisition memory (expandable to 24 Mpts), and a waveform acquisition rate of up to 30,000 wfms/s. The vertical sensitivity range from 1 mV/div to 10 V/div allows for the analysis of both very weak and strong signals while maintaining a low noise level. An intuitive interface and 7-inch WVGA color display (800×480) ensure comfortable operation and clear data presentation.
In addition to standard math functions (addition, subtraction, multiplication, division, FFT), the oscilloscope offers advanced triggering modes and frame recording capabilities, allowing for the capture and analysis of complex signals. The device is equipped with a wide range of communication interfaces: LAN, USB Host & Device, AUX, and optional USB-GPIB. Solid construction, low power consumption, fan cooling, and a wide operating temperature range ensure reliability and long service life. The RIGOL DS1104Z Plus is an excellent solution for engineers, students, and electronics enthusiasts who need a versatile and powerful measuring tool at a reasonable price.
Features
- Bandwidth: 100 MHz
- Analog channels: 4
- Digital channels: 16 (optional with MSO Upgrade package)
- Sampling rate: up to 1 GSa/s (1 channel), 500 MSa/s (2 channels), 250 MSa/s (4 channels)
- Acquisition memory: 12 Mpts (24 Mpts optional)
- Waveform capture rate: up to 30,000 wfms/s
- Vertical sensitivity: 1 mV/div – 10 V/div
- Offset range: ±2 V (for 1 mV/div – 499 mV/div), ±100 V (for 500 mV/div – 10 V/div)
- Vertical resolution: 8 bit
- Math functions: Add, Subtract, Multiply, Divide, FFT
- Display: 7″ color LCD WVGA (800×480)
- Interfaces: LAN, USB Host & Device, AUX, USB-GPIB (optional)
- Cooling: fan-based
- Power supply: 100–240 V, 45–440 Hz, power consumption 50 W (max.)
- Dimensions: 313.1 × 160.8 × 122.4 mm
- Weight: 3.8 kg
Kit contains
- Rigol DS1104Z Plus
- 4 × probes
- USB cable
- Power cord
1185292
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 100 MHz
- Sampling rate
- 1 GSa/S
- Memory depth
- 12 Mpts
- Number of channels
- 4
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
