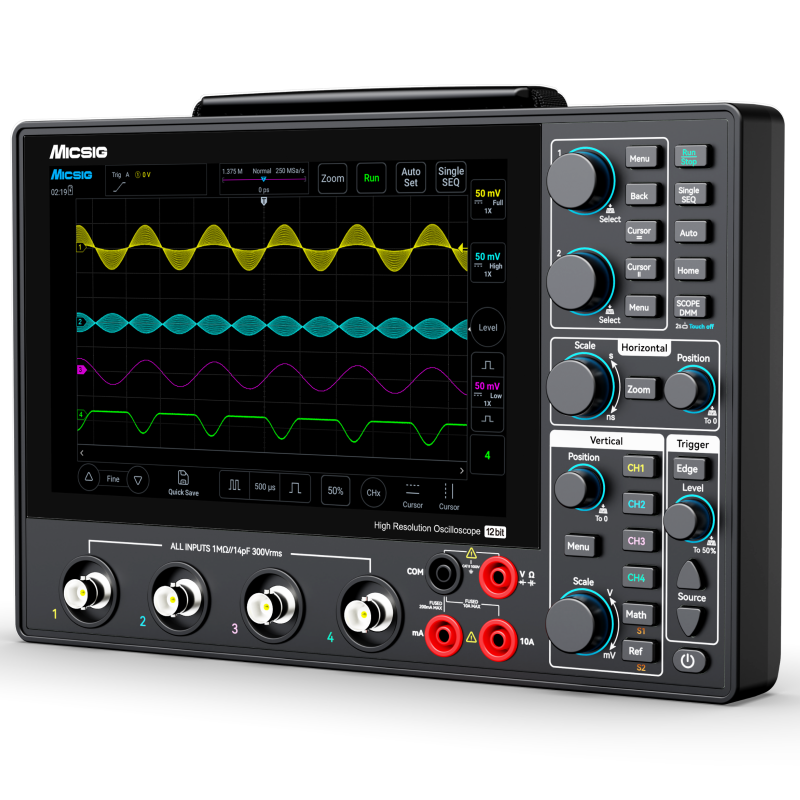

Micsig MHO14-200 - 4-channel 200 MHz oscilloscope
ID: 1199308
zł3,499.01
Tax included
zł2,844.72 tax excl.
Micsig MHO14-200 is a four-channel, tablet-based 12-bit oscilloscope with a 200 MHz bandwidth, designed for mobile and advanced signal measurements. It supports remote control, serial bus decoding, and multimeter functions, making it a versatile tool for electronics technicians and service engineers.
Description
The Micsig MHO14-200 digital oscilloscope is a compact, professional measuring tool with a 12-bit ADC, offering 200 MHz bandwidth, 4 analog channels, up to 1 GSa/s sampling rate, and 110 Mpts memory depth. Its slim 31 mm profile and low weight (1.73 kg) enable convenient field use. The integrated 8" TFT LCD touchscreen with 1280×800 resolution provides a clear display and intuitive operation. The device supports serial bus decoding (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B), remote control via PC or mobile app, and data saving in various formats. A built-in 4½-digit multimeter enables additional voltage, current, resistance, capacitance, continuity, and diode measurements.
Features
- Bandwidth: 200 MHz
- Channels: 4 analog
- Sampling rate: 1 GSa/s (max)
- Memory depth: 110 Mpts (single channel)
- Display: 8" TFT LCD touchscreen, 1280×800 px
- Power: 16000 mAh Li-Ion battery (optional), 12 V DC power supply
- Dimensions: 265 × 174 × 31 mm
- Weight: 1.73 kg
- Vertical resolution: 12-bit
- Sampling rate with 4 channels: 250 MSa/s
- Inputs: USB 3.0, USB-C, LAN, HDMI, Trigger Out
- Internal memory: 32 GB
- Trigger modes: edge, pulse, logic, slope, runt, time, video, bus decoding
- Math functions: basic, advanced, FFT
- Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B
- Multimeter: DC/AC V/A, resistance, capacitance, diode test, continuity
- Operating system: Android
- SCPI support: yes
Included
- MHO14-200 oscilloscope
- 4× passive probes
- 1 pair of multimeter test leads
- 12 V DC power supply
- Power cable
1199308
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 200 MHz
- Sampling rate
- 1 GSa/S
- Memory depth
- 110 Mpts
- Number of channels
- 4
