Micsig MHO14-200 kit-HB - 4-channel 200 MHz oscilloscope with portable handbag
ID: 1199309
zł3,694.70
Tax included
zł3,003.82 tax excl.
Micsig MHO14-200 kit-HB is a four-channel, tablet-based 12-bit oscilloscope with a 200 MHz bandwidth, designed for mobile and advanced signal measurements. It supports remote control, serial bus decoding, and multimeter functions, making it a versatile tool for electronics technicians and service engineers. Portable handbag included in the set.
Description
The Micsig MHO14-200 kit-HB digital oscilloscope is a compact, professional measuring tool with a 12-bit ADC, offering 200 MHz bandwidth, 4 analog channels, up to 1 GSa/s sampling rate, and 110 Mpts memory depth. Its slim 31 mm profile and low weight (1.73 kg) enable convenient field use. The integrated 8" TFT LCD touchscreen with 1280×800 resolution provides a clear display and intuitive operation. The device supports serial bus decoding (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B), remote control via PC or mobile app, and data saving in various formats. A built-in 4½-digit multimeter enables additional voltage, current, resistance, capacitance, continuity, and diode measurements.
Features
- Bandwidth: 200 MHz
- Channels: 4 analog
- Sampling rate: 1 GSa/s (max)
- Memory depth: 110 Mpts (single channel)
- Display: 8" TFT LCD touchscreen, 1280×800 px
- Power: 16000 mAh Li-Ion battery (optional), 12 V DC power supply
- Dimensions: 265 × 174 × 31 mm
- Weight: 1.73 kg
- Vertical resolution: 12-bit
- Sampling rate with 4 channels: 250 MSa/s
- Inputs: USB 3.0, USB-C, LAN, HDMI, Trigger Out
- Internal memory: 32 GB
- Trigger modes: edge, pulse, logic, slope, runt, time, video, bus decoding
- Math functions: basic, advanced, FFT
- Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B
- Multimeter: DC/AC V/A, resistance, capacitance, diode test, continuity
- Operating system: Android
- SCPI support: yes
Included
- MHO14-200 kit-HB oscilloscope
- 4× passive probes
- 1 pair of multimeter test leads
- 12 V DC power supply
- Power cable
- Portable handbag
1199309
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 200 MHz
- Sampling rate
- 1 Gsps
- Memory depth
- 110 Mpts
- Number of channels
- 4
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Digital oscilloscope with two measurement channels equipped with a large TFT LCD screen with a touch panel. It offers a bandwidth of 200 MHz and a sampling rate of 1 GSa/s. Supplied with software that allows analysis of the tested signals on a PC in real time. Hantek DPO6202B
zł1,848.06
24h
Available quantity: 1
Available
4-channel digital oscilloscope offering 500 MHz frequency bandwidth and up to 3 GSa/s sampling rate. It has a built-in memory with a depth of 360 Mpts. It is equipped with a 14-inch touch screen with a resolution of 1920 x 1200 pixels. Micsig MHO3-5004
zł16,999.01
4 weeks
No product available!
Digital oscilloscope. It has two measurement channels with 100 MHz bandwidth. Hantek DSO2C10
zł876.56
4 weeks
No product available!
4-channel digital oscilloscope, which offers a frequency band of 250 MHz and a sampling rate of up to 3 GSa/s. The device has a built-in memory with a capacity of 360 Mpts, guaranteeing long-term data recording without losing details. It is equipped with a large, 14-inch touch screen with a high resolution of 1920 x 1200 pixels, providing a clear and convenient view of waveforms. Micsig MDO2504
zł9,269.54
4 weeks
No product available!

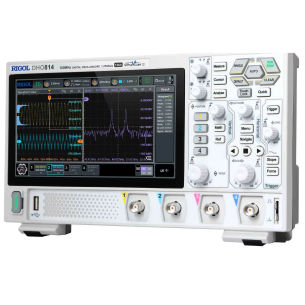

A compact and cost-effective digital oscilloscope with four channels, 70 MHz bandwidth, and 12-bit resolution, ideal for professional and educational applications. It offers a sampling rate of up to 1.25 GSa/s, 25 Mpts of memory, and an acquisition rate of up to 1,000,000 wfms/s in UltraAcquire mode, enabling precise capture of even rare signal anomalies. Equipped with a 7-inch touchscreen, intuitive controls, USB, LAN, and HDMI interfaces, and USB-C power, it offers ease of use and portability.
