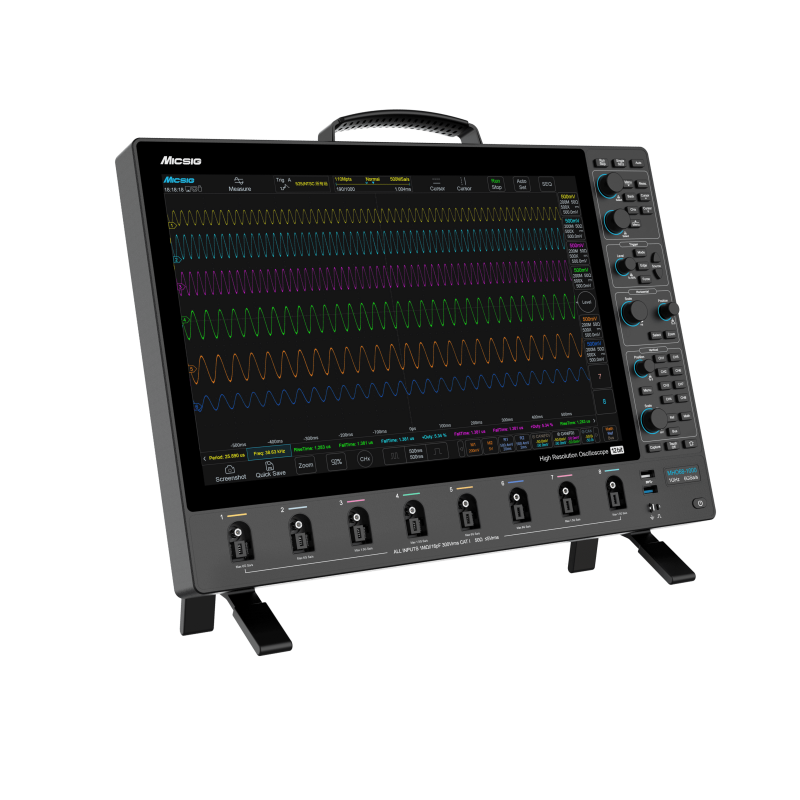

Micsig MHO68-350 - 8-channel 350 MHz oscilloscope
ID: 1199314
zł55,681.04
Tax included
zł45,269.14 tax excl.
Micsig MHO68-350 is a high-resolution 12-bit oscilloscope with 350 MHz bandwidth and 8 channels, designed for advanced signal measurements in research and development, educational, and industrial applications. Its integrated 16" display, segmented 1800 Mpts memory, and wide range of protocol decoders ensure measurement versatility and precision.
Description
The MHO68-350 is a tablet oscilloscope from Micsig's MHO6 series, combining 12-bit precision with high measurement performance. It offers 350 MHz bandwidth, real-time sampling up to 6 GSa/s, and acquisition memory up to 1800 Mpts. Equipped with 8 independent analog channels, it enables simultaneous measurement of multiple signals—essential for analyzing multi-channel circuits and complex systems. The device features an ultra-thin design (only 3.52 cm) and a large 16-inch touchscreen with 1920×1200 resolution, delivering exceptional image quality and ease of use. It supports advanced math functions, FFT, serial bus decoding, remote control via mobile app or PC, and SCPI commands.
Features
- Model: MHO68-350
- Bandwidth: 350 MHz
- Analog channels: 8
- Sampling rate: 6 GSa/s
- Memory depth: 1800 Mpts
- Vertical resolution: 12-bit
- Input impedance: 1 MΩ / 50 Ω
- Display: 16" TFT LCD, 1920×1200 px, touchscreen
- Dimensions: 443 × 307 × 35.2 mm
- Operating system: Android
- Connectors: USB 3.0, USB-C, LAN, HDMI, BNC, Trigger Out
- Power supply: 12 V DC external adapter
- Supported protocols: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B
- Functions: advanced math, FFT, digital filtering, segmented data acquisition, CSV/WAV/BIN saving, screenshots, video recording
- Data management: 256 GB internal memory
- Communication: mobile app, PC remote control, SCPI
1199314
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 350 MHz
- Sampling rate
- 6 Gsps
- Memory depth
- 1800 Mpts
- Number of channels
- 8
