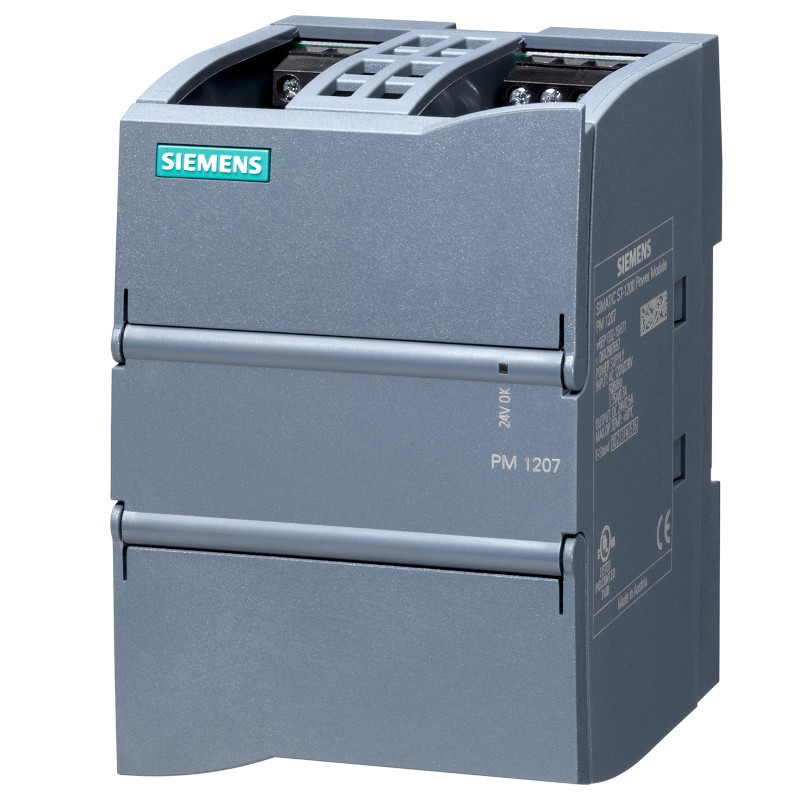

6EP1332-1SH71 – Power supply for Siemens SIMATIC S7-1200 modules, 60W
ID: 561819
5902186326897
zł411.79
Tax included
zł334.79 tax excl.
60 W power supply (24V/2.5A) designed for SIMATIC S7-1200 controllers. DIN rail mounting. Siemens 6EP1332-1SH71
Description
The Siemens SITOP is a high-quality 60 W switching power supply designed specifically for SIMATIC S7-1200 PLCs and other industrial automation systems. With a stable output voltage of 24 V DC / 2.5 A, the device ensures uninterrupted and safe operation in demanding industrial applications.
The power supply supports a wide input voltage range of 120/230 V AC (85…132 V / 176…264 V AC), allowing for flexible use in different network conditions. Additionally, the adjustable output voltage range of 24…28.8 V DC enables precise adaptation to specific system requirements.
Its compact design and the ability to be mounted on a DIN rail or panel make integration with existing infrastructure easy. The IP20 protection rating ensures safe use in standard industrial environments, while an efficiency of 83% guarantees energy savings.
With a wide operating temperature range (0…+60°C) and multiple certifications, including CE, cULus, CB, FM, ATEX, cCSAus Class I Div 2, GL, ABS, and DNV, the Siemens SITOP power supply is an ideal solution for automation, marine, and energy industries.
Features
- Input voltage: 120/230 V AC (Range: 85…132 / 176…264 V AC)
- Hold-up time: >20 ms
- Output voltage: 24 V DC
- Adjustable output voltage range: 24…28.8 V DC
- Output current: 2.5 A
- Output voltage tolerance: ±3%
- Efficiency: 83%
- Protection rating: IP20 (according to EN 60529)
- Operating temperature range: 0…+60°C
- Dimensions: 70 x 100 x 75 mm
- Weight: 0.3 kg
- Certifications: CE, cULus, CB, FM, ATEX, cCSAus Class I Div 2, GL, ABS, DNV
- Mounting: DIN rail or panel mounting
561819
Data sheet
- Output voltage
- 24V
- Output current
- 2.5A
- Power
- 60W
Manufacturer SIEMENS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Żupnicza 11 03-821 Warszawa Poland reklamacje.ebok.pl@siemens.com
Responsible person SIEMENS SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ Żupnicza 11 03-821 Warszawa Poland reklamacje.ebok.pl@siemens.com
