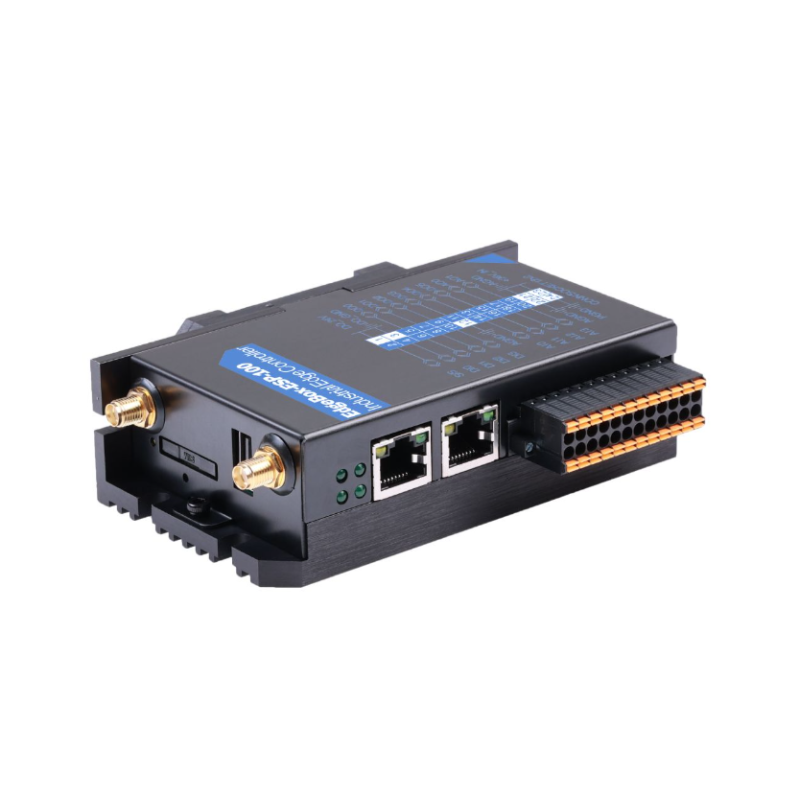

Versatile communication module based on the ESP32 microcontroller, designed for industrial automation and as an IoT gateway for PLCs. It supports fieldbus standards such as CAN and RS485, as well as wireless technologies Wi-Fi, BLE and 4G LTE, which enables integration with industrial networks and the cloud. Thanks to its rugged design and support for programming in ESP-IDF, the EdgeBox-ESP-100 is suitable for remote control and monitoring in harsh industrial environments. Seeed Studio 102991735

24h
Available
Available quantity: 1
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

EdgeBox-ESP-100 is a lightweight, multifunctional communication module based on the powerful ESP32 microcontroller, designed for modern industrial applications and IoT systems. The device functions both as a standalone PLC controller and as an industrial gateway, enabling integration with existing automation systems. With support for Fieldbus protocols such as CAN and RS485, as well as an Ethernet interface, the module is perfectly suited for complex communication networks. In addition, built-in wireless connectivity modules Wi-Fi, Bluetooth 5.0 BLE, and 4G LTE provide easy cloud access and remote monitoring. EdgeBox-ESP-100 enables fast IoT system deployment and flexible communication management between devices.


The device is designed to operate in harsh environments, offering surge and short-circuit protection as well as a wide operating temperature range. The industrial-grade construction ensures reliability and long-term operation even in demanding conditions. The module supports programming via the ESP-IDF framework, and future support for IEC 61131-3 programming standards is planned, further increasing its versatility. With a large number of digital and analog inputs and outputs, it can integrate with a wide range of sensors, actuators, and control systems. The built-in RTC ensures precise time management for synchronization-demanding applications. The presence of the Atecc608a encryption chip (optional) enhances data transmission security in industrial projects.

EdgeBox-ESP-100 is an ideal solution for automation system designers seeking both high performance and versatility. Its compact design allows easy installation in control cabinets and integration with existing infrastructure. Power supply ranging from 10.8 to 36 V ensures flexibility in various industrial applications. RoHS, CE, FCC, and UKCA certifications guarantee compliance with international quality and safety standards. EdgeBox-ESP-100 is well-suited for remote control, monitoring, process management, and applications requiring stable and fast communication.

Features

  • CPU: ESP32S3
  • Memory: 512 KB + 8 MB RAM, 16 MB Flash
  • Wireless connectivity:
    • WiFi: 2.4 GHz
    • Bluetooth: Bluetooth 5.0, BLE
    • Cellular: 4G - SIMCom LTE Cat 1 A7670G module
    • LoRa (optional, can be soldered instead of 4G)

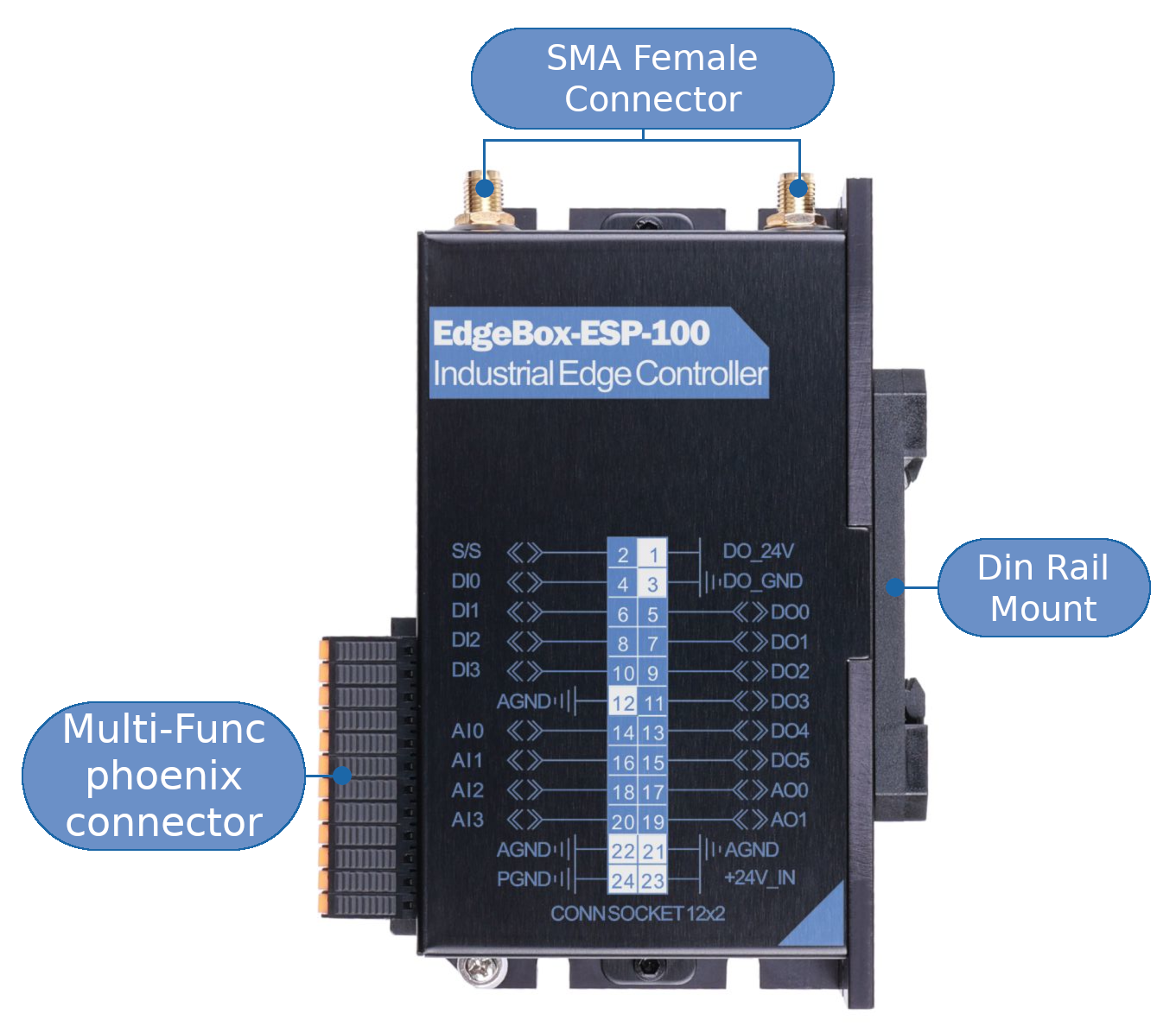

  • Interfaces:
    • Ethernet: 100M RJ45
    • USB: USB 2.0 A
    • CAN BUS: CAN BUS
    • RS485: RS485
    • Digital inputs: 4 (isolated), input voltage DC: 24 V
    • Digital outputs: 6 (isolated), recommended voltage: 24 V
    • Analog inputs: 4 (isolated), default: 0 to 20 mA, optional: 0 to 10 V
    • Analog outputs: 2 (isolated), output: 0 to 5 V
  • Power supply: 10.8 to 36 V
  • RTC (Real-Time Clock)
  • Encryption chip: Atecc608a (optional)
  • Operating temperature: -20 to +60°C
  • Certifications: RoHS, CE, FCC, UKCA
  • Dimensions: 124 x 92 mm
