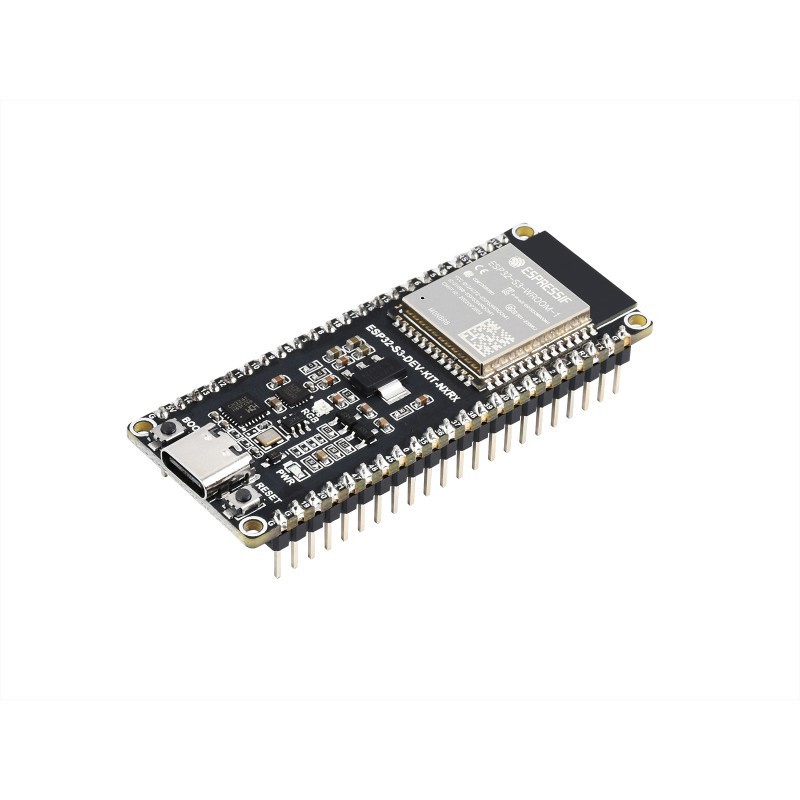

ESP32-S3-DEV-KIT-N16R8-M development board with ESP32-S3 WiFi module and 16 MB flash - Waveshare 28836
ID: 1197037
5906623499045
zł48.12
Tax included
zł39.12 tax excl.
A powerful development board based on the ESP32-S3-WROOM-1 microcontroller, offering a dual-core Xtensa LX7 processor with a frequency of up to 240 MHz, which enables support for advanced AIoT and IoT applications. The board is equipped with 16MB Flash and 8MB PSRAM, which allows for storing larger applications and efficient real-time data processing. With built-in 2.4GHz Wi-Fi, Bluetooth 5.0 LE and easy connection via USB-C, it is an ideal solution for the development of smart devices, sensors and automation systems. Waveshare ESP32-S3-DEV-KIT-N16R8-M
Description
Waveshare ESP32-S3-DEV-KIT with 16MB Flash is an advanced development board based on the ESP32-S3-WROOM-1 microcontroller, which features a dual-core Xtensa LX7 processor running at up to 240 MHz. This makes the microcontroller capable of handling demanding applications, including those related to AIoT, IoT, wireless devices, and automation systems. The built-in 2.4GHz Wi-Fi and Bluetooth 5.0 LE ensure stable and fast wireless communication, making the board an ideal solution for smart devices, sensors, robotics, and many other applications.
The board offers 16MB of Flash memory, providing ample space to store application code and user data, making it ideal for more complex projects. Additionally, it features 8MB of PSRAM, enhancing the ability to process large amounts of data in real-time. With a USB-C port and CH343 and CH334 ICs, the board supports easy USB and UART communication, simplifying the programming and debugging process. The board is also compatible with popular development environments such as ESP-IDF, Arduino, and MicroPython, providing users with a wide range of tools to work with.
Onboard, the board includes numerous pins that provide great flexibility for connecting external modules, allowing for easy expansion of your project. With support for low power consumption and advanced power-saving modes, the board is perfect for battery-powered applications. Additionally, thanks to the use of solderless connectors, the board can be easily soldered directly to printed circuit boards, enabling further miniaturization of the project. This board not only offers high computational power but also provides great flexibility and expandability, making it an excellent solution for advanced electronic projects.
Features
- 32-bit dual-core Xtensa 32-bit LX7 processor at 240 MHz
- Integrated 512 kB SRAM, 384 kB ROM, 16 MB Flash, 8 MB PSRAM
- Wi-Fi 2.4 GHz — 802.11b/g/n
- Bluetooth LE 5, Bluetooth Mesh
- PCB antenna
- 3.3V voltage regulator
- Optimized power management system for low energy consumption
- Power supply: USB Type-C
- USB-UART CH343P converter and HUB controller CH334F
- Built-in USB OTG Full-Speed interface, LCD interface (8-bit serial RGB/8080/6800), camera DVP interface (8-bit - 16-bit)
- 45 GPIO pins, including 3 x UART, 4 x SPI, 2 x I2C, PWM, 12-bit ADC, 14 x touch, 2 x I2S
- Pin spacing compatible with ESP32-S3-DevKitC-1 modules
- Dimensions: 63.3 x 25.4 mm
