ESP32-S3-Touch-LCD-4 is a versatile development board featuring a 4-inch touchscreen and the ESP32-S3 microcontroller, offering high processing power, wireless communication support, and a wide range of interfaces. The touch panel, LVGL-based GUI, multiple connectors, and support for various power sources make it an excellent solution for interactive and control applications in embedded systems and automation.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

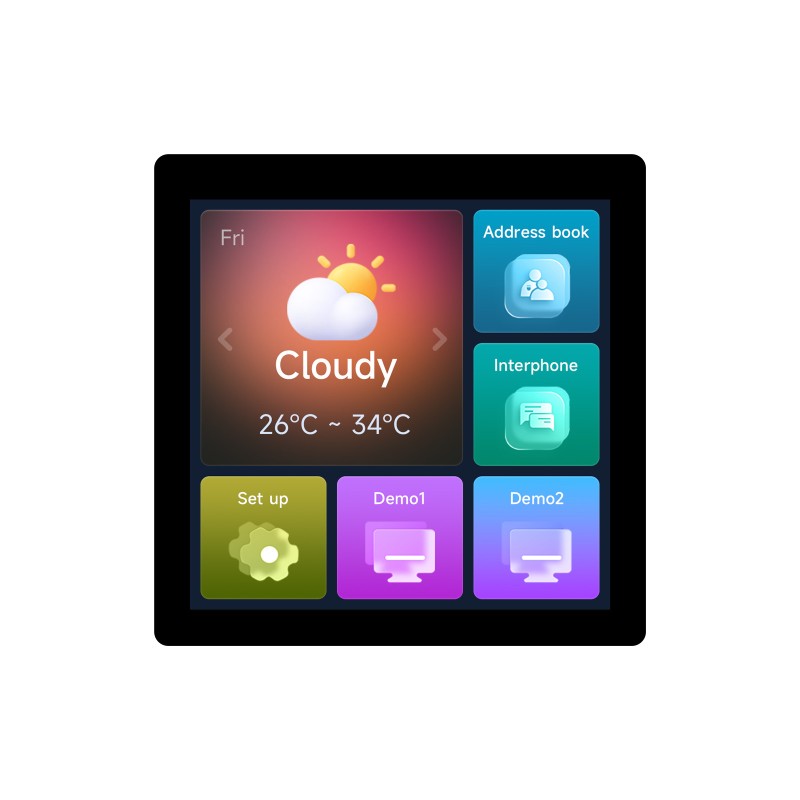

ESP32-S3-Touch-LCD-4 is an advanced development board featuring the ESP32-S3N16R8 microcontroller and a 4" IPS display with a 480×480 resolution and a 5-point capacitive touch panel. The main unit is powered by a dual-core Xtensa LX7 processor running at up to 240 MHz, and integrates 8 MB of PSRAM and 16 MB of Flash memory. It supports 2.4 GHz Wi-Fi and Bluetooth 5 LE connectivity, making it ideal for HMI applications, control systems, interactive panels, smart home gateways, and industrial automation devices.

The board includes a range of communication interfaces such as CAN, RS485, I2C, and USB, along with a TF card slot and connectors for battery power. GUI support (e.g. LVGL), DIN rail mounting capability, and flexible wiring options (via rear and bottom screw terminals) ensure easy integration into target solutions.

Specifications

  • Processor: Xtensa 32-bit LX7 dual-core, up to 240 MHz
  • Memory: 512 KB SRAM, 384 KB ROM, 16 MB Flash, 8 MB PSRAM
  • Connectivity: Wi-Fi 802.11 b/g/n 2.4 GHz, Bluetooth 5 LE (onboard antenna)
  • Display: 4" IPS, 480×480, 65K colors, 160° viewing angle
  • Touch panel: capacitive, 5-point, I2C interface (Touch version only)
  • Interfaces: CAN, RS485, I2C, USB, TF card slot
  • Power supply options: USB Type-C (5 V), DC jack 7–36 V, PH2.0 for 3.7 V Li-Ion battery
  • Additional components: RTC PCF85063, buzzer, BOOT/RESET/PWRKEY buttons
  • Dimensions: 84.2 × 84.2 mm (Touch version)
  • Software support: GUI (e.g. LVGL), SDK, C/C++, MicroPython
  • Operating temperature: 0°C ~ 65°C

Included in the set

  • ESP32-S3-Touch-LCD-4 module ×1
  • 10-pin screw terminal (back wiring) ×1
  • 10-pin screw terminal (bottom wiring) ×1
