New products
New products
zł397.36 tax excl.
Module with a 4-inch touch display that uses two MCU systems (ESP32-S3 and RP2040) and supports Wi-Fi, BLE and LoRa communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices using a rich set of GPIOs. Seeed Studio 114993071
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

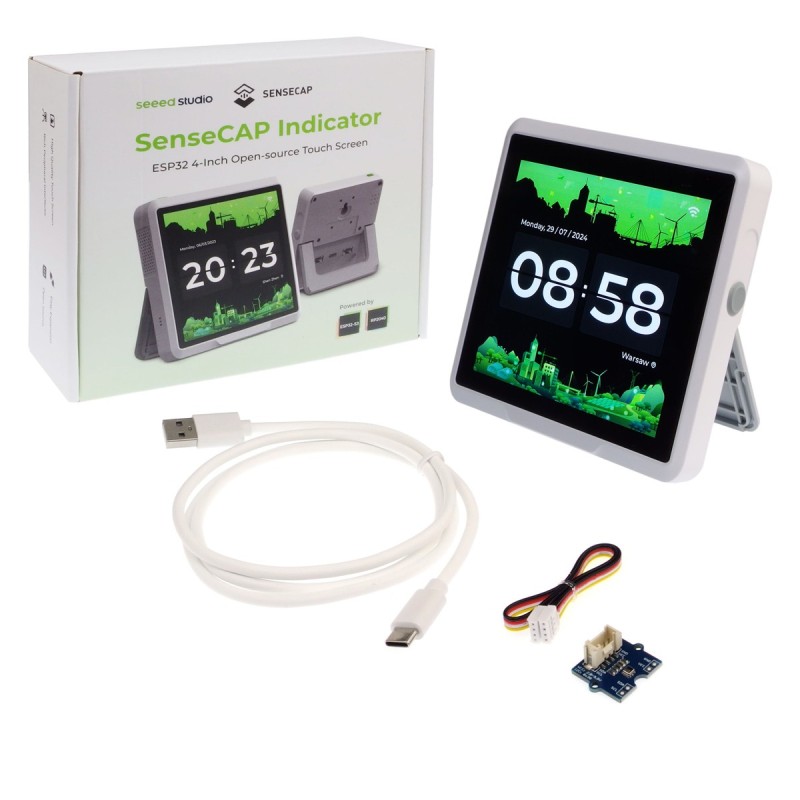

SenseCAP Indicator is a module with a 4-inch touch display that uses two MCUs (ESP32 and RP2040) and supports Wi-Fi, BLE and LoRa communication. The board is equipped with USB Type C, I2C (Grove) and analog inputs interfaces and can easily connect to other peripheral devices using a rich set of GPIOs.
It has built-in tVOC and CO2 sensors and an external Grove AHT20 temperature and humidity sensor. The SX1262 module allows you to build a LoRa application and connect sensors to the cloud via Wi-Fi. For example, it allows you to build a hub and connect sensors to the smart home ecosystem and deploy Matter via Wi-Fi.
SenseCAP Indicator is a fully open IoT platform for developers. It will be used in applications for monitoring air quality, home weather stations and smart homes. Comprehensive ODM Fusion is also available for customization and rapid scaling for popular open source hardware platforms such as Raspberry Pi, NVIDIA Jetson, Beagleboard, ESP32 and more. Full documentation is available on the product page.
Features
- 3.95" display, capacitive touchscreen
- Screen resolution 480 x 480 pixels
- Power supply 5V DC, 1A
- ESP32-S3 module: dual-core 32-bit Xtensa® LX7 microprocessor, up to 240 MHz
- RP2040 microcontroller: Dual ARM Cortex-M0+ up to 133 MHz
- Flash memory:
- ESP32S3: 8MB
- RP2040: 2MB
- Support for external memory up to 32 GB Micro SD card
- Wi-Fi 802.11b/g/n, 2.4 GHz
- Bluetooth Bluetooth 5.0 LE
- LoRa®(SX1262) LoRa®WAN/(G)FSK, maximum transmit power sensitivity 21 dBm/-136 dBm at SF12 BW=125 kHz RX sensitivity, up to 5 km
- Built-in CO2 sensor (SCD41):
- Range: 0-40000 ppm
- Accuracy: 400 ppm - 5000 ppm ±(50 ppm + 5% of reading)
- Built-in TVOC sensor (SGP40)
- Range: 1-500 ppm VOC
- External temperature and humidity sensor:
- Temperature measurement range: -40 to 85℃/±0.3℃
- Humidity measurement range: 0 to 100% RH / ± 2% RH (25 ℃)
- MLT-8530 buzzer
Kit contains
- SenseCAP Indicator
- USB Type-C Cable (1m)
- Grove AHT20 TH sensor
