ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
search
  • ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
  • ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
  • ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
  • ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
  • ESP32-P4-NANO-KIT-B development board with Wi-Fi 6, Bluetooth 5, speaker, and PoE - Waveshare 29028
ID: 1197472
zł113.92
Tax included

zł92.62 tax excl.

The ESP32-P4-NANO-KIT-B set is a high-performance development tool designed for building advanced IoT devices, user interfaces, and edge data processing systems. With support for PoE and wireless connectivity via Wi-Fi 6 and Bluetooth 5, the product offers integration flexibility and a high level of reliability in demanding application environments. Particularly recommended for prototyping HMI devices, IoT gateways, and communication nodes.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-NANO-KIT-B is a compact development kit based on the ESP32-P4 microcontroller, featuring RISC-V cores (dual-core and single-core), 32 MB of PSRAM, and 16 MB of Flash memory. The board is designed for HMI applications, IoT systems, and edge computing, offering high performance, a wide range of interfaces, and support for advanced security features. The kit includes a PoE module for Ethernet power supply, an 8 Ω 2 W speaker, and a mounting screw set.

The included ESP32-C6-MINI-1 module adds support for Wi-Fi 6 (2.4 GHz) and Bluetooth 5/BLE via the SDIO interface, providing stable and fast wireless connectivity. The board features MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, TF card slot (SDIO 3.0), microphone, RTC, and speaker connector interfaces.

Features

  • Microcontroller: ESP32-P4NRW32 – RISC-V (2+1 cores), 768 KB L2MEM, 32 MB PSRAM, 16 MB NOR Flash
  • Communication: ESP32-C6-MINI-1 – Wi-Fi 6, Bluetooth 5/BLE (via SDIO interface)
  • Interfaces: MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet 100 Mbps, SDIO 3.0 (TF card slot)
  • Connectors: microphone, 8 Ω 2 W speaker (MX1.25 2P), RTC, GPIO (2×26 PIN)
  • Power supply: USB Type-C, PoE, external 5 V power connector
  • Security features: Secure Boot, Flash encryption, TRNG, permission separation
  • Support for cameras and displays via MIPI interfaces
  • Compatible with ESP-IDF

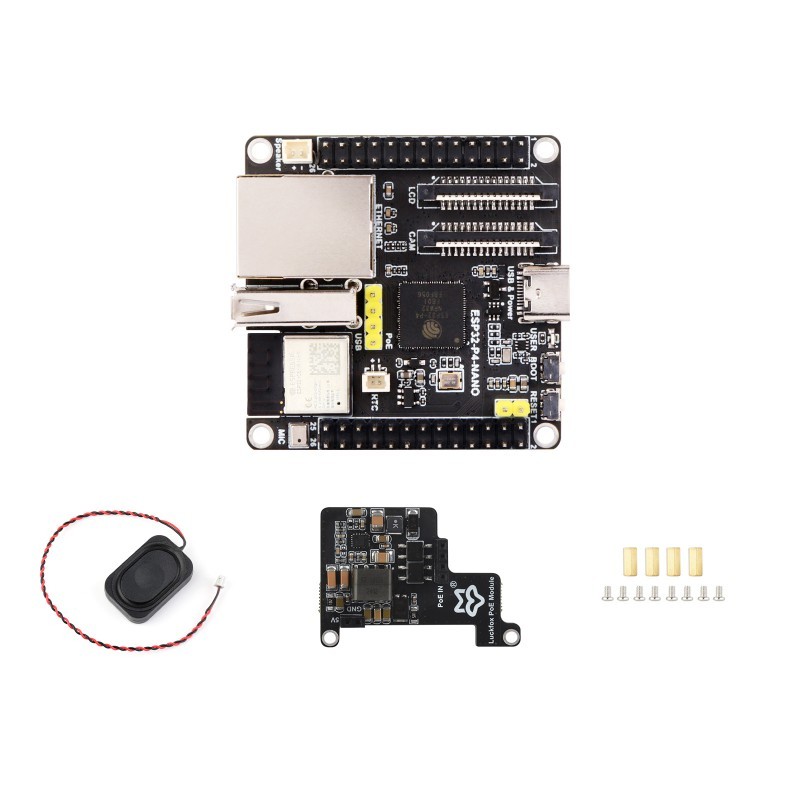

Included in the set

  • ESP32-P4-NANO board x1
  • PoE module x1
  • 8 Ω 2 W speaker x1
  • Mounting screw set x1
1197472

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
