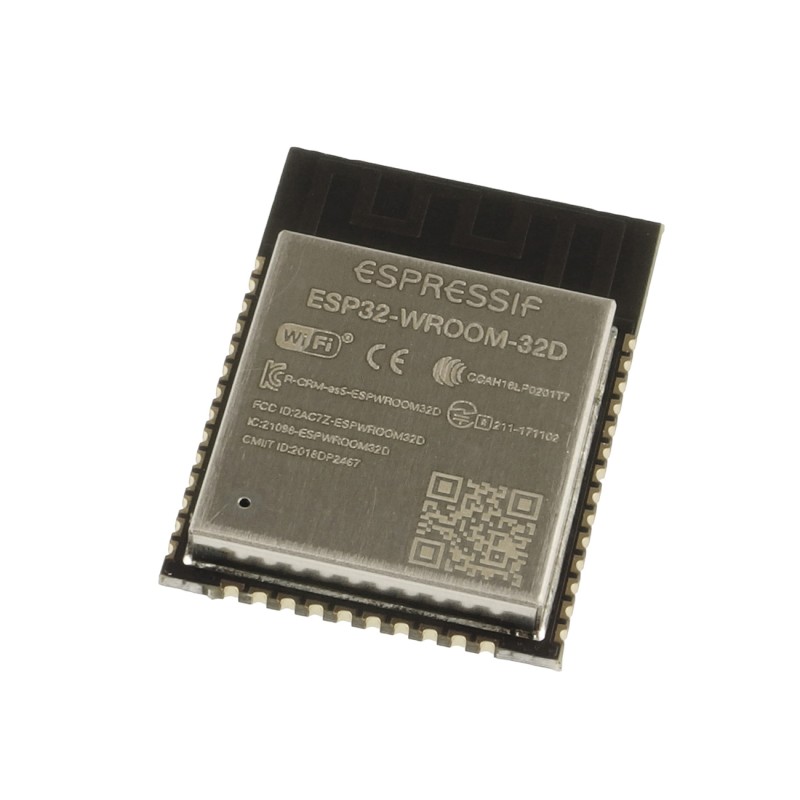

  • Moduł WiFI i Bluetooth ESP-WROOM-32
  • Moduł WiFI i Bluetooth ESP-WROOM-32 (widok z góry)
  • Moduł WiFI i Bluetooth ESP-WROOM-32 (widok z dołu)
ID: 563420
zł39.63
Tax included

zł32.22 tax excl.

The ESP32 WiFi and Bluetooth module has a dual-core 32-bit MCU that integrates WiFi HT40 and Bluetooth / BLE 4.2 technology. Designed for mobile devices and Internet of Things (IoT) applications. DFRobot TEL0111

24h
Available
Available quantity: 3
Kamami is the official distributor of DFRobot modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Descritpion

ESP-WROOM-32 is the latest Espressif ESP32 WiFi and Bluetooth module. It has a dual-core 32-bit MCU that integrates WiFi HT40 and Bluetooth / BLE 4.2 technology. ESP32 is equipped with a high-performance Tensilica LX6 dual-core microprocessor. One core supports high speed connection and the other core is used to support user applications.The dual-core MCU has a 240 MHz frequency and 600 DMIPS computational power. The system integrates many peripheral devices, including capacitive touch sensors, Hall sensors, low noise amplifiers, SD card interfaces, Ethernet interfaces, fast SDIO / SPI, UART, I2S and I2C, etc. ESP32 has been designed for mobile devices and Internet of Things (IoT) applications. In addition, ESP32 achieves very low energy consumption. The module has an integrated antenna.

Features

  • Processor and memory
    • Dual-core 32-bit Xtensa® LX6 microprocessor, up to 600 DMIPS
    • 448 KB of ROM
    • 520 KB SRAM
    • 16 KB SRAM in RTC
    • QSPI Flash / SRAM, up to 4 x 16 MB
    • Power supply: 2.2 ... 3.6 V<?li>
  • Clocks and Timers
    • Internal 8 MHz oscillator with calibration
    • Internal RC oscillator with calibration
    • External quartz oscillator from 2 MHz to 40 MHz
    • External quartz oscillator 32 kHz for RTC with calibration
    • Two timer groups, including 2 x 64-bit timers and 1 x main watchdog
    • RTC clock with the accuracy of one second
    • RTC watchdog<?li>
  • Advanced Peripheral Interfaces
    • 12-bit SAR ADC for 18 channels
    • 2 × 8-bit D / A converters
    • 10 x touch sensors
    • Temperature sensor
    • 4 × SPI
    • 2 × I2S
    • 2 × I2C
    • 3 × UART
    • 1 host (SD / eMMC / SDIO)
    • 1 slave (SDIO / SPI)
    • Ethernet MAC interface with dedicated support for DMA and IEEE 1588
    • CAN 2.0
    • IR (TX / RX)
    • PWM motor
    • LED PWM up to 16 channels
    • Hall sensor
    • Analog preamplifier with very low power
  • Development Support
    • SDK Firmware for fast programming on-line
    • Open toolchains based on GCC
  • Operating temperature range: -40°C to +85°C
  • Dimensions: 18mm x 25mm x 3mm
563420

Data sheet

Logic voltage
3,3 V
Wi-Fi chip
ESP32
Wi-Fi standard
802.11 b/g/n
Frequency range
2,4 GHz
Baud rate
150 Mbps
Antenna connector
Brak
Power supply voltage
2,2 - 3,6 V
