zł58.70 tax excl.

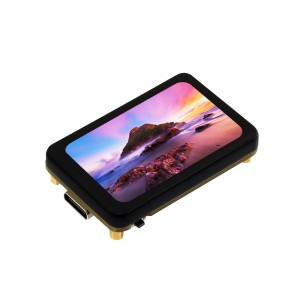

ESP32-C6-LCD-1.9 is a compact and energy-efficient development board with a 1.9" color LCD display, support for Wi-Fi 6 and Bluetooth 5, designed for HMI projects, mobile systems, and IoT devices. The version without a touch panel allows for rapid implementation of graphical user interfaces while maintaining a simplified hardware design. Thanks to full compatibility with the Raspberry Pi Pico pinout, it enables easy expansion with additional modules and functions.
Description
Development board with the ESP32-C6FH8 microcontroller featuring a single-core 32-bit RISC-V processor running up to 160 MHz and 8 MB of Flash memory. The integrated 1.9" LCD display with a resolution of 170×320 pixels is based on the ST7789V2 controller and supports 90° hardware image rotation. Version without a touch panel. Supports wireless communication via Wi-Fi 6 (802.11 ax/b/g/n) and Bluetooth 5 (LE and Mesh). The compact design also includes a 6-axis QMI8658 IMU sensor, TF card slot, 3.7 V lithium battery connector, and USB Type-C port.
The board is compatible with the Raspberry Pi Pico pin layout, enabling easy integration with existing extensions. Support for ESP-IDF and Arduino IDE environments and access to SDKs and examples make it easy to get started with the platform.
Features
- ESP32-C6FH8 microcontroller with single-core 32-bit RISC-V processor, up to 160 MHz
- Flash memory: 8 MB
- Supports Wi-Fi 6 (802.11 ax/b/g/n, 2.4 GHz), Bluetooth 5 (LE and Mesh)
- 1.9" LCD display, 170×320 px, 262K colors, brightness 500 cd/m², contrast 900:1
- Display controller: ST7789V2, SPI interface
- No touch panel (non-touch version)
- QMI8658 sensor – 6-axis IMU (accelerometer and gyroscope)
- USB Type-C port for power, programming, and debugging
- TF card slot for data or graphics storage
- MX1.25 connector for 3.7 V lithium battery (charging/discharging)
- Integrated ceramic Wi-Fi antenna
- IPEX1 connector available only in the touch version
- WS2812 RGB LEDs (only in the non-touch version)
- Compatible with Raspberry Pi Pico pinout
