ESP32-S3-Touch-LCD-3.5B-C is a complete development system with an IPS display, camera, and wireless connectivity, designed for interactive applications involving voice, image, and touch. Intended for advanced IoT projects, smart terminals, control panels, and offline AI applications.

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

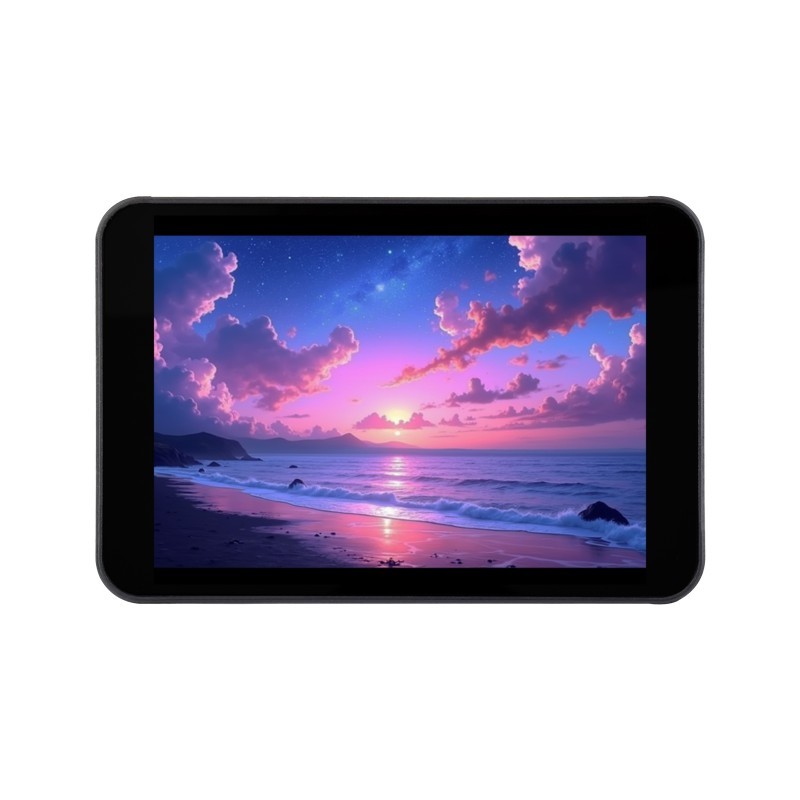

ESP32-S3-Touch-LCD-3.5B-C is an enhanced development board based on the ESP32-S3R8 chip, featuring a 3.5-inch IPS touchscreen, OV5640 camera, and integrated enclosure. Powered by a dual-core Xtensa LX7 processor running at up to 240 MHz, it supports 2.4 GHz Wi-Fi, Bluetooth 5 (LE), and includes a 6-axis accelerometer and gyroscope. The board is equipped with 8 MB PSRAM, 16 MB Flash, a power management unit (AXP2101), and an ES8311 audio codec. The 320×480 px capacitive touchscreen enables the development of interactive applications. With its integrated camera and microphone, the module supports image and voice recognition, making it ideal for IoT, HMI, and smart device applications.

Features

  • Microcontroller: ESP32-S3R8 (Xtensa LX7, dual-core, 240 MHz)
  • Connectivity: Wi-Fi 802.11b/g/n (2.4 GHz), Bluetooth 5 LE, Mesh
  • Memory: 512 KB SRAM + 384 KB ROM, 8 MB PSRAM, 16 MB Flash
  • Display: 3.5″ IPS, 320×480 px, 262K colors
  • Brightness: 210 cd/m²
  • Contrast: 1000:1
  • LCD controller: AXS15231B (QSPI), Touch controller: FT3168 (I²C)
  • Touch: capacitive
  • Camera: OV5640 5 MP
  • Audio: ES8311 codec, microphone, speaker output (MX1.25)
  • Sensors: QMI8658 (3-axis accelerometer + 3-axis gyroscope)
  • RTC: PCF85063 with battery backup
  • Connectors: USB-C, microSD (TF), camera, RTC backup, GPIO, battery input (MX1.25 3.7 V)
  • Power management: AXP2101
  • Supported environments: ESP-IDF, Arduino IDE
