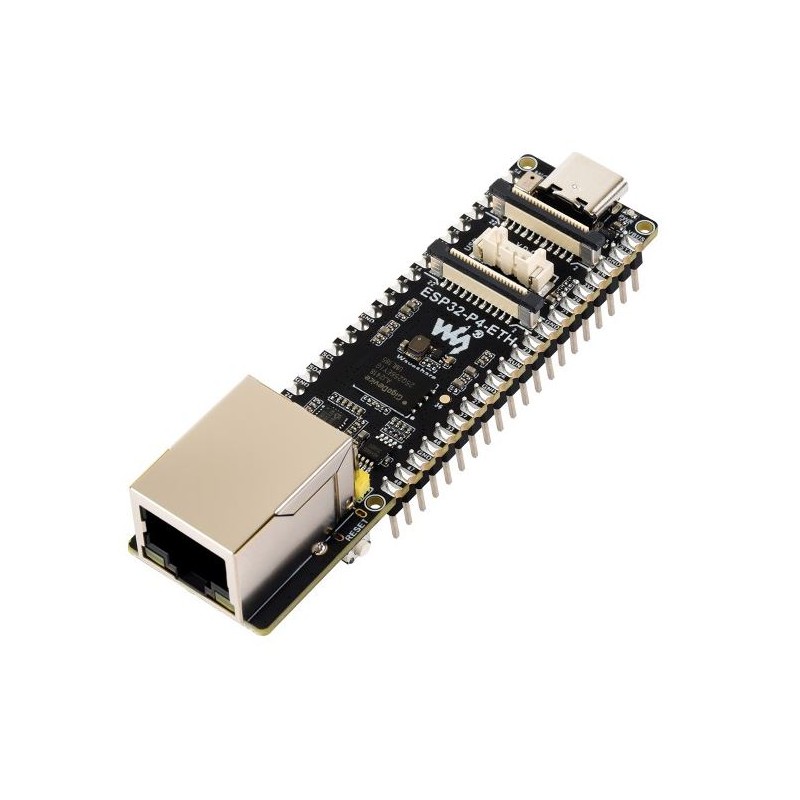

Main view
search
  • Main view

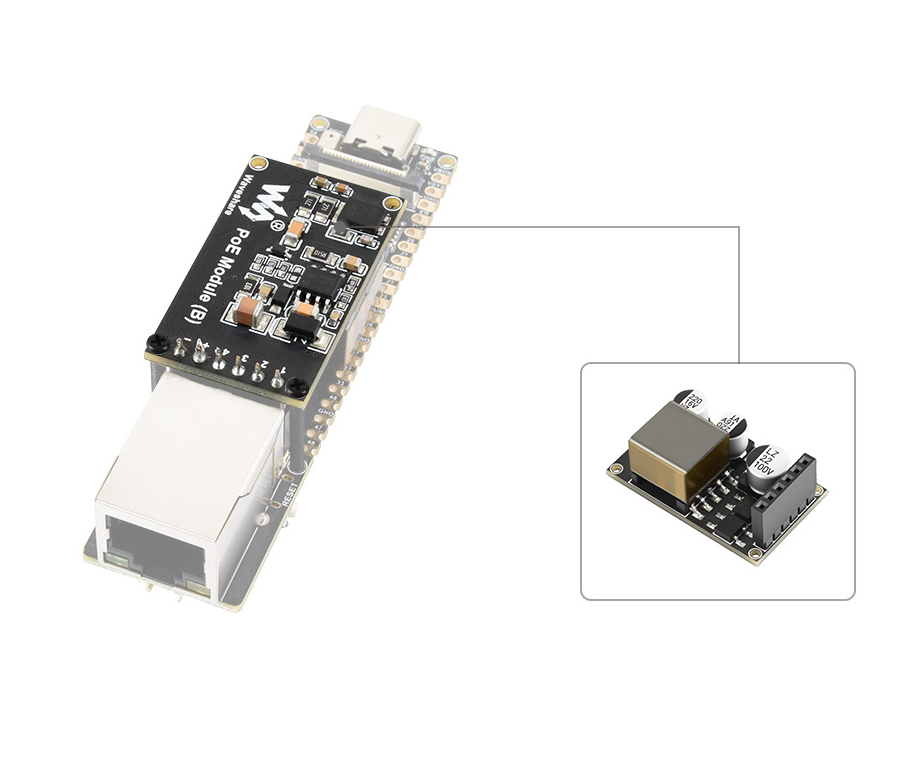

  • PoE module
  • Angled view - front of the board
  • Angled view - back of the board
  • Bottom view
  • Development board dimensions
ID: 1200126
zł82.43
Tax included

zł67.02 tax excl.

A development board based on the high-performance ESP32-P4 microcontroller, equipped with a 100 Mbps Ethernet port and support for PoE (Power over Ethernet). This version includes the ESP32-P4-ETH-M board together with a PoE module and is intended for integration in HMI projects, edge computing applications, and IoT systems requiring wired network communication. Waveshare ESP32-P4-POE-ETH

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-POE-ETH development board has been designed as a compact hardware platform for applications requiring high computational performance, stable network communication, and advanced multimedia interfaces. At the core of the solution is the ESP32-P4 microcontroller with a dual-core 32-bit RISC-V architecture, offering advanced capabilities for data, image, and audio processing.

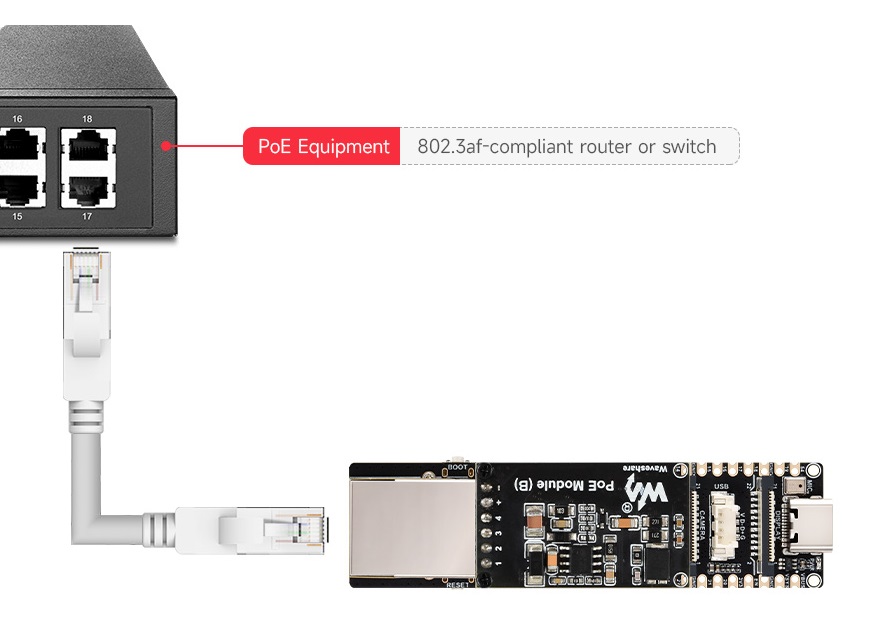

The board is equipped with a 100 Mbps RJ45 Ethernet port and supports PoE power supply, enabling simultaneous data transmission and power delivery over a single Ethernet cable. Alternatively, the board can be powered via the USB Type-C port, which is also used for programming.

Onboard interfaces include MIPI-CSI for connecting cameras, MIPI-DSI for driving displays, USB OTG 2.0 High Speed, and a TF (microSD) card slot. This variant does not include a camera, speaker, or additional accessories, allowing flexible hardware configuration tailored to specific application requirements.


  1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
  2. 100M RJ45 Ethernet port
  3. 32MB Nor Flash
  4. Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
  5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. Type-C port - for power supply, program burning
  7. Onboard microphone
  8. Speaker header - MX1.25 2P connector, supports 80 2W speaker
  9. 4PIN USB header - USB OTG 2.0 High Speed interface
  10. PoE module & power supply header
  11. BOOT button - Press it when powering on or resetting to enter download mode
  12. RST Reset button
  13. Power indicator
  14. TF card slot - SDIO 3.0 interface protocol

Features

  • Microcontroller: ESP32-P4
  • Architecture: 32-bit RISC-V, dual-core
  • PSRAM: 32 MB (integrated in ESP32-P4NRW32)
  • Flash memory: 32 MB NOR
  • Internal memory: 128 kB HP ROM, 16 kB LP ROM, 768 kB HP L2MEM, 32 kB LP SRAM, 8 kB TCM
  • Network connectivity: RJ45 Ethernet 100 Mbps
  • USB: USB Type-C (power and programming), USB OTG 2.0 High Speed
  • Multimedia interfaces:
  • MIPI-DSI (2-lane) – DSI display interface
  • MIPI-CSI (2-lane) – camera interface
  • Integrated ISP, hardware H.264 encoder, JPEG codecs, PPA (Pixel Processing Accelerator)
  • Audio: onboard microphone, MX1.25 speaker connector (8 Ω / 2 W)
  • External storage: TF (microSD) card slot, SDIO 3.0
  • GPIO: 2 × 20-pin headers, 27 programmable GPIOs
  • Security: Secure Boot, Flash Encryption, cryptographic accelerators, TRNG, hardware privilege separation
  • Power supply: USB Type-C, PoE support
  • Applications: HMI, edge computing, edge AI, industrial automation, IoT systems

Kit includes

  • ESP32-P4-ETH-M development board – 1 pc
  • PoE module – 1 pc
  • Mounting screws set – 1 pc
