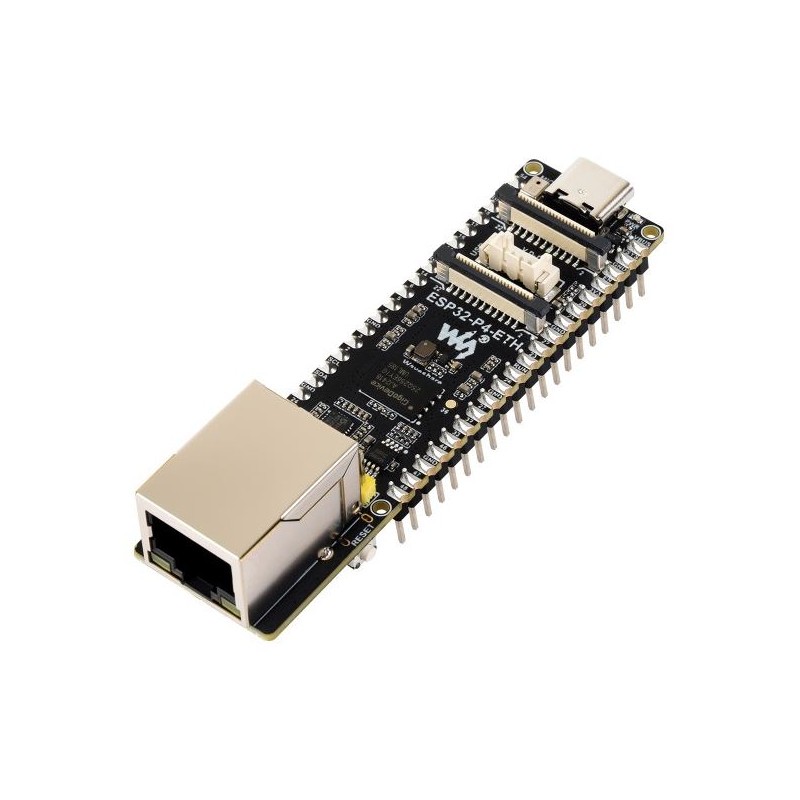

Main view
search
  • Main view
  • Top view
  • Bottom view
  • Angled front view
  • Angled rear view
  • Board dimensions
ID: 1200127
zł69.03
Tax included

zł56.12 tax excl.

Development board based on the high-performance ESP32-P4 microcontroller, featuring a 100 Mbps RJ45 Ethernet port and a rich set of multimedia and communication interfaces. The ESP32-P4-ETH-M version includes only the board with factory-soldered pin headers and is intended for standalone integration in HMI, edge computing, and IoT projects. Waveshare ESP32-P4-ETH-M

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The ESP32-P4-ETH-M development board is designed as a compact and flexible hardware platform for applications requiring high computing performance, multimedia processing, and wired network communication. At its core is the ESP32-P4 microcontroller with a dual-core 32-bit RISC-V architecture, offering advanced capabilities for data, image, and audio processing.

The board features a 100 Mbps RJ45 Ethernet port for stable network connectivity, as well as a USB Type-C port used for power supply and programming. It is equipped with 32 MB PSRAM (integrated in the ESP32-P4NRW32 package) and 32 MB NOR Flash, providing sufficient resources for multimedia and compute-intensive applications.

Available interfaces include MIPI-CSI for camera connection and MIPI-DSI for display support, along with USB OTG 2.0 High Speed and a TF (microSD) card slot using the SDIO 3.0 interface.

Factory-soldered pin headers facilitate rapid prototyping and easy integration of the board into development and industrial projects.


  1. ESP32-P4NRW32 - ESP32-P4 chip, with 32MB PSRAM
  2. 100M RJ45 Ethernet port
  3. 32MB Nor Flash
  4. Display interface - MIPI-DSI (2-lane), supports 5/7/8/10.1 inch DSI screens
  5. Camera interface - MIPI-CSI (2-lane), supports OV5647 camera, etc.
  6. Type-C port - for power supply, program burning
  7. Onboard microphone
  8. Speaker header - MX1.25 2P connector, supports 80 2W speaker
  9. 4PIN USB header - USB OTG 2.0 High Speed interface
  10. PoE module & power supply header
  11. BOOT button - Press it when powering on or resetting to enter download mode
  12. RST Reset button
  13. Power indicator
  14. TF card slot - SDIO 3.0 interface protocol

Features

  • Microcontroller: ESP32-P4
  • Architecture: 32-bit RISC-V, dual-core
  • PSRAM: 32 MB (integrated in ESP32-P4NRW32)
  • Flash memory: 32 MB NOR
  • Internal memory: 128 kB HP ROM, 16 kB LP ROM, 768 kB HP L2MEM, 32 kB LP SRAM, 8 kB TCM
  • Network connectivity: RJ45 Ethernet 100 Mbps
  • USB: USB Type-C (power & programming), USB OTG 2.0 High Speed
  • Multimedia interfaces:
    • MIPI-DSI (2-lane) – DSI displays
    • MIPI-CSI (2-lane) – cameras
    • Integrated ISP, hardware H.264 encoder, JPEG codecs, PPA
  • Audio: onboard microphone; MX1.25 speaker connector
  • External storage: TF (microSD) card slot, SDIO 3.0
  • GPIO: 2 × 20-pin headers; 27 programmable GPIOs
  • Security: Secure Boot, Flash encryption, cryptographic accelerators, TRNG, hardware privilege separation
  • Power supply: USB Type-C
  • Assembly: factory-soldered pin headers
  • Applications: HMI, edge computing, edge AI, multimedia, automation, IoT

Kit includes

  • ESP32-P4-ETH-M development board (with pre-soldered pin headers) – 1 pc
