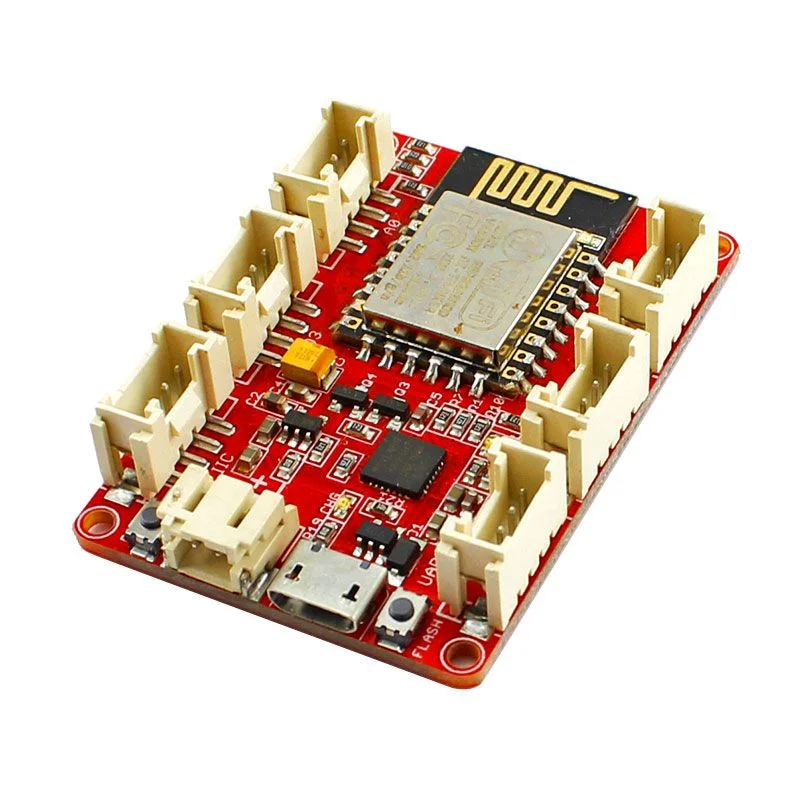

Crowtail – ESP8266 NodeMCU 2.0 – IoT module with WiFi, microUSB, Li-Pol charging and Crowtail interface
ID: 1201701
5902186332072
zł45.15
Tax included
zł36.71 tax excl.
Crowtail – ESP8266 NodeMCU 2.0 is a universal WiFi module for IoT projects with a ready Crowtail interface, microUSB port, and Li-Po battery charging function. It works well in mobile and stationary applications based on Arduino IDE or NodeMCU Lua.
Description
Crowtail – ESP8266 NodeMCU 2.0 is a development module for IoT projects, based on the ESP8266 chip with an 80 MHz clock speed and 4 MB Flash memory. Equipped with six Crowtail connectors, it allows direct connection of compatible modules without the need for additional converters. The board integrates a CP2104 USB–UART converter with automatic reset support, simplifying the code uploading process. Additionally, a socket for a 3.7 V Li-Po battery and a charging circuit with a status LED are provided. The module also operates without a battery, powered via microUSB, with automatic power switching. It is compatible with the Arduino IDE and the NodeMCU environment (the module includes a Lua interpreter by default).
Properties
- Compatibility with the Crowtail system (6 connectors)
- ESP8266 chip, 80 MHz clock speed, 3.3 V logic
- 4 MB Flash memory (32 Mbit)
- Power supply via microUSB or 3.7 V Li-Po battery
- Integrated 100 mA Li-Po charging circuit with status LED
- CP2104 USB–UART converter, up to 921600 bps
- Automatic reset support
- 9 GPIO pins (configurable as I2C/SPI)
- 1 analog input (max. 1.0 V)
- Built-in LEDs on GPIO0 (red) and GPIO2 (blue)
- 3.3 V regulator, 500 mA (peak current)
- RESET button
- Four mounting holes
- Dimensions: 50 × 35 mm
