XIAO ESP32-C5 - WiFi6 5GHz development board - Seeed Studio 100010048
ID: 1203409
zł29.90
Tax included
zł24.31 tax excl.

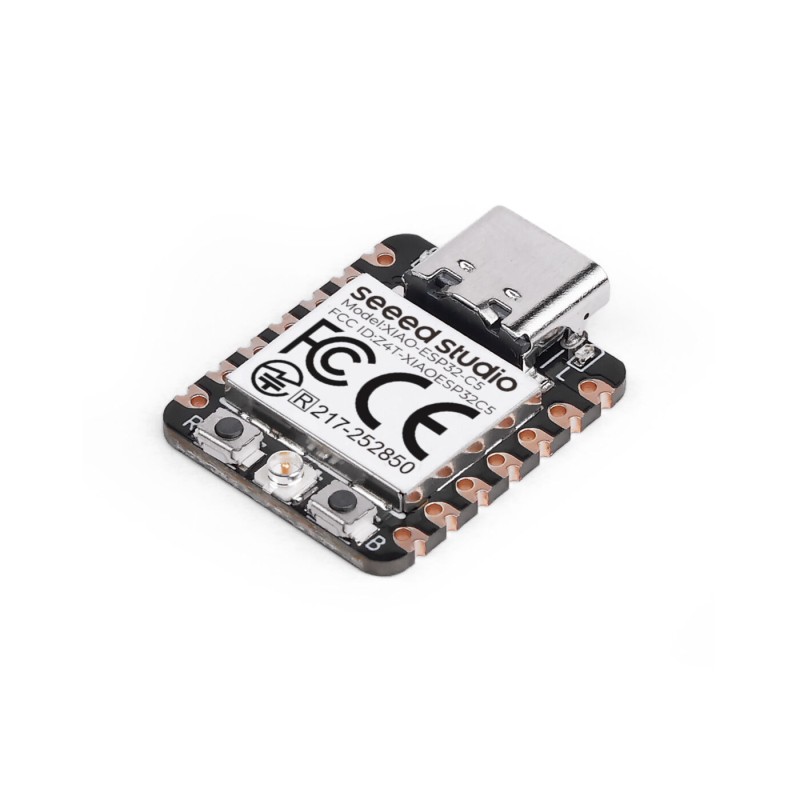

Compact development board based on ESP32-C5 with dual-band WiFi6 2.4GHz and 5GHz, Bluetooth 5 LE, and IEEE 802.15.4, designed for advanced low-power IoT applications. XIAO ESP32-C5
Description
Seeed Studio XIAO ESP32-C5 targets IoT projects that require modern wireless connectivity, high computational performance, and low energy consumption. The onboard ESP32-C5 microcontroller based on the RISC-V architecture supports simultaneous operation in the 2.4GHz and 5GHz WiFi6 bands, enabling stable data transmission in environments with high network density.
The board supports Bluetooth 5 LE and IEEE 802.15.4, allowing implementation of projects compatible with Zigbee, Thread, and IoT protocols such as Matter, HomeKit, and MQTT. Integrated security mechanisms, including secure boot and Flash memory encryption, support firmware and user data protection. The battery interface and very low current consumption in deep sleep mode enable use in battery-powered devices such as sensors, network nodes, and home automation systems.
Features
- Microcontroller: ESP32-C5HR8
- Processor architecture: 32-bit RISC-V
- CPU frequency: up to 240MHz
- Low-power core frequency: up to 48MHz
- SRAM memory: 384KB
- PSRAM memory: 8MB
- Flash memory: 8MB
- WiFi connectivity: 2.4GHz and 5GHz WiFi6 802.11ax
- Bluetooth connectivity: Bluetooth 5 LE
- IEEE 802.15.4 connectivity: Zigbee, Thread
- Supported IoT protocols: Matter, HomeKit, MQTT

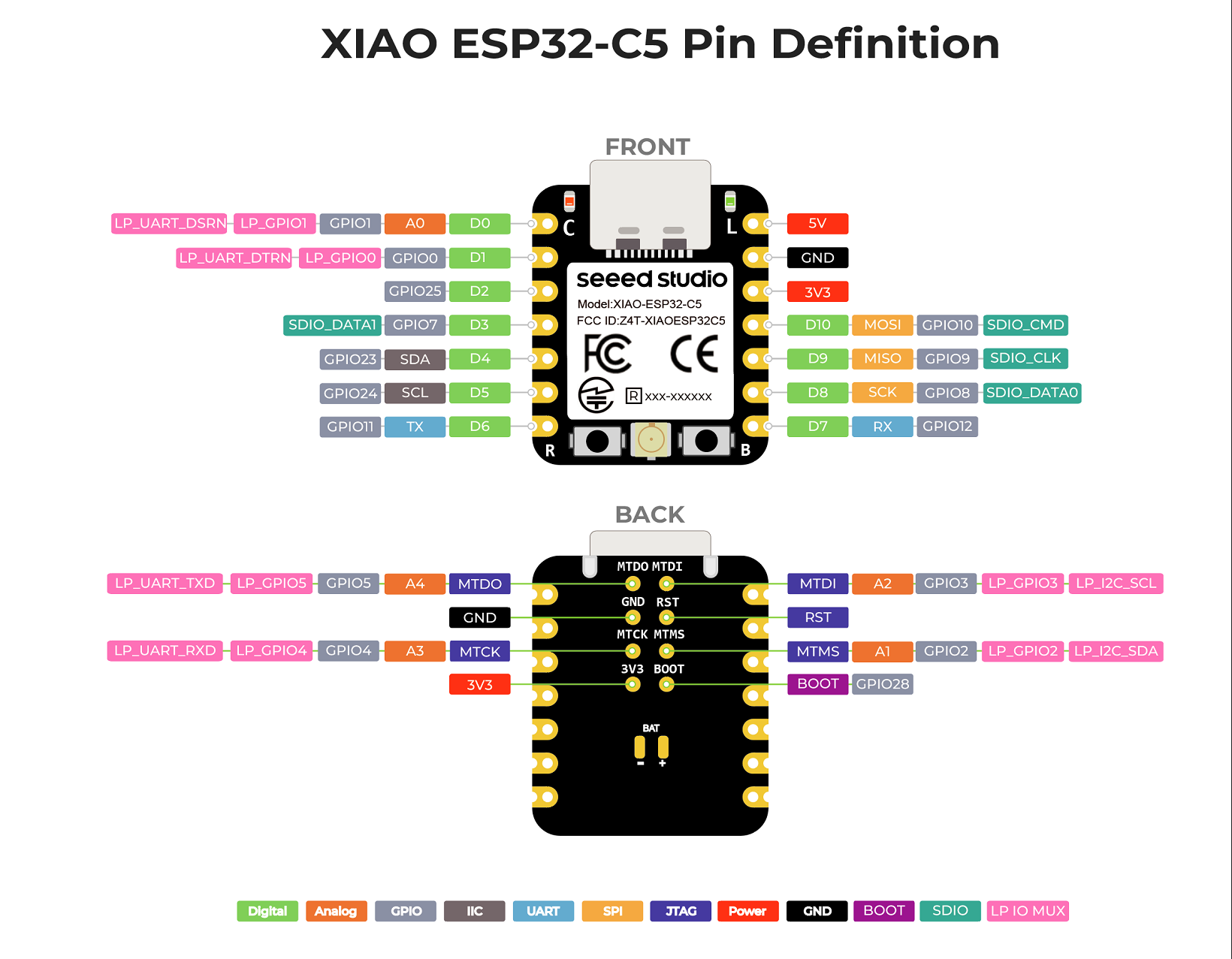

- Interfaces: GPIO, I2C, SPI, UART, JTAG
- Number of GPIO pins: 11
- Power supply: USB-C 5V or 3.7V battery
- Deep sleep current consumption: 15µA
- Operating temperature range: 0°C ~ 85°C
- Dimensions: 21 x 17.8 mm
Kit includes
- Seeed Studio XIAO ESP32-C5 module
- FPC antenna
- Pin headers
