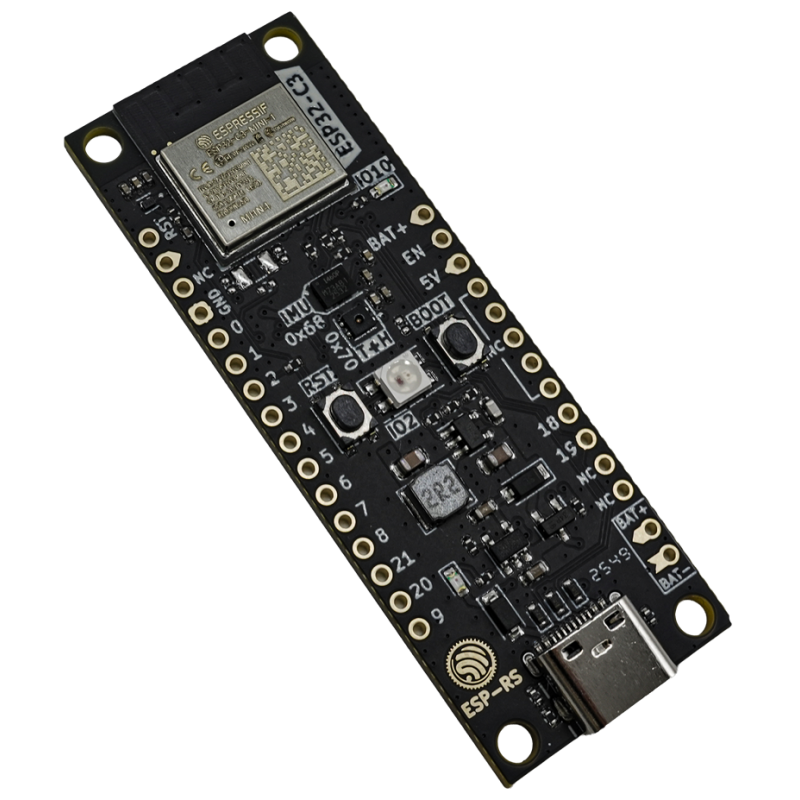

ESP32-C3-DevKit-RUST-2 - development board with ESP32-C3-MINI-1 module
ID: 1206214
zł103.64
Tax included
zł84.26 tax excl.
A development board based on the ESP32-C3-MINI-1 module, designed for rapid prototyping of IoT applications and embedded systems. The device offers Wi-Fi and Bluetooth Low Energy connectivity, as well as 4MB of Flash memory, enabling the implementation of typical microprocessor projects. Integrated ICM-42670-P and SHTC3 IMU sensors enable motion, temperature, and humidity measurement without additional components. Espressif Systems ESP32-C3-DevKit-RUST-2
Description
ESP32-C3-DevKit-RUST-2 is a modern development board based on the ESP32-C3-MINI-1 module, designed for rapid prototyping of IoT applications and embedded systems. The device integrates Wi-Fi and Bluetooth Low Energy (BLE) connectivity, enabling the creation of energy-efficient communication solutions. With built-in 4 MB SPI Flash memory, the board provides sufficient storage for typical microcontroller applications. The design ensures easy access to all key interfaces through exposed GPIO pins.
One of the key advantages of this device is its integrated sensor suite, which enables advanced projects without the need for external components. The board includes an ICM-42670-P IMU for motion and acceleration sensing, as well as an SHTC3 sensor for temperature and humidity measurement. This makes the board ideal for environmental monitoring applications, wearables, and smart systems.
The kit also features an addressable RGB LED and an additional GPIO LED, which can be used for status indication or interactive projects. A built-in BOOT and RESET button allow easy switching of operating modes and programming via the USB-C port. The USB-C connector serves both as a power supply and a communication interface for flashing and debugging.
The board also includes an integrated Li-Ion battery charging circuit, enabling the creation of mobile and standalone devices. Additionally, a 5 V to 3.3 V regulator ensures stable power delivery to the system. Thanks to its compact design and rich peripheral set, the ESP32-C3-DevKit-RUST-2 is an ideal platform for IoT projects, home automation, and portable devices.
Features
- Main module: ESP32-C3-MINI-1
- Flash: 4 MB SPI Flash
- Connectivity: 2.4 GHz Wi-Fi, Bluetooth Low Energy (BLE)
- USB interface: USB Type-C (power, communication, flashing, debugging)
- IMU sensor: ICM-42670-P (I2C)
- Temperature and humidity sensor: SHTC3 (I2C)
- User LED: GPIO10
- RGB LED: addressable, GPIO2
- BOOT button: programming mode
- RESET button: system reset
- Battery charging circuit: integrated, single-cell Li-Ion support
- Charging indicator: LED
- Power regulation: 5 V to 3.3 V converter
- Power supply: USB-C or Li-Ion battery
- GPIO: exposed on pin headers
- Interfaces: I2C, GPIO, UART (via USB CDC)
- Dimensions: 58 × 18 mm
