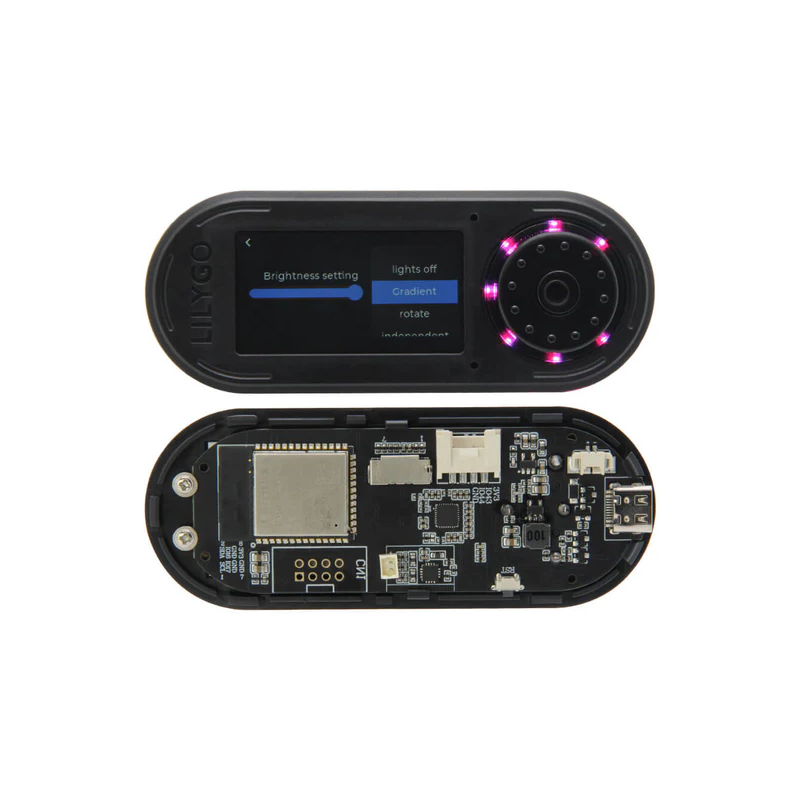

The LILYGO TTGO T-Embed Black development board is based on the ESP32-S3 microcontroller and integrates a 1.9" IPS color display, a rotary encoder with a push button, dual microphones, a speaker, a microSD card slot, and Wi-Fi and Bluetooth connectivity. The board is designed for HMI panels, IoT devices, controllers, and portable user interfaces requiring local control and wireless communication. LILYGO TTGO T-Embed Black

24h
Available
Available quantity: 6

Opis

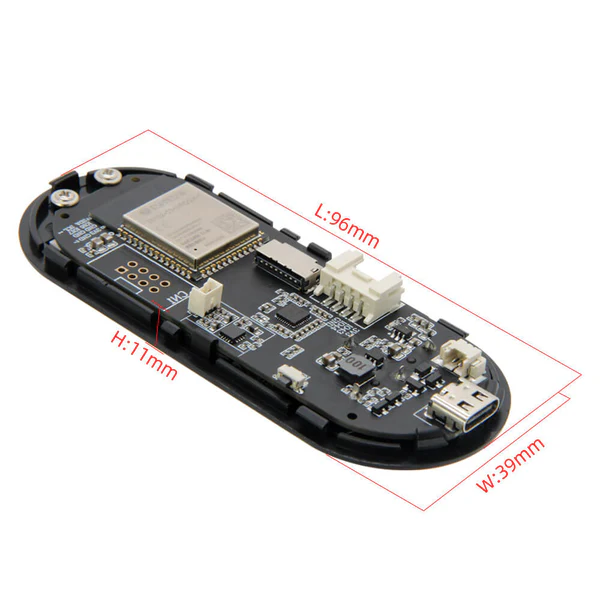

The LILYGO TTGO T-Embed Black development board is designed for programmable control panels and IoT devices equipped with a color graphical user interface. It is built around the ESP32-S3 microcontroller with integrated Wi-Fi and Bluetooth 5 connectivity and features a 1.9" IPS color display with a resolution of 170 × 320 pixels. The board also integrates a rotary encoder with a push button, dual microphones, an 8 Ω / 1 W speaker, a microSD card slot, a USB Type-C connector, a Grove interface, and GPIO expansion pins, making it suitable for both simple prototypes and advanced interactive embedded devices.

The board is equipped with 16 MB of Flash memory, 8 MB PSRAM, a 3.7 V Li-Ion battery connector with integrated charging and protection circuitry, a USB-to-UART interface, and multiple expansion pins exposing the ESP32-S3 communication interfaces and peripheral functions. The manufacturer also provides 3D enclosure models to simplify integration into custom hardware designs.

Applications and software support

The T-Embed enables the development of portable devices featuring a color graphical interface controlled with the integrated rotary encoder and push button. It can be used as a control panel, IoT controller, HMI interface, portable monitoring device, remote controller, data logger, or custom handheld instrument. The 1.9" IPS display, RGB LED ring, dual microphones, and built-in speaker provide the hardware required to create applications with rich graphical output and intuitive user interaction.

The manufacturer provides comprehensive technical documentation, example projects, software libraries, and source code through the official GitHub repository, making it easy to get started and develop custom applications. Available examples include display control, rotary encoder handling, RGB LED control, microphone and speaker support, Wi-Fi and Bluetooth communication, and demonstrations covering the remaining onboard peripherals.


The open hardware architecture, extensive peripheral set, and support for popular development environments make the board suitable for HMI panels, IoT devices, controllers, data loggers, and custom embedded systems with a built-in color graphical user interface.



Features

  • ESP32-S3 microcontroller
  • 16 MB Flash memory
  • 8 MB PSRAM
  • Wi-Fi IEEE 802.11 b/g/n
  • Bluetooth 5 and Bluetooth Mesh
  • 1.9" IPS TFT display
  • ST7789 display controller
  • 170 × 320 pixel resolution
  • Typical brightness: 350 cd/m²
  • Rotary encoder with integrated push button
  • 24 detent positions
  • 12 pulses per revolution
  • Dual microphones
  • 8 Ω / 1 W speaker
  • 7 RGB LED ring
  • Grove connector
  • 2 × 4 GPIO header, 2.54 mm pitch
  • microSD card slot
  • USB Type-C connector
  • 3.7 V Li-Ion battery connector
  • Battery charging and protection circuit
  • USB-to-UART interface
  • Compatible with Arduino IDE, ESP-IDF, and PlatformIO
  • ABS enclosure
  • Black color

Kit includes

  • LILYGO TTGO T-Embed Black development board
  • 2 × 4 IDC header (2.54 mm)
  • 10 cm 2 × 4 IDC ribbon cable
  • 2-pin JST 1.25 mm cable
  • 8 Ω / 1 W speaker
