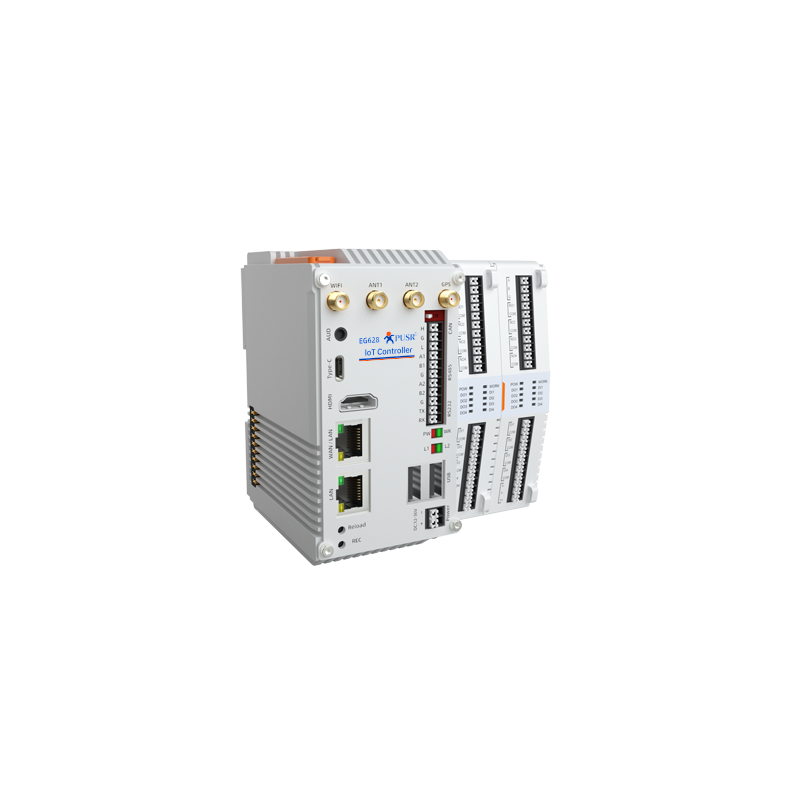

USR-EG628-GL - Industrial IoT controller with 4-core ARM CPU, LTE, Wi-Fi, GNSS and edge computing support
ID: 1200636
zł1,269.25
Tax included
zł1,031.91 tax excl.
USR-EG628-GL is a compact industrial controller with LTE, GNSS, Wi-Fi and advanced edge computing capabilities. It combines the functionality of a PLC controller, data concentrator and visualization system in a single platform, enabling integration with modern automation, energy and smart installation systems.
Description
USR-EG628-GL is an expandable industrial IoT controller with Linux Ubuntu 20.04, based on a quad-core ARM RK3562J processor (64-bit, 2.0 GHz) with a built-in NPU (1 TOPS) for AI processing. The device integrates the functions of a PLC controller, edge computing gateway and configuration interface through the WukongEdge application. It enables local data collection and processing, IEC61131 logic support and the creation of visualization dashboards.
The module is equipped with LTE Cat.4 with global band support, dual-band Wi-Fi (2.4/5 GHz), two Ethernet ports (1 GbE + 1 Fast Ethernet), serial ports (RS232, 2×RS485, CAN), HDMI, USB 3.0/2.0 and I/O expansion interfaces. The system supports over 2000 real-time data points, multi-protocol conversion (Modbus, OPC UA, IEC104, IEC61850, Bacnet, DL/T645) and integration with cloud platforms.
Properties
- ARM RK3562J processor, quad-core, 64-bit, 2.0 GHz
- Built-in NPU 1.0 TOPS with AI model support (Caffe, TensorFlow, ONNX)
- Operating system: Linux Ubuntu 20.04 with graphical environment
- Built-in Node-Red, support for Docker and C/C++
- Communication:
- LTE Cat.4 (Dual SIM Single Standby, Nano SIM)
- Wi-Fi: 802.11a/b/g/n/ac/ax (2.4 GHz and 5.8 GHz)
- GNSS: GPS/GLONASS/Beidou/Galileo/QZSS
- Ethernet: 1×Gigabit, 1×Fast Ethernet
- Supported bands:
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
- LTE-TDD: B34/B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8
- Ports:
- 1×RS232, 2×RS485, 1×CAN
- 1×HDMI (4K@60Hz), 1×Audio (jack)
- 2×USB 2.0, 1×USB 3.0 (Type-C)
- Support for over 2000 real-time data points
- Protocol conversion: Modbus, OPC UA, JSON, IEC104, IEC61850, Bacnet
- PLC support compliant with IEC61131-3 (5 programming languages)
- Built-in RTC clock with power on/off scheduling function
- Power supply: DC 9–36 V
- Operating temperature: -20°C to +70°C
- Dimensions: 111.5 × 94 × 28 mm
- Metal housing with mounting holes
Included in the set
- USR-EG628-GL controller
- LTE and Wi-Fi antennas
- GNSS antenna
- Power connector
- Mounting accessories
1200636
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
