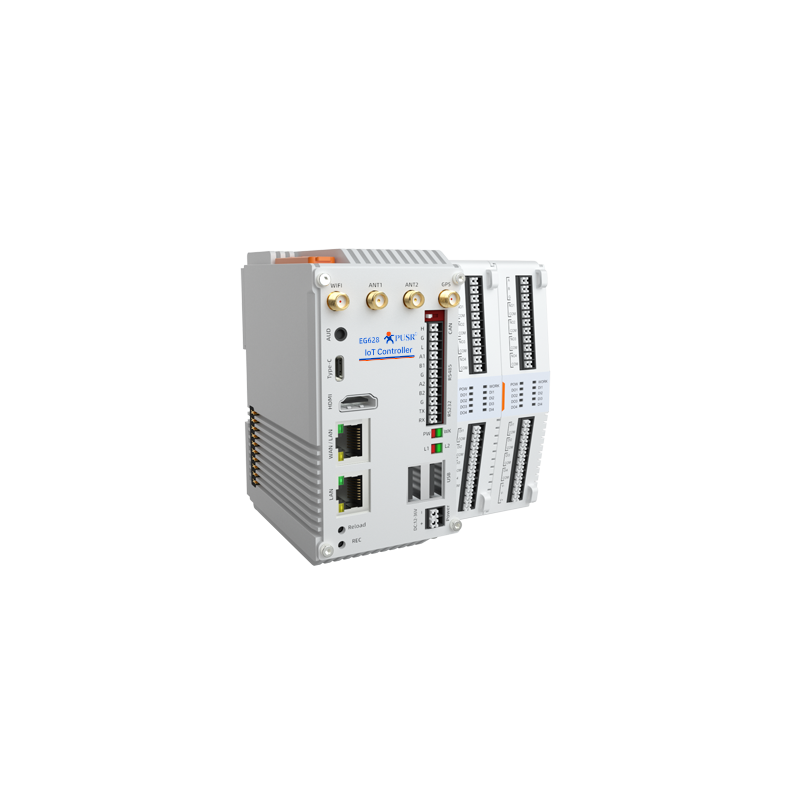

USR-EG628-ETH - Industrial IoT controller with 4-core ARM CPU, dual Ethernet and edge computing support
ID: 1200637
zł917.16
Tax included
zł745.66 tax excl.
USR-EG628-ETH is an industrial controller with dual Ethernet, serial ports, edge computing and PLC support, designed for local data processing in automation systems, energy management and smart buildings. It offers programming flexibility, wide protocol compatibility and the ability to integrate with visualization and cloud systems.
Description
USR-EG628-ETH is an expandable industrial computer with Linux Ubuntu 20.04, designed to function as an edge gateway, programmable PLC controller and local visualization interface. Based on the Rockchip RK3562J processor (4 ARM cores, 64-bit, 2.0 GHz) with a built-in NPU (1 TOPS), it provides efficient data processing and support for artificial intelligence models.
The device is equipped with dual Ethernet interface (1 GbE and 1 Fast Ethernet), serial ports (RS232, 2×RS485), CAN bus, HDMI, USB 2.0/3.0 connectors and I/O expansion interfaces. Thanks to the WukongEdge software, it enables rapid deployment of industrial applications, supporting data processing from over 2000 real-time points and protocol conversion (Modbus, OPC UA, IEC104, Bacnet). The system also supports PLC programming compliant with IEC61131-3 and integration with Node-Red and Docker.
Properties
- Rockchip RK3562J processor, ARM 64-bit, 4 cores, 2.0 GHz
- Built-in NPU 1.0 TOPS for AI applications
- Operating system: Linux Ubuntu 20.04
- RAM: 4 GB DDR4
- Internal memory: 32 GB eMMC, SD card slot up to 128 GB
- Communication interfaces:
- 2×Ethernet (1 GbE + 1 Fast Ethernet)
- 1×RS232, 2×RS485, 1×CAN
- 1×HDMI (4K@60Hz), 1×Audio
- 2×USB 2.0, 1×USB 3.0 (Type-C)
- Expandable I/O, plug-and-play mounting
- PLC support compliant with IEC61131-3 (5 programming languages)
- Protocol conversion: Modbus, OPC UA, JSON, IEC104, IEC61850, Bacnet, DL/T645
- Support for over 2000 real-time data points
- RTC clock with power on/off scheduling function
- Status LEDs: power, operation, user indicators
- Power supply: DC 9–36 V
- Dimensions: 111.5 × 94 × 28 mm
- Operating temperature range: -20°C to +70°C
- Metal housing with mounting holes
Included in the set
- USR-EG628-ETH controller
- Power connector
- Mounting accessories
