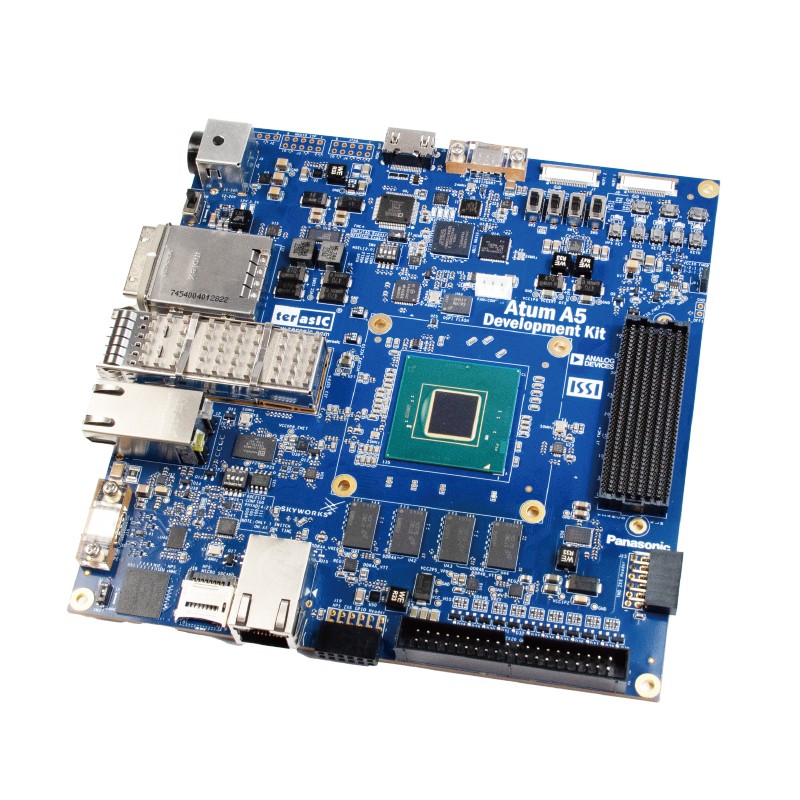

Terasic Atum A5 Development Kit – development kit with Intel Agilex 5 FPGA

Description

The Terasic Atum A5 Development Kit is a state-of-the-art development platform featuring the Intel® Agilex™ 5 FPGA, designed for advanced applications in artificial intelligence, vision systems, and industrial communication networks. It includes the largest FPGA in the Agilex 5 series, offering 656,000 logic elements, ensuring high performance and extensive implementation possibilities.

With a rich set of interfaces, including 2.5G Ethernet, PCIe Gen3 x4, QSFP+, FMC+ connectors, MIPI, and HDMI, the Atum A5 is an ideal tool for engineers, developers, and researchers working on high-bandwidth and reliability-demanding applications.

Features

• FPGA A5ED065BB32AE4SR0 with 656K logic elements
• Dimensions: 155 mm x 160 mm
• Built-in USB-Blaster II programmer
• ASx4 configuration mode support with 512 Mbit QSPI Flash memory
• Pre-installed active heatsink for optimal cooling
• FPGA Interfaces
  • HDMI output (1080p support)
  • 4 GB DDR4-A with a 32-bit data bus (shared with HPS processor)
  • 4 GB DDR4-B with a 32-bit data bus
  • FMC+ connector with 12 transceivers
  • 2.5G Ethernet PHY + RJ45 connector
  • QSFP+ connector for 40 GbE networking
  • Two 2-lane MIPI connectors for cameras/displays
  • PCIe Gen3 x4 slot
  • GPIO 3.3V connector (2x20)
  • TMD 3.3V connector (2x6)
  • 4 user LEDs, 4 buttons, 4 DIP switches
• HPS (Hard Processor System) Interfaces
  • MicroSD slot and built-in 8 GB eMMC storage
  • 4 GB DDR4-A with a 32-bit data bus (shared with FPGA)
  • Gigabit Ethernet PHY + RJ45
  • USB 3.1 Gen1 (5 Gbps) with USB Type-C connector
  • UART port via USB
  • 1 LED, 1 button, cold reset button
  • GPIO 3.3V connector (2x6), including one I2C bus

Included in the Kit

• Atum A5 Board
• Pre-installed active heatsink
• Pre-installed MicroSD card + card reader
• USB Type-C cable
• AC power cord
• 12V/10A 120W power supply
• Quick start guide
