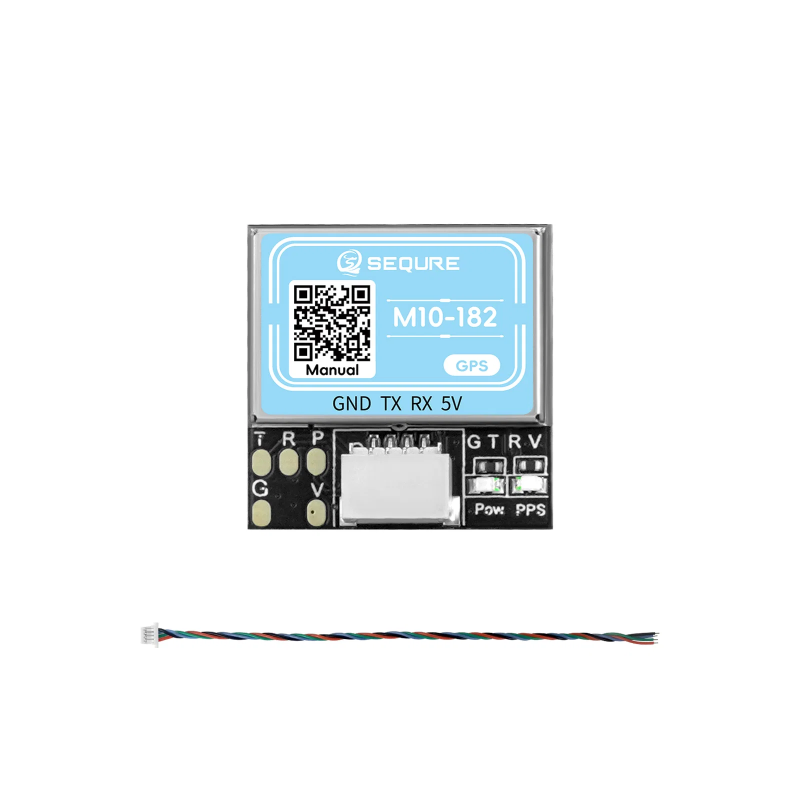

SEQURE M10-182 - 10th Generation GPS Module for FPV Drones
ID: 1207256
5902186340602
zł92.55
Tax included
zł75.24 tax excl.
Compact satellite positioning module designed for FPV drones, fixed-wing models, and other RC platforms. It supports GPS, BDS, and Galileo constellations as well as SBAS and QZSS augmentation systems, providing an output rate of up to 10 Hz and horizontal positioning accuracy of 1.5 m in open-sky conditions. SEQURE M10-182
Description
Satellite positioning module for FPV drones and RC models uses an M10050 GNSS chip and a ceramic antenna to receive GPS, BDS, and Galileo signals. It also supports SBAS and QZSS and provides 72 search channels. The manufacturer specifies horizontal positioning accuracy of 1.5 m in open-sky conditions and speed accuracy of 0.05 m/s. The output rate can be configured from 1 Hz to 10 Hz, with a default setting of 10 Hz.
The module supports NMEA and UBLOX protocols and a baud rate of 115200 Bd. A 3.3 V to 5 V supply range, solder pads, and a 4-pin SH1.0 connector support integration with RC model electronics. Dimensions of 18 × 18 × 8.2 mm and a net weight of approximately 7.7 g allow installation in compact builds, while compatibility with Betaflight, INAV, and ArduPilot supports use with popular flight controller firmware. The M10-182 version does not include a compass.
Features
- Manufacturer: SEQURE
- Model: M10-182
- Type: satellite positioning module
- GNSS chip: M10050
- Supported constellations: GPS, BDS, Galileo
- Augmentation systems: SBAS, QZSS
- Number of search channels: 72
- Antenna: ceramic
- Output protocols: NMEA, UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-sky conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 3.3 V to 5 V
- Connection interface: solder pads, 4-pin SH1.0 connector
- Compass: none
- Compatible FC firmware: Betaflight, INAV, ArduPilot
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 18 × 18 × 8.2 mm
- Net weight: approximately 7.7 g
Kit Includes
- SEQURE M10-182 module × 1
- Connection cable × 1
