VIFLY GPS-mate - GPS Power Module with Finder 2 Buzzer
ID: 1209243
5902186341098
zł54.86
Tax included
zł44.60 tax excl.

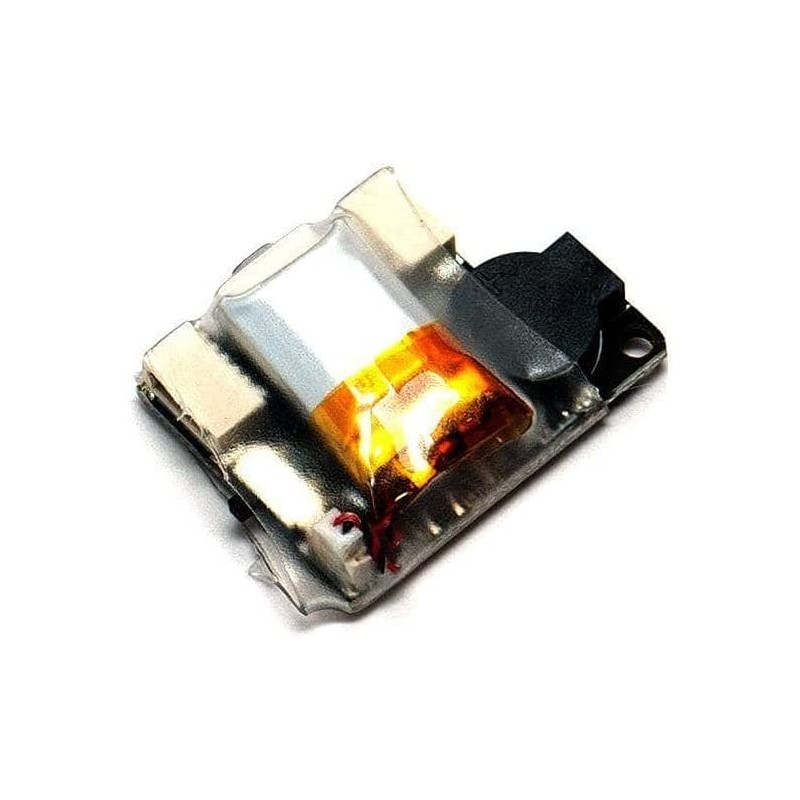

Independent power module designed for GPS receivers used in FPV drones, allowing satellites to be acquired without powering up the flight controller or video transmission system. It supports 3.3 V and 5 V GPS receivers and provides an output current of up to 80 mA. The built-in locator function with a buzzer volume of up to 90 dB helps locate the model after loss of main power. VIFLY GPS-mate
Description
GPS power module allows the receiver to acquire and maintain a satellite fix without powering the flight controller, VTX or other drone electronics. The built-in 50 mAh LiPo battery keeps the GPS powered between consecutive flights until the module is switched off, reducing the need to wait for another satellite fix. The battery is charged during normal drone operation and does not require a separate charging process. Switchable 3.3 V / 5 V output voltage provides compatibility with GPS receivers using either supply voltage.
The built-in VIFLY Finder 2 function also allows the module to operate as a locator buzzer after the drone's main battery is disconnected. The audible signal reaches a volume of up to 90 dB, while the buzzer can operate for up to 4 hours. The module measures 26 x 20 x 8 mm and weighs 3.5 g, allowing installation in compact FPV builds.
Features
- Application: independent GPS receiver power supply and drone location
- GPS operation without powering the flight controller or VTX
- Switchable GPS supply voltage: 3.3 V / 5 V
- Output current: up to 80 mA
- Built-in VIFLY Finder 2 locator function
- Buzzer volume: up to 90 dB
- Buzzer operating time: up to 4 hours
- Built-in LiPo battery: 3.7 V, 50 mAh
- Automatic battery charging during normal drone operation
- Charging time: 1.5 hours
- Input voltage: 4.5 - 5.5 V
- Dimensions: 26 x 20 x 8 mm
- Weight: 3.5 g
Kit includes
- VIFLY GPS-mate module - 1 pc.
- 4-pin cable - 1 pc.
- 5-pin cable - 1 pc.
- Cable tie - 1 pc.
- User manual
1209243
