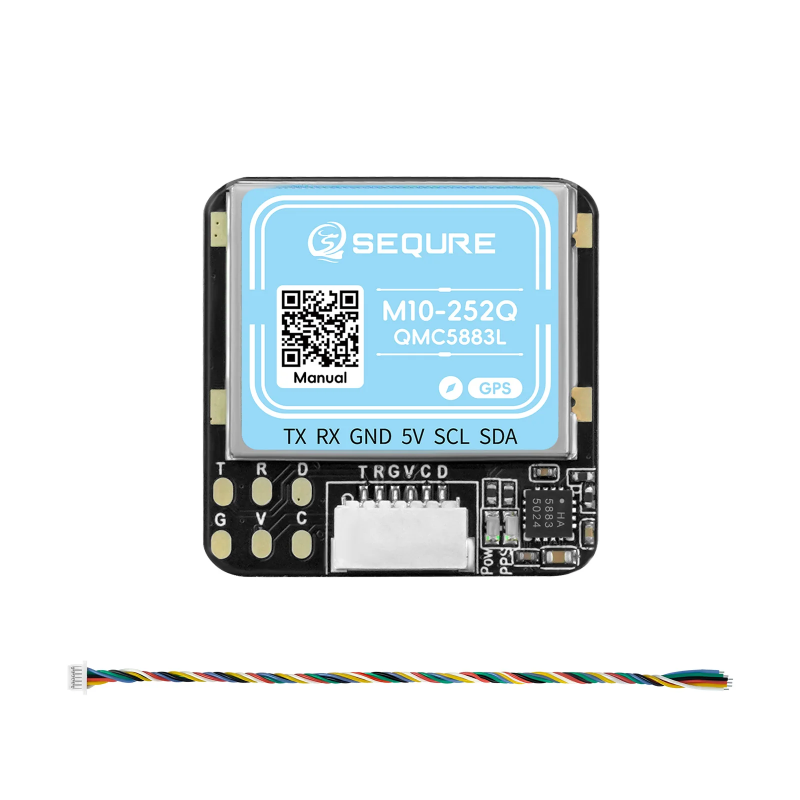

SEQURE M10-252Q - GPS Module with QMC5883L Compass for FPV Drones
ID: 1207259
5902186340633
zł107.27
Tax included
zł87.21 tax excl.
Satellite positioning module designed for FPV drones, fixed-wing models, and other RC platforms. It supports GPS, BDS, and Galileo constellations together with SBAS and QZSS augmentation systems, while the integrated QMC5883L compass additionally provides heading information. SEQURE M10-252Q
Description
Satellite positioning module for FPV drones and RC models uses the M10050 GNSS chip, a ceramic antenna, and an integrated QMC5883L compass. It receives GPS, BDS, and Galileo signals and also supports SBAS and QZSS with 72 search channels. The manufacturer specifies horizontal positioning accuracy of 1.5 m in open-sky conditions and speed accuracy of 0.05 m/s. The output rate can be configured from 1 Hz to 10 Hz, with a default setting of 10 Hz.
The module supports NMEA and UBLOX protocols with a baud rate of 115200 Bd. A 3.3 V to 5 V supply range, PCB solder pads, and a 6-pin SH1.0 connector provide connection options for integration with RC model electronics. Dimensions of 25 × 25 × 8.2 mm and a weight of 12 g allow installation in various RC platforms, while compatibility with Betaflight, INAV, and ArduPilot supports use with popular flight-controller firmware.
Features
- Manufacturer: SEQURE
- Model: M10-252Q
- Manufacturer SKU: PJGPSM10252Q
- Type: satellite positioning module with compass
- GNSS chip: M10050
- Supported satellite systems: GPS, BDS, Galileo
- Augmentation systems: SBAS, QZSS
- Search channels: 72
- Antenna: ceramic
- Compass: QMC5883L
- Output protocols: NMEA, UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-sky conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 3.3 V to 5 V
- Connection interface: PCB solder pads, 6-pin SH1.0 connector
- Compatible FC firmware: Betaflight, INAV, ArduPilot
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 25 × 25 × 8.2 mm
- Weight: 12 g
Kit Includes
- SEQURE M10-252Q module × 1
- Connection cable × 1
