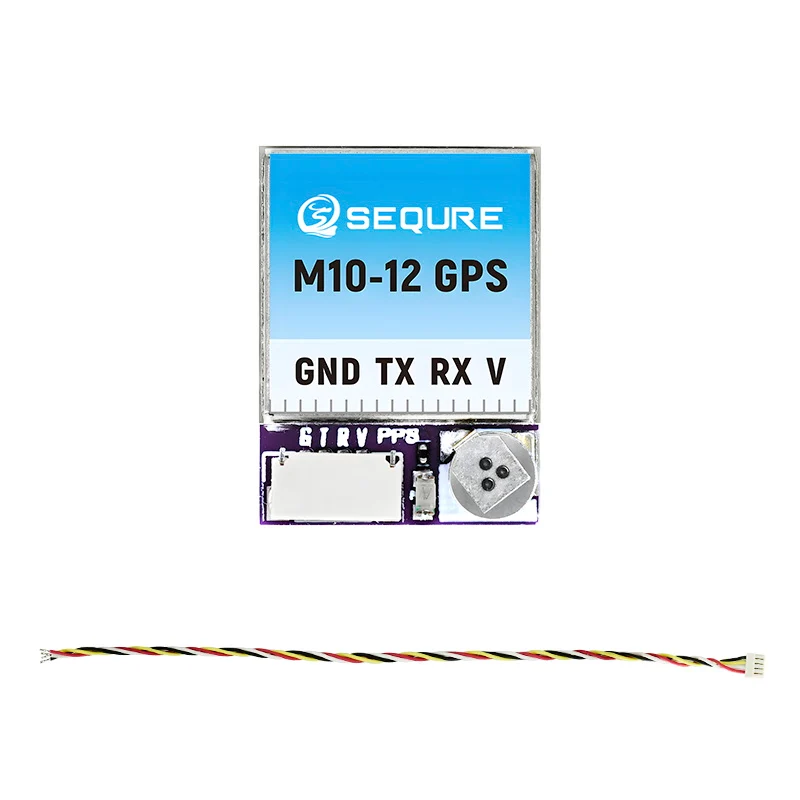

SEQURE M10-12 - GPS Module for FPV Drones
ID: 1207260
5902186340640
zł82.73
Tax included
zł67.26 tax excl.
Compact satellite positioning module designed for FPV drones, fixed-wing models, and other RC platforms. It supports GPS, GLONASS, BDS, Galileo, SBAS, and QZSS, providing an output rate of up to 10 Hz, horizontal positioning accuracy of 1.5 m, and compact dimensions of 12 × 16 × 4.5 mm. SEQURE M10-12
Description
Satellite positioning module for FPV drones and RC models uses an M10 GNSS chip and a ceramic antenna to receive GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, and QZSS L1 signals. The receiver provides 72 search channels, speed accuracy of 0.05 m/s, and horizontal positioning accuracy of 1.5 m in open-sky conditions. The output rate can be configured from 1 Hz to 10 Hz, with a default setting of 10 Hz.
The module operates from a 5 V power supply and communicates with the flight controller using the UBLOX protocol at a baud rate of 115200 Bd. A 4-pin SH0.8 connector and PCB solder pads provide two connection options. Dimensions of 12 × 16 × 4.5 mm and a weight of 2.3 g support installation in compact FPV builds. The M10-12 version does not include a compass.
Features
- Manufacturer: SEQURE
- Model: M10-12
- Type: satellite positioning module
- GNSS chip: M10
- Supported satellite systems: GPS L1, GLONASS L1, BDS B1, Galileo E1
- Augmentation systems: SBAS L1, QZSS L1
- Number of search channels: 72
- Antenna: ceramic
- Output protocol: UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-sky conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 5 V
- Connection interface: 4-pin SH0.8 connector, PCB solder pads
- Compass: none
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 12 × 16 × 4.5 mm
- Weight: 2.3 g
Kit Includes
- SEQURE M10-12 module × 1
- Connection cable × 1
