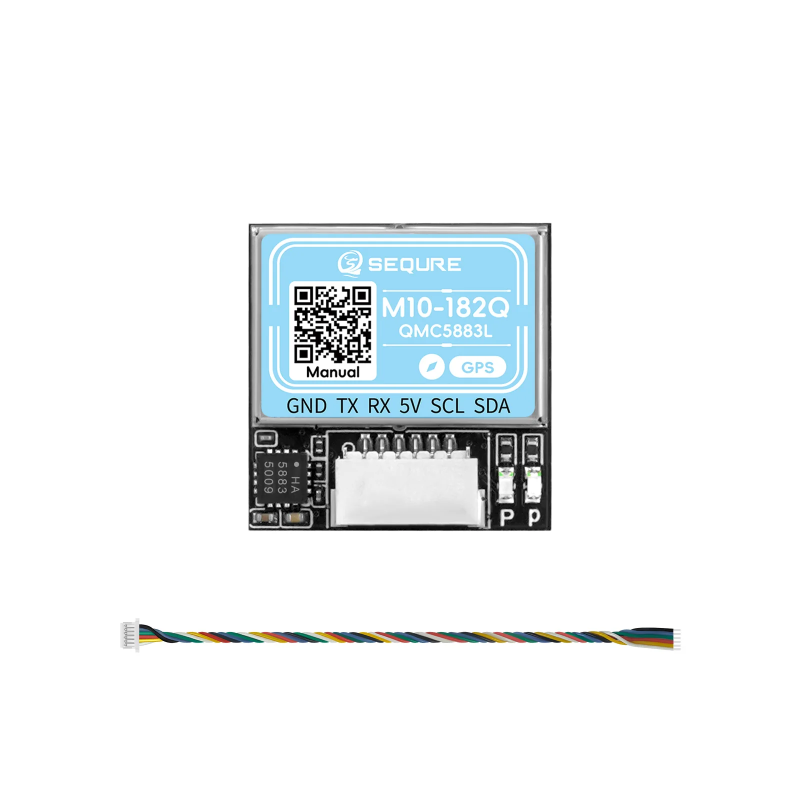

SEQURE M10-182Q - GPS Module with QMC5883L Compass for FPV Drones
ID: 1207257
5902186340619
zł97.45
Tax included
zł79.23 tax excl.
Compact satellite positioning module designed for FPV drones, fixed-wing models, and other RC platforms. It supports GPS, BDS, and Galileo constellations as well as SBAS and QZSS augmentation systems, while the integrated QMC5883L compass provides heading information for navigation applications. SEQURE M10-182Q
Description
Satellite positioning module with an integrated compass for FPV drones and RC models uses an M10050 GNSS chip, a ceramic antenna, and a QMC5883L compass. It supports GPS, BDS, and Galileo constellations as well as SBAS and QZSS, with 72 search channels. The manufacturer specifies horizontal positioning accuracy of 1.5 m in open-sky conditions and speed accuracy of 0.05 m/s. The output rate can be configured from 1 Hz to 10 Hz, with a default setting of 10 Hz.
The module supports NMEA and UBLOX protocols and a baud rate of 115200 Bd. A 3.3 V to 5 V supply range and a 6-pin SH1.0 connector support integration with RC model electronics. Dimensions of 18 × 18 × 8.2 mm and a net weight of approximately 7.7 g allow installation in compact builds, while compatibility with Betaflight, INAV, and ArduPilot supports use with popular flight controller firmware.
Features
- Manufacturer: SEQURE
- Model: M10-182Q
- Type: satellite positioning module with compass
- GNSS chip: M10050
- Supported constellations: GPS, BDS, Galileo
- Augmentation systems: SBAS, QZSS
- Number of search channels: 72
- Antenna: ceramic
- Compass: QMC5883L
- Output protocols: NMEA, UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-sky conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 3.3 V to 5 V
- Connection interface: 6-pin SH1.0 connector
- Compatible FC firmware: Betaflight, INAV, ArduPilot
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 18 × 18 × 8.2 mm
- Net weight: approximately 7.7 g
Kit Includes
- SEQURE M10-182Q module × 1
- Connection cable × 1
