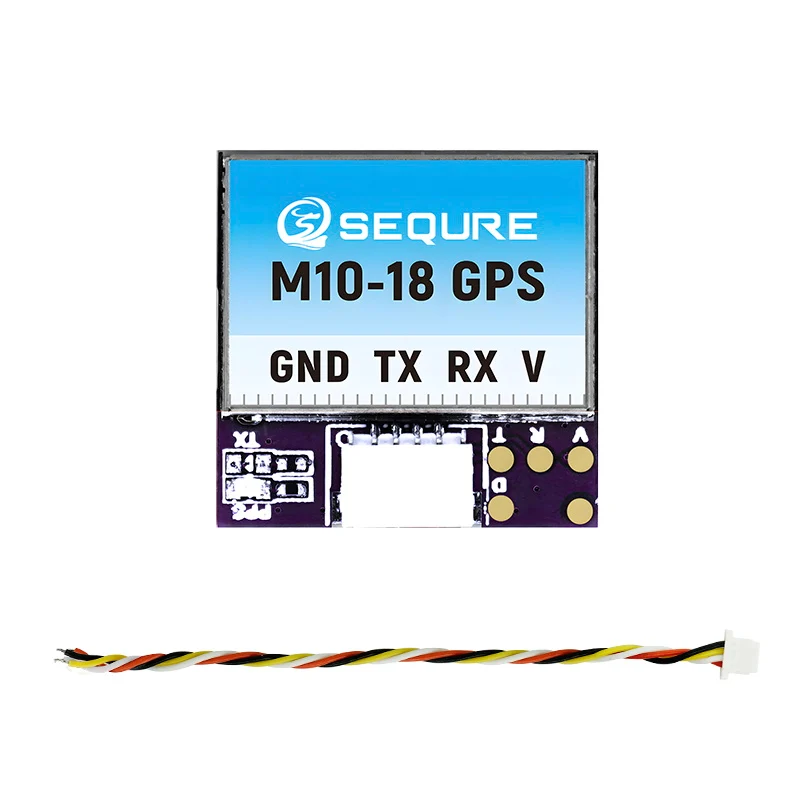

SEQURE M10-18 - GPS Module for FPV Drones
ID: 1207261
5902186340657
zł88.34
Tax included
zł71.82 tax excl.
Compact satellite positioning module designed for FPV drones, fixed-wing models, and other RC applications. It supports GPS, GLONASS, BDS, and Galileo, as well as SBAS and QZSS augmentation systems, providing an output rate of up to 10 Hz and horizontal positioning accuracy of 1.5 m in open-air conditions. SEQURE M10-18
Description
Satellite positioning module for FPV drones and RC models uses an M10 chip and a ceramic antenna to receive GPS L1, GLONASS L1, BDS B1, Galileo E1, SBAS L1, and QZSS L1 signals. The receiver provides 72 search channels, a speed accuracy of 0.05 m/s, and horizontal positioning accuracy of 1.5 m in open-air conditions. The output rate can be configured from 1 Hz to 10 Hz, with a default setting of 10 Hz.
The module operates from a 5 V power supply and communicates using the UBLOX protocol at 115200 Bd. A 4-pin SH1.0 connector and PCB solder pads provide two connection methods. Dimensions of 18 × 18 × 8 mm and a weight of 7.2 g allow installation in compact FPV builds. The M10-18 version does not include a compass.
Features
- Manufacturer: SEQURE
- Model: M10-18
- Type: satellite positioning module
- GNSS chip: M10
- Supported systems: GPS L1, GLONASS L1, BDS B1, Galileo E1
- Augmentation systems: SBAS L1, QZSS L1
- Search channels: 72
- Antenna: ceramic
- Output protocol: UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-air conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 5 V
- Connection interface: SH1.0 4-pin connector, PCB solder pads
- Compass: no
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 18 × 18 × 8 mm
- Weight: 7.2 g
Kit Includes
- SEQURE M10-18 module × 1
- Connection cable × 1
