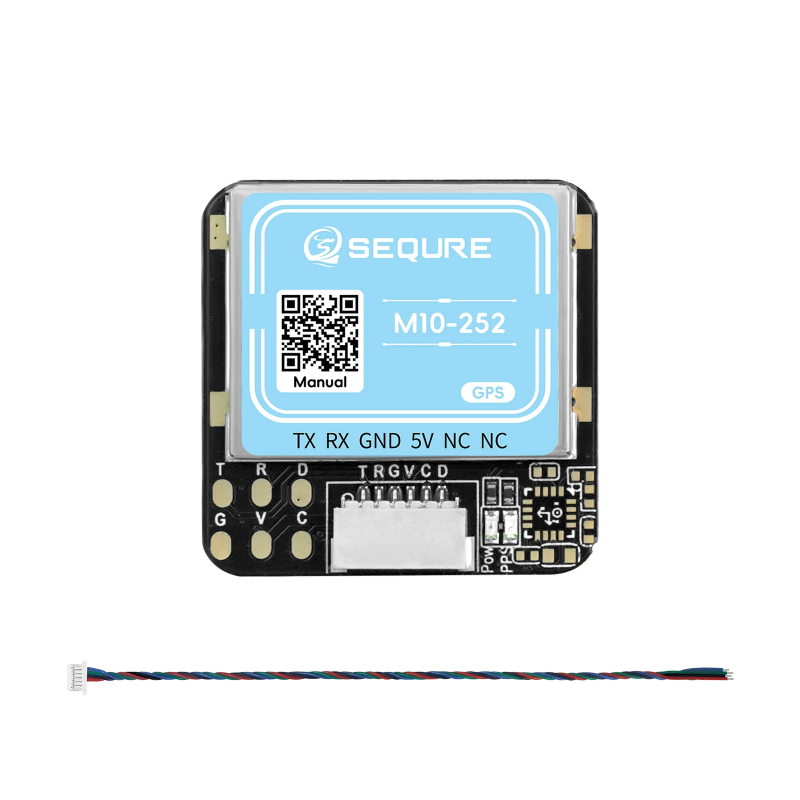

SEQURE M10-252 - 10th-Generation GPS Module for FPV Drones
ID: 1207258
5902186340626
zł102.36
Tax included
zł83.22 tax excl.
Compact satellite positioning module designed for FPV drones, fixed-wing models, and other RC applications. It supports GPS, BDS, and Galileo satellite systems together with SBAS and QZSS augmentation systems, providing an output rate of up to 10 Hz and horizontal positioning accuracy of 1.5 m in open-sky conditions. SEQURE M10-252
Description
Satellite positioning module for FPV drones and RC models uses the M10050 GNSS chip and a ceramic antenna to receive GPS, BDS, and Galileo signals. It also supports SBAS and QZSS and provides 72 search channels. The manufacturer specifies 1.5 m horizontal 2D positioning accuracy in open-sky conditions and speed accuracy of 0.05 m/s. The output rate can be configured from 1 Hz to 10 Hz, with 10 Hz as the default setting.
The module supports NMEA and UBLOX protocols with a baud rate of 115200 Bd. A 3.3 V to 5 V supply range, PCB solder pads, and a 6-pin SH1.0 connector provide connection options for integration with flight-controller electronics. Dimensions of 25 × 25 × 8.2 mm and a weight of 12 g allow installation in various RC platforms, while compatibility with Betaflight, INAV, and ArduPilot supports use with popular flight-controller firmware. The M10-252 version does not include a compass.
Features
- Manufacturer: SEQURE
- Model: M10-252
- Type: satellite positioning module
- GNSS chip: M10050
- Supported satellite systems: GPS, BDS, Galileo
- Augmentation systems: SBAS, QZSS
- Search channels: 72
- Antenna: ceramic
- Output protocols: NMEA, UBLOX
- Baud rate: 115200 Bd
- Output rate: 1 Hz to 10 Hz
- Default output rate: 10 Hz
- Horizontal positioning accuracy: 1.5 m 2D in open-sky conditions
- Speed accuracy: 0.05 m/s
- Tracking sensitivity: -162 dBm
- Acquisition sensitivity: -160 dBm
- Supply voltage: 3.3 V to 5 V
- Connection interface: PCB solder pads, 6-pin SH1.0 connector
- Compass: none
- Compatible FC firmware: Betaflight, INAV, ArduPilot
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +105°C
- Dimensions: 25 × 25 × 8.2 mm
- Weight: 12 g
Kit Includes
- SEQURE M10-252 module × 1
- Connection cable × 1
