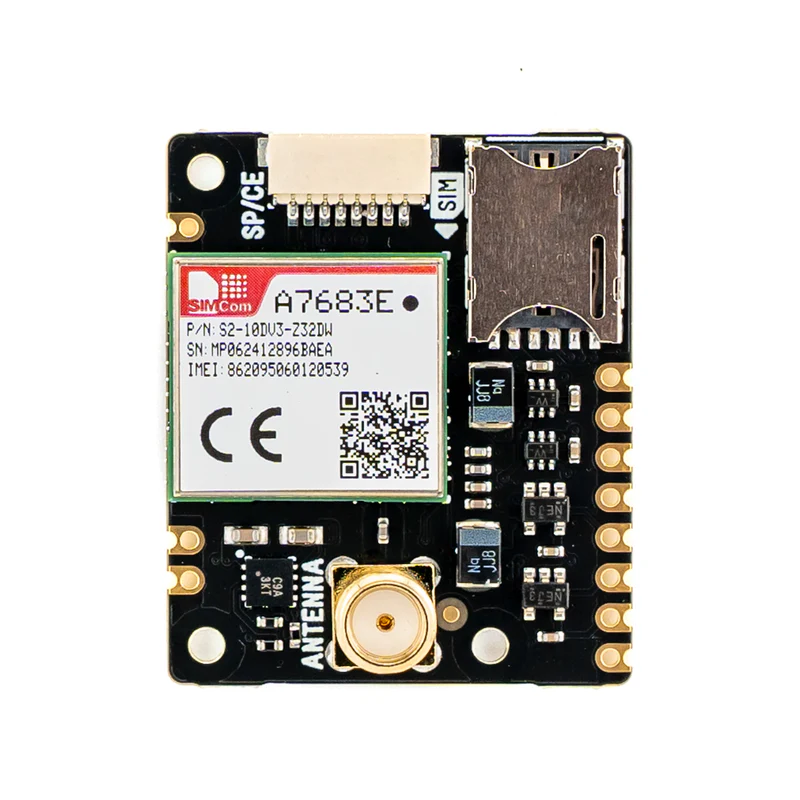

Clipper LTE 4G Breakout - GSM 4G LTE communication module
ID: 1198997
769894026083
zł175.57
Tax included
zł142.74 tax excl.
4G LTE module enabling reliable data transmission over the cellular network, ideal for IoT projects in hard-to-reach places. Equipped with an SP/CE connector, SIM slot and SMA antenna, it allows for solderless connection and quick integration with Raspberry Pi or Pico. It supports European LTE bands, and with low transfer consumption it works great with prepaid cards. Pimoroni PIM746
Description
Clipper is a 4G LTE communication module that enables data transmission and reception via cellular networks—an ideal solution for mobile or remote projects where Wi-Fi access is limited or unavailable. Whether you're creating an art installation at a festival, remotely monitoring a beehive, a boat, or any hard-to-reach location, Clipper provides reliable Internet connectivity. Unlike smartphones, microcontrollers use very little data, so using a prepaid SIM card is highly efficient. The module features an SP/CE connector, allowing quick connection to compatible microcontrollers. It also includes a built-in nano SIM slot and an SMA connector for the antenna (included in the starter kit). Clipper is fully compatible with Raspberry Pi and Raspberry Pi Pico, allowing easy integration into existing IoT projects. With support for popular LTE bands used across Europe, this device is ready for deployment in a wide range of locations. It’s a versatile and ready-to-go solution for your remote applications.
Features
- Module: SIMCom A7683E
- Supported LTE-FDD bands: B1, B3, B5, B7, B8, B20, B28
- Controlled via AT commands
- SP/CE connector (8-pin JST-SH)
- Nano SIM card slot
- SMA antenna connector
- No soldering required with SP/CE connection
- Compatibility: Raspberry Pi, Raspberry Pi Pico / RP2040 / RP2350
- Dimensions: 35 × 29 × 5 mm (antenna connector: +11 mm)
Kit contains
- Clipper 4G LTE Breakout Module
- SP/CE cable
- Antenna 108 mm
