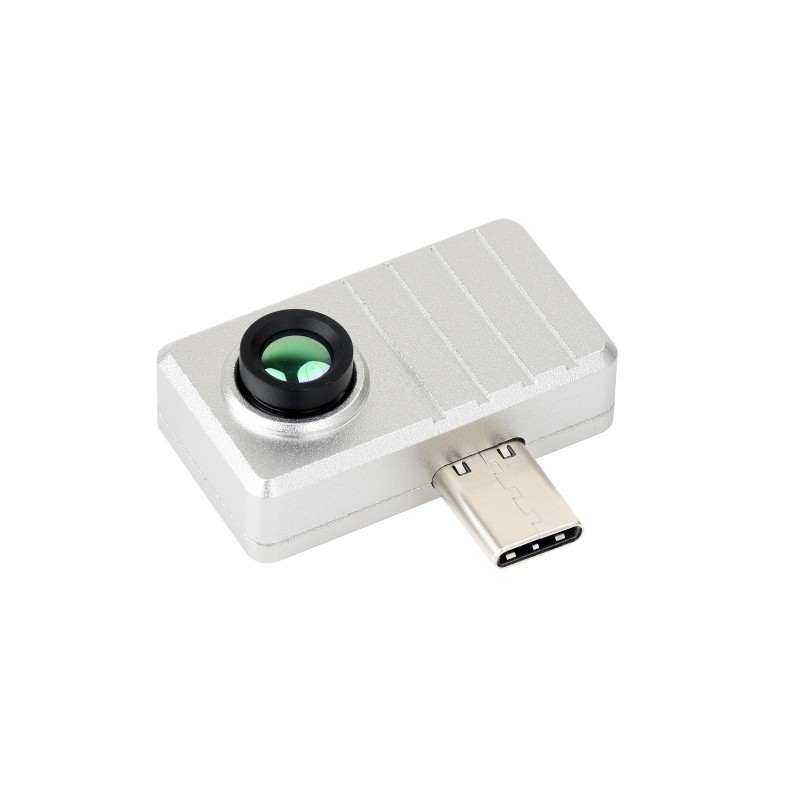

Main View
search
  • Main View
  • Angled View – Bottom of the Device
  • Angled View – USB-C Port Visible
  • Angled View – Front of the Device
  • Bottom View
ID: 1198959
zł412.39
Tax included

zł335.28 tax excl.

Far-Infrared Thermal Camera 8–14 μm for USB-C Smartphones, 80×62 px Resolution, 45° FOV, Measurement Range -40°C to 400°C, Aluminum Housing, Plug and Play. Waveshare Thermal-45 USB Camera (B)

4 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Thermal-45 USB Camera (B) enables non-contact temperature measurement and real-time thermal imaging using a smartphone equipped with a USB-C port. The device utilizes hybrid microbolometer and thermopile pixel technology to convert far-infrared radiation in the 8–14 μm wavelength range into a detailed surface temperature map of observed objects.

                                                                                                                  Compact Form and Mobile Thermal Diagnostics


The Thermal-45 USB Camera (B) is enclosed in a compact aluminum alloy housing. The ribbed enclosure design increases the heat dissipation surface area while improving mechanical durability during service and industrial use. The integrated USB-C connector enables direct connection to a smartphone without additional cables, ensuring a stable and secure mechanical interface.

The centrally positioned optical module is responsible for detecting infrared radiation in the 8–14 μm wavelength range. The 80 × 62 pixel array converts the IR radiation distribution into a surface temperature map of observed objects, enabling non-contact temperature measurement within a range of -40°C to 400°C. The shutterless design allows continuous operation and thermal image generation at up to 25 FPS.

                  USB-C Interface with Mobile and Desktop Application Support

The camera operates with a dedicated application for smartphones and Windows PCs, enabling real-time thermal image viewing and advanced temperature analysis. The user interface allows selection of multiple color palettes (including Iron, Rainbow, Magma, and Inferno), adjustment of temperature range, dynamic image scaling, alarm threshold configuration, and real-time display of minimum and maximum temperature values within the frame.

The application also supports screenshot capture, video recording, fever detection mode, and precise spot temperature measurement with accurate point-based readings. These features make the device suitable for technical diagnostics, electrical installation servicing, HVAC inspection, and a wide range of industrial and maintenance applications.

USB-C

                                                                                                                    45° / 90° FOV Options for Different Applications


The camera is available in two field-of-view variants: 45° and 90°, allowing the device to be tailored to specific application requirements. The 45° version provides a more focused frame with higher detail density, making it ideal for spot inspections, electronic component diagnostics, and analysis of small objects.

The 90° version offers a wide-angle view, enabling observation of a larger area within a single frame. This makes it particularly suitable for room monitoring, installation inspection, security applications, and rapid situational assessment in the field. The choice of FOV variant allows the camera to be optimized for precise measurement tasks and specific operational scenarios.

                              25 FPS – High Thermal Image Fluidity

The camera supports a thermal video stream of up to 25 frames per second, ensuring smooth and stable visualization of temperature changes in real time. The higher frame rate enables more accurate observation of dynamic thermal phenomena such as heating of electronic components, heat flow behavior, or movement of people within the camera’s field of view.

Thanks to its high refresh rate, the camera is well suited for:

  • monitoring air conditioning units and HVAC systems,
  • diagnosing electrical installations and distribution boards,
  • monitoring temperature of industrial machines and equipment,
  • supervising heating and cooking processes,
  • kontroli procesów grzewczych i kuchennych,
  • analyzing temperature distribution in buildings (heat loss, thermal bridges)

Smooth thermal imaging facilitates temperature trend analysis and video recording for diagnostic and documentation purposes. This feature is particularly important in industrial, maintenance, and monitoring applications where rapid response to temperature changes is critical..

25 FPS

The Thermal-45 USB Camera (B) is a compact, mobile plug-and-play thermal imaging camera that combines non-contact temperature measurement, smooth 25 FPS thermal imaging, and a durable aluminum housing. It serves as a practical diagnostic tool for service, industrial, and mobile applications.

Features

  • Model: Thermal-45 USB Camera (B)
  • Device Type: Mobile IR Thermal Imaging Camera (USB-C)
  • Sensor Resolution: 80 × 62 px
  • Wavelength Range: 8 – 14 μm
  • Temperature Measurement Range: -40°C – 400°C
  • Measurement Accuracy: ±1.5°C (ambient temperature 10°C – 70°C)
  • NETD Sensitivity: 125 mK
  • Frame Rate: Up to 25 FPS
  • Field of View (FOV): 56° (D) × 45° (H) × 34° (V)
  • Interface: USB Type-C (plug & play)
  • Power Supply: Powered via USB-C port
  • Housing Material: Aluminum alloy
  • Operating Temperature: -40°C – 85°C
  • Weight: 0.022 kg

Kit includes

  • Thermal-45 USB Camera (B) ×1
