Gravity: Infrared Light Photo Interrupter - IR Slot Sensor Module
ID: 1196964
5902186301023
zł16.61
Tax included
zł13.50 tax excl.
Compact optical sensor based on the ITR9608 switch, which detects the presence of objects by interrupting a beam of light in a 5 mm gap. Thanks to high precision and compatibility with platforms such as Arduino or micro:bit, it is ideal for applications in robotics, automation and education. DFRobot DFR1129
Description

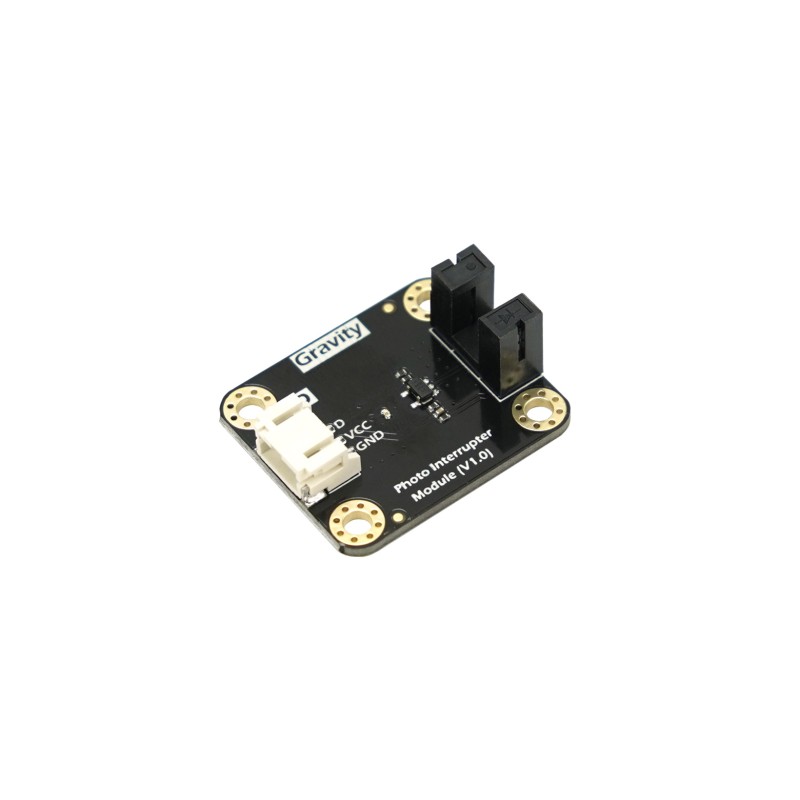

The Gravity: Photo Interrupter Module is a high-precision optical detection module that uses the high-performance ITR9608 photoelectric switch. Thanks to its compact design and ease of use, this module is perfect for various electronic projects, including robotics, automation systems, and counters. The built-in sensor operates on the principle of light interruption – when an object enters the slot between the emitter and receiver, the light beam is blocked, triggering a sensor response.
The module features high sensitivity and precision, and its 5mm photonic gap allows detection of objects of various sizes. With the standard Gravity interface, it can be easily connected to platforms such as Arduino, micro:bit, or UNIHIKER, making it highly versatile. Its simple operation and reliable performance make it a great tool for education, prototyping, and advanced detection systems.
Features
- High sensitivity and precision with ITR9608 switch
- Wide photonic gap: 5.0 mm
- Easy to use and compatible with Arduino, micro:bit, UNIHIKER
- Output type: digital signal
- Light source wavelength: 940nm (infrared)
- Operating voltage: 3.3 to 5V
- Interface type: PH2.0-3P
- Module dimensions: 27 x 32 mm
- Weight: 4g
Kit contains
- Gravity: Photo Interrupter Module
- Gravity: Digital Cable 30cm
1196964
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
