Arbitrary generator 4Ω 15V DC, FPA301-20W 5MHz
search
  • Arbitrary generator 4Ω 15V DC, FPA301-20W 5MHz
ID: 1191603
zł570.95
Tax included

zł464.19 tax excl.

FPA301-20W is a power amplifier for function generators, capable of handling loads with an impedance of 4Ω, operating in the frequency range of 0-5 MHz with a maximum power of 20 W. Equipped with BNC connectors and adjustable gain, it amplifies signals with an input voltage of up to 14Vpp, while providing protection against overload

4 weeks
Awaiting delivery

Description

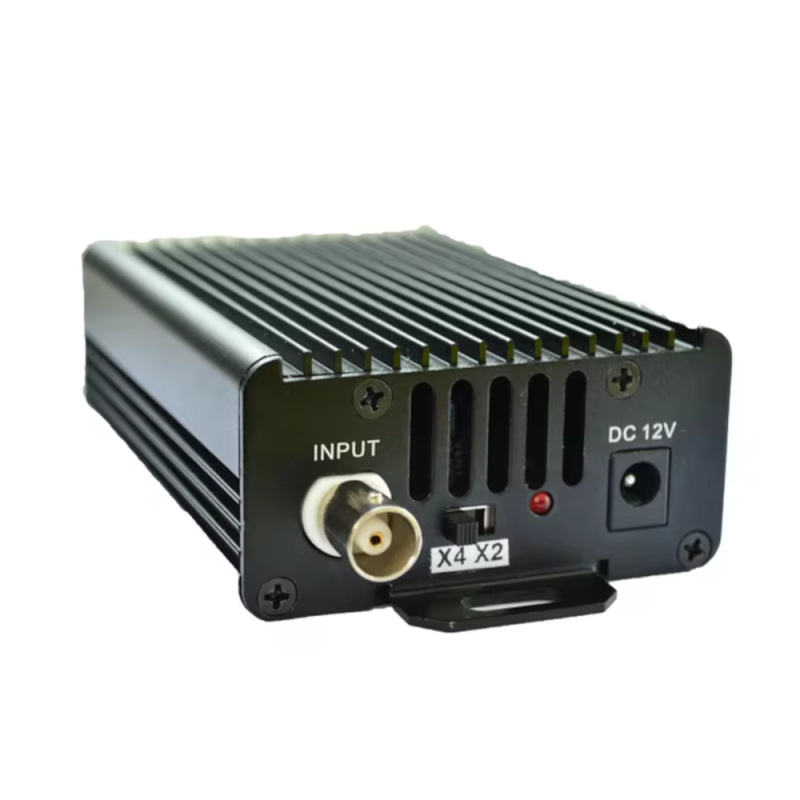

FPA301-20W is a power amplifier designed for function generators, which increases the capabilities of standard generators, allowing to drive low impedance loads, even 4Ω. The device operates in the frequency range from 0 to 5 MHz and offers a maximum output power of 20W. Equipped with BNC connectors for signal input and output, this module is an ideal solution for amplifying signals with an input voltage of up to 14Vpp and an output voltage of up to 28Vpp. Additionally, the amplifier has overload protection and adjustable gain (x2 or x4).

Features

  • Output power: 20W
  • Frequency range: 0-5 MHz
  • Supply voltage: 15V DC
  • Load impedance: ≥4Ω
  • Maximum output current: 1A
  • Gain adjustment: x2 or x4
  • Dimensions: 84 x 49 x 153 mm
1191603

Data sheet

Output voltage
28 V
Output current
1A
Number of channels
1
