ID: 1198429
zł100.61
Tax included

zł81.80 tax excl.

A compact ESP32-based LED driver with WiFi and Bluetooth support, designed to work with WLED software. It allows you to control RGB lighting and animations, offers two 5V logic outputs, and a built-in I2S microphone that responds to sound. Power is provided via USB Type-C (5V/4A) with an automatic fuse, ensuring stable operation, and the Stemma QT I2C connector allows for easy connection of additional modules. Adafruit 6314

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

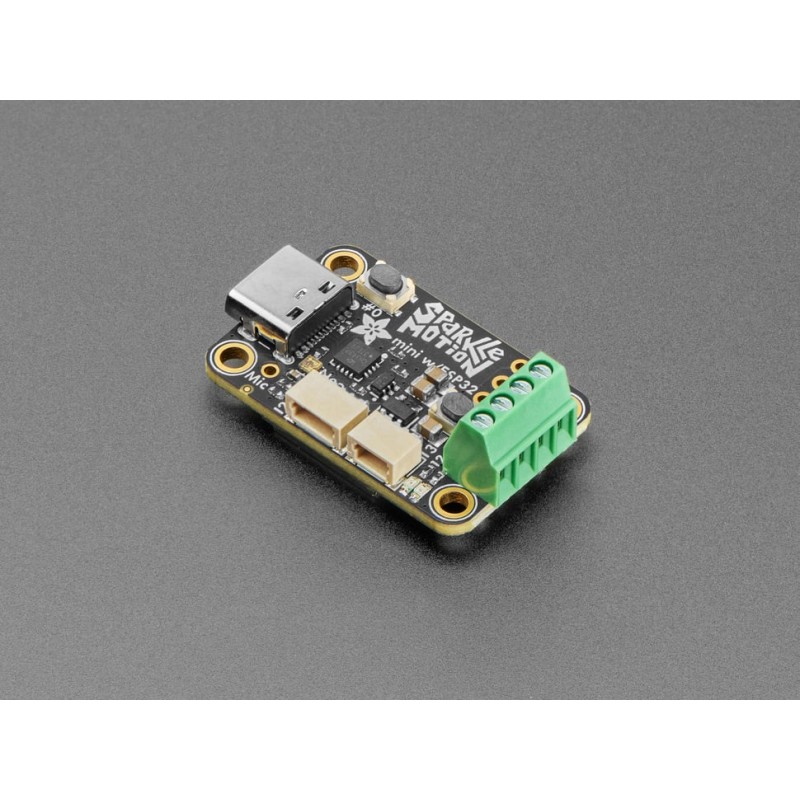

Mini Sparkle Motion is a compact and powerful LED controller designed specifically for use with WLED – a popular open-source software for intelligent lighting control. The module is based on the ESP32 microcontroller featuring a dual-core 240 MHz processor with built-in WiFi and Bluetooth LE/Classic connectivity, making it ideal for remote control of RGB lighting, animations, or interactive art installations. It includes a USB Type-C port that supports up to 5V / 4A power input, allowing it to run from standard power banks for portable projects. A built-in 4A self-resetting fuse provides overload protection, and a pre-soldered screw terminal simplifies quick and reliable wiring without soldering.

The board offers two signal outputs with 5V logic-level shifting, while additional GPIO pins allow for expansion with sensors, buttons, or displays via the Stemma QT I2C interface. An integrated I2S microphone enables sound-reactive lighting effects, such as synchronizing LEDs with music. Compact and mountable, the Mini Sparkle Motion is an excellent choice for LED installations, DIY enthusiasts, and multimedia creators. Fully compatible with Arduino, ESP-IDF, MicroPython, and CircuitPython, it provides a flexible and developer-friendly platform for both hobby and professional lighting projects.

Features

  • ESP32 module (dual-core 240 MHz Tensilica, 4 MB Flash)
  • Connectivity: WiFi, Bluetooth LE, and Bluetooth Classic
  • Power supply: 5V up to 4A via USB Type-C
  • Built-in 4A self-resetting fuse for overload protection
  • Two signal outputs with 5V logic-level shifting
  • Integrated I2S microphone for audio-reactive effects
  • Stemma QT I2C connector for sensors or OLED displays
  • User button (GPIO 0) and reset button
  • Onboard status LED (pin 12) and mini NeoPixel (pin 18)
  • Additional JST connector for analog inputs or microphone
  • Pre-soldered 3.5 mm screw terminal for easy wiring
  • Compatible with WLED, Arduino, ESP-IDF, MicroPython, CircuitPython
  • Dimensions: 32.3 × 19.7 × 12.4 mm
