A compact, wireless light and sound effects controller based on the RP2040 microcontroller with a Raspberry Pi RM2 Wi-Fi and Bluetooth module. It allows you to control mono and RGB LEDs, create lighting animations, and play sound effects thanks to the built-in I2S audio amplifier. It supports sensors and modules via Qw/ST and JST-SH connectors, and effects can be triggered by motion, sound, or remotely over a network. The plug-and-play kit includes a full set of accessories (LED, speaker, PIR sensor, and power supply). Pimoroni PIM753

4 weeks
Awaiting delivery
Kamami is the official distributor of Pimoroni modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

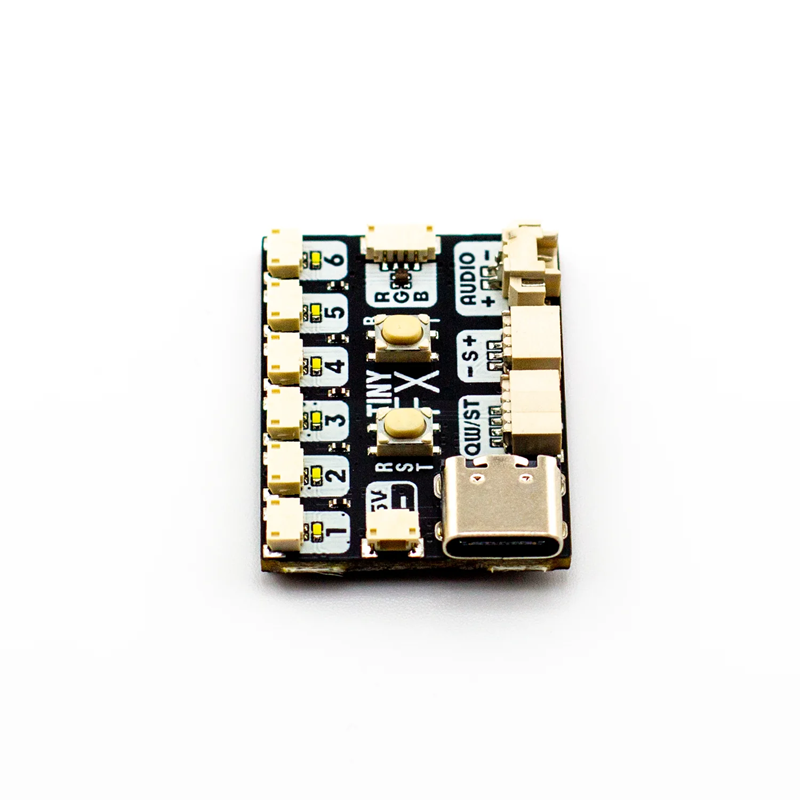

Tiny FX W Starter Kit is a compact yet extremely versatile wireless lighting and sound effects controller, designed for models, dioramas, and creative DIY projects. At the heart of the kit is the RP2040 microcontroller paired with the Raspberry Pi RM2 module. The RP2040 features dual Arm Cortex-M0+ cores, enabling parallel processing of tasks such as lighting effect control and wireless communication. The onboard 4 MB QSPI Flash memory with XiP support allows fast code execution directly from flash, reducing system latency and improving overall performance. The integrated RM2 module provides stable Wi-Fi 2.4 GHz and Bluetooth connectivity, enabling integration with mobile apps, online services, and remote control of effects. Thanks to a rich set of interfaces—including LED outputs, an I2S audio amplifier, and Qw/ST and JST-SH connectors—the controller works seamlessly with a wide range of sensors, modules, and accessories without the need for additional circuitry.


The controller allows brightness adjustment, creation of dynamic lighting animations, motion simulation, and ambient light pulsing. Effects can also be triggered in response to motion, sound, or other environmental events. The integrated audio amplifier makes it possible to add sound effects that perfectly complement the lighting. The kit is designed as a plug-and-play solution. Thanks to its small PCB size, it can be easily hidden inside models, layouts, or decorations. Tiny FX W is ideal for dioramas, dollhouses, and decorative installations. It is the perfect choice for creators who want to combine light, sound, and wireless control in a single project.

Features

  • Microcontroller: RP2040 (Dual Arm Cortex-M0+, up to 133 MHz)
  • Memory: 4 MB QSPI Flash (XiP)
  • Wireless connectivity: Wi-Fi 2.4 GHz and Bluetooth (RM2 module)
  • 6 × mono LED outputs (2-pin JST-SUR) with status LEDs
  • 1 × RGB LED output (4-pin JST-SUR) with RGB status LED
  • Integrated I2S audio amplifier, 3.2 W (mono)
  • Qw/ST connector (Qwiic / STEMMA QT) for sensors and modules
  • 3-pin JST-SH connector for analog and digital sensors
  • Power supply: USB-C or external 2-pin JST-SUR (up to 1 A)
  • Reset and BOOT buttons (BOOT also functions as a user button)
  • Programming: MicroPython
  • Board dimensions: 31.2 × 23.2 × 6.7 mm

Kit contains

  • Tiny FX W
  • Mini speaker 8 Ω / 1 W with adhesive backing
  • 6 × point LEDs (cool white)
  • 5 × RGB LEDs (with breakout board and cable)
  • 3 × AAA battery holder (batteries not included)
  • USB-A → USB-C cable
  • PIR Stick – motion sensor
  • 3-pin JST-SH cable for connecting the PIR sensor
1198995

Data sheet

Microcontroller
RP2040
Flash memory
4 MB
Number of I/O
None
Ethernet
none
WiFi/BT module
Yes
Bluetooth module
Yes
MicroSD slot
No
Length
31mm
Width
23 mm
USB connector type
USB type C
