USB/DC/Solar Lithium Ion/Polymer charger Rev C - LiPo charger module for solar panels
ID: 203646
5906623466474
zł99.00
Tax included
zł80.49 tax excl.
Charger module designed for photovoltaic panels with an output voltage of 6 V or USB power supplies. It allows you to charge LiPo 1S batteries with a nominal voltage of 3.7 V. Adafruit 390
Description
Charger module dedicated to LiPo and Li-Ion batteries with a voltage of 3.7/4.2V. It provides effective and safe battery charging with a wide range of additional functions. Thanks to the charger's versatile input, you can power it using the USB type C connector or use solar energy by connecting a 6V solar panel, which allows you to charge the batteries even in field conditions. The board is equipped with a DC Jack connector and two JST PH 2.0 connectors. The charger allows you to connect the battery and the load at the same time. The automatic charge current tracking function ensures efficient use of the energy generated by the solar panel of any power, while the intelligent load sharing dynamically adapts to the available input power, thus minimizing overcharging or discharging the battery.
LED indicators make it easy to monitor the charging process. A three-color LED indicator informs you of the current charging status, and a low battery indicator alerts you when the battery voltage drops below a certain critical level. An extremely useful function is the ability to adjust the charging current in the range of 50 mA to 1 A, which allows you to adjust the charging to the specific needs of the batteries and optimize the process. The charger can be equipped with a 10K thermistor to monitor the temperature during charging.
Features
- Dedicated to LiPo and Li-Ion 3.7/4.2V batteries
- Charger input: 5V USB or 6V solar panel
- USB Type-C connector
- DC jack connector
- Two JST PH 2.0 connector for battery and load connection
- Automatic charging current tracking for high efficiency solar panel utilization of any wattage
- Smart Load Sharing automatically uses the available input power to prevent continuous charging/discharging of the battery
- Tri-color LED charging indicator
- Low battery indicator
- Adjustable charging current from 50 mA to 1 A
- Possibility to connect a 10K thermistor for temperature monitoring
- Dimensions: 41x33mm

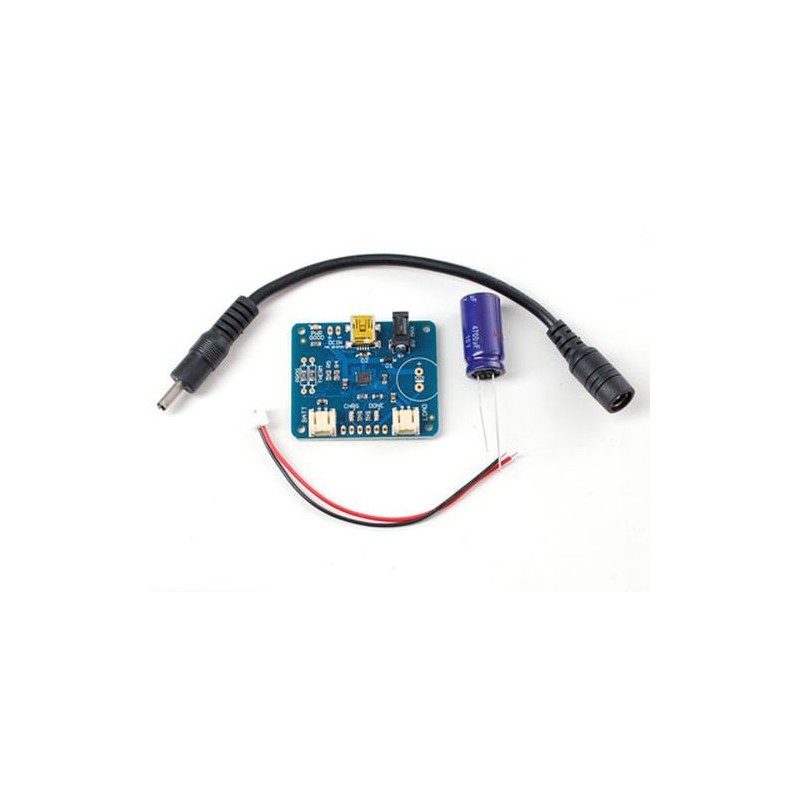

Kit contains
- Charger module
- Cable with JST PH2.0 connector
- Electrolytic capacitor
203646
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
