STEMMA QT APDS9960 Proximity, Light, RGB, and Gesture Sensor - module with proximity, light, RGB and gestures sensors
ID: 566154
5906623429639
zł41.87
Tax included
zł34.04 tax excl.
A multifunctional module with an optical sensor for measuring the intensity of illumination, the color of the incident RGB light, the distance from the object and the detection of 3D gestures. Adafruit 3595
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
A multifunctional module with an optical sensor for measuring the intensity of illumination, the color of the incident RGB light, the distance from the object and the detection of 3D gestures with a detection range from 10 to 20 cm. The APDS9960 chip has built-in UV and IR filters and four LEDs set to receive information from different directions. The module is powered with the voltage from 3.3 V to 5 V, and communication is via the I2C interface (STEMMA QT connector). Full documentation is available on the product page.
Features
- Detection of ambient light and RGB color
- Proximity sensor
- Gesture detection
- Range: 10 to 20 cm
- I2C interface (address: 0x39)
- Supply voltage: 3 V to 5 V
- Dimensions: 25.7 x 17.8 x 4.6 mm
Kit contains
- STEMMA QT APDS9960 Proximity, Light, RGB, and Gesture Sensor
- 7-pin goldpin male connector
566154
Data sheet
- Interface
- I2C
- Type of sensor
- Infrared
- Minimum distance
- 10 cm
- Maximum distance
- 20 cm
You might also like
Flexible Qwiic cable 150 mm long. On one side it is terminated with a female Qwiic connector, and on the other side with single male goldpin connectors. SparkFun PRT-17912
zł8.34
Delivery date unknown
No product available!
Flexible Qwiic cable, 150 mm long. On one side it is terminated with a female Qwiic connector, and on the other side with single female goldpin connectors. SparkFun PRT-17261
zł8.95
24h
Available quantity: 5
Available
Flexible 4-core cable, 50 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17260
zł6.85
24h
Available quantity: 8
Available
Flexible 4-core cable, 100 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17259
zł10.55
Delivery date unknown
No product available!
Other products in the same category (16)
Grove module with a proximity sensor, light, color and the ability to detect gestures. The board is equipped with a Grove connector and communicates via I2C. Seeed Studio 101020580
zł87.58
24h
Available quantity: 8
Available
Module with color sensor TCS34725FN. The board is equipped with a Grove connector and communicates via the I2C interface. Seeed Studio 101020341
zł61.75
24h
Available quantity: 3
Available
Color sensor equipped with the OPT4048 sensor from Texas Instruments. It allows you to determine the characteristics of ambient light by measuring parameters such as light intensity, color in the CIE XY, LUV coordinate systems, as well as color temperature. The module is equipped with Qwiic connectors. SparkFun SEN-22638
zł54.80
6 weeks
No product available!
No product available!
A module with a color and gesture sensor based on the APDS-9960 chip. It can detect simple hand gestures, RGB colors and measure ambient light. DFRobot SEN0187
zł74.94
24h
Available quantity: 1
Available
Color sensor equipped with the OPT4048 sensor from Texas Instruments. It allows you to determine the characteristics of ambient light by measuring parameters such as light intensity, color in the CIE XY, LUV coordinate systems, as well as color temperature. The module is equipped with Qwiic connectors. SparkFun SEN-22639
zł56.32
24h
Available quantity: 1
Available
KAmodVL6180X is a module that allows to measure light intensity (ALS), distance to the object and recognition of gesture. It has an embedded voltage regulator and voltage level translators on signal lines. Thanks to this can be used in systems with 2.8...5.5V power supply voltage.
zł39.00
24h
Available quantity: 309
Available
Color sensor with a range from 8 to 16 mm. It offers 3 operating modes and can be powered with the voltage from 12 to 24 V. DFRobot SEN0506
zł274.99
24h
Available quantity: 2
Available
Module with a light sensor (photoresistor) designed for M5Stack sets. An analog output and a digital output have been led out on the Grove connector. M5Stack U021
zł22.90
24h
Available quantity: 3
Available

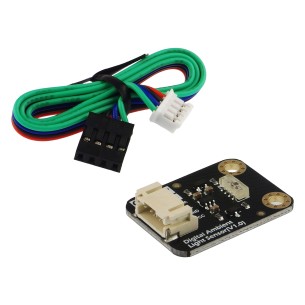

Module with a light intensity sensor BH1750. The measuring range is from 1 to 65535 lux, and communication is carried out using the I2C bus. Adafruit 4681
