Gravity: Analog Ambient Light Sensor - module with an analog TEMT6000 light sensor
ID: 581622
5906623406487
zł30.53
Tax included
zł24.82 tax excl.
Module with an analog TEMT6000 light intensity sensor. The voltage at the output is linearly correlated with the intensity of the incident light. The module is supplied with the voltage from 3.3 to 5V. DFRobot SEN0043
Description
Module with an analog TEMT6000 light intensity sensor. The sensor is based on a phototransistor, it is placed in a small SMD housing and has a wide sensitivity angle. The voltage at the output is linearly correlated with the intensity of the incident light. The sensor is powered with the voltage ranging from 3.3 V to 5 V and has an analog output (Gravity connector). The product wiki page includes the manual and sample programs.
Features
- Analog output
- Detection range: 1 to 1000 lux
- Wide detection angle: ϕ = ± 60°
- Gravity connector
- Supply voltage: from 3.3 V to 5 V
- Current consumption: 20 mA
- Working temperature: -40 to 85°C
- Dimensions: 30 x 22 mm
Kit contains
- Modułe with Analog Ambient Light Sensor TEMT6000
- Gravity cable
581622
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Arduino Uno Rev3 is a popular board with Atmel ATmega328 microcontroller from the AVR family, there are 14 I / O lines, 6 PWM channels and 6 analog inputs. The additional ATmega16U4 microcontroller realizes communication via the USB interface. Arduino A000066
Regular pricezł109.90zł93.90 24hAvailable quantity: 9 AvailableModule with an analog TEMT6000 light intensity sensor. The output voltage increases with increasing intensity of the incident light. The sensor is powered by 5 V. SparkFun BOB-08688
zł32.82 Delivery date unknown No product available!
- Available
Expansion board for Arduino, allows easy connection of XBee modules, has separate outputs for I2C, SPI and UART buses. The built-in 3.3V voltage stabilizer and operating mode switch make it easier to program the Arduino when the XBee module is connected to the sockets. DFRobot DFR0265
zł24.12 24hAvailable quantity: 1 AvailableBoard with ATmega1280 microcontroller from the AVR family, the user has 54 I/O lines, 14 PWM channels, 16 analog inputs. DFRobot DFR0003
zł89.20 Delivery date unknown No product available!
Other products in the same category (16)
Module with proximity and ambient light sensor based on the VCNL4020 system. It allows you to detect obstacles in the range from 0 to 20 cm and measure light intensity from 0.26 to 16,000 lux. It communicates via the I2C bus. Adafruit 5810
zł36.85 24hAvailable quantity: 4 AvailableModule with a light sensor based on the APDS-9002 system. With the aid of this system, it is possible to measure the intensity of illumination in lux. The module has a connector in accordance with the Grove standard. Seeed studio 101020076
zł34.22 24hAvailable quantity: 1 AvailableTSL25911FN light sensor module that can measure both visible and infrared light. It communicates via an I2C interface. Waveshare TSL25911 Light Sensor
zł18.29 24hAvailable quantity: 6 AvailableModule with a light sensor and a proximity sensor up to 5 cm. It allows you to read the illuminance from 0.01 to 64000 lux and communicates via the I2C interface. Pimoroni PIM413
zł51.48 24hAvailable quantity: 2 AvailableModule with three optical inspection sensors (spectrophotometers) from the AS7265x series. The module consists of three sensors; AS72651, AS72652 and AS72653 which can detect wavelengths from 410nm (UV) to 940nm (IR). SparkFun SEN-15050
zł499.39 24hAvailable quantity: 2 AvailableAS7331 UV light sensor module. It allows you to measure UV radiation on three channels: UVA (320-400nm), UVB (280-320nm) and UVC (200-280nm). Communication with AS7331 takes place via the I2C interface and the Qwiic connector. SparkFun SEN-23517
zł128.46 24hAvailable quantity: 1 AvailableA 5-channel flame detector module for detecting a flame over a larger area. Detects fire with 5 sensors that are placed on the module every 30 degrees. It has a digital and analog output. modFLAME-5CH
zł34.10 24hAvailable quantity: 2 AvailableA multifunctional module with an optical sensor for measuring the intensity of illumination, the color of the incident RGB light, the distance from the object and the detection of 3D gestures. Adafruit 3595
zł42.59 4 weeks No product available!
Module with analogue UV light sensor ML8511. It enables the measurement of the radiation intensity for the UV-A (320-400nm) and UV-B (280-320nm) waves. It has an analog interface. GY8511
zł89.97 24hAvailable quantity: 1 AvailableModule with digital light sensor TSL2561. The board is equipped with a Grove connector and communicates via the I2C interface. Seeed Studio 101020030
zł34.72 6 weeks No product available!
Grove module with a proximity sensor, light, color and the ability to detect gestures. The board is equipped with a Grove connector and communicates via I2C. Seeed Studio 101020580
zł87.58 24hAvailable quantity: 8 AvailableThe plate allows the detection of gestures, similar objects at a distance of a few to several centimeters and the intensity of ambient light, equipped with an APDS-9960 system with an I2C interface. MOD-66
zł61.43 24hAvailable quantity: 1 AvailableThe VCNL4200 sensor module combines distance detection and ambient light measurement, ideal for applications such as robotics and home automation. Thanks to infrared technology, the detection range is up to 1.5 meters, and the built-in ALS sensor allows you to measure light intensity in the range of 0.003 to 1570 lux, making it a versatile solution for monitoring lighting conditions. Adafruit 6064

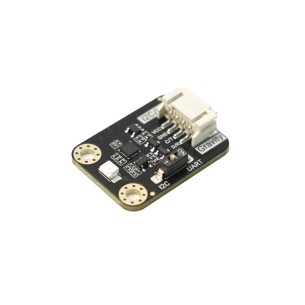

zł36.54 24hAvailable quantity: 2 AvailablePrecise sensor measuring UV radiation in the range of 240 to 370 nm, directly outputting UV index value (0-11) and hazard level (1-5). Thanks to I2C and UART interface support and compact design, it is ideal for environmental monitoring, health protection and optimization of photovoltaic installations. DFRobot SEN0636
