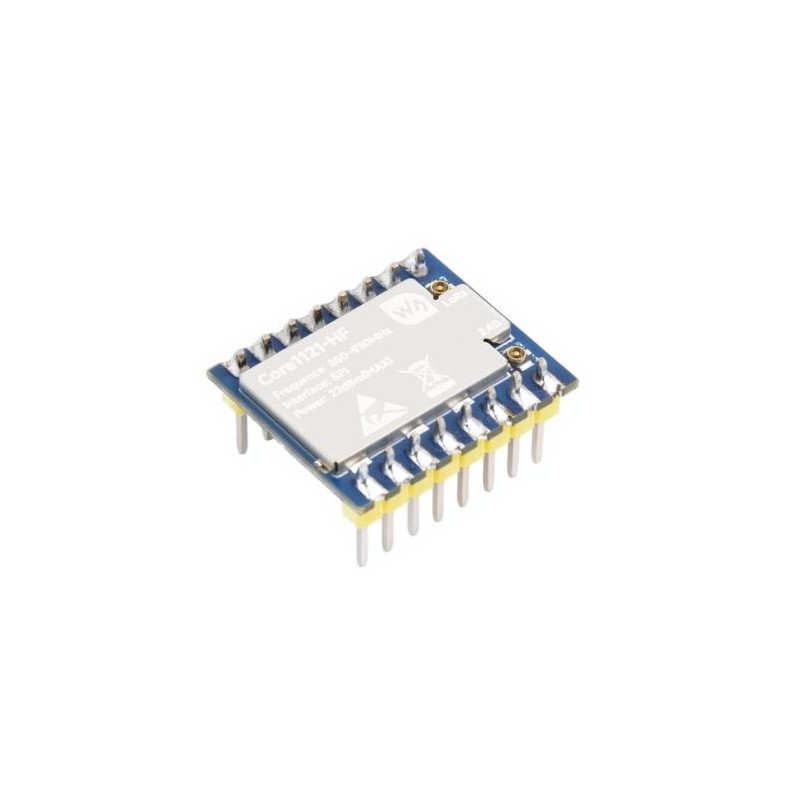

Core1121 HF dual-band LoRa module Sub-GHz/2.4GHz (with pre-soldered pin headers) - Waveshare 31900
ID: 1199746
zł52.16
Tax included
zł42.41 tax excl.
Dual-band LoRa communication module based on the LR1121 transceiver, supporting Sub-GHz 850-930MHz and 2.4GHz bands, with SPI interface, AES-128 encryption and an integrated TCXO oscillator. HF version with pre-soldered pin headers. Waveshare Core1121-HF-M
Description
The Waveshare 31900 Core1121-HF LoRa module is designed for low-power wireless communication in LPWAN networks, for IoT applications requiring long range, high reliability and operation across multiple frequency bands. The design is based on the third-generation low-power LR1121 transceiver, enabling transmission in the Sub-GHz and 2.4GHz ISM bands, allowing global deployment in accordance with local radio regulations.
The module supports LoRa, (G)FSK and LR-FHSS modulation schemes, ensuring compatibility with earlier solutions based on SX126X, SX127X and SX128X series transceivers. Communication with the host microcontroller is handled via the SPI interface, enabling easy integration with popular platforms such as ESP32, Raspberry Pi, STM32 and Raspberry Pi Pico.
The integrated TCXO oscillator improves frequency stability over a wide temperature range, while the hardware AES-128 encryption engine enhances data security in LoRa and LoRaWAN networks. The version with pre-soldered pin headers supports rapid prototyping and convenient installation on breadboards and development boards.
Features
- RF chipset: LR1121
- Frequency range: 850-930MHz, 1.9-2.1GHz, 2.4-2.5GHz
- Supported modulations: LoRa, (G)FSK, LR-FHSS
- Data rate:
- LoRa: 0.091Kbps - 62.5Kbps
- (G)FSK: 0.6Kbps - 300Kbps
- Transmit power:
- Sub-GHz: -9dBm ~ 22dBm
- ISM: -18dBm ~ 13dBm
- Receiver sensitivity:
- Sub-GHz: -127dBm
- ISM: -111dBm
- Typical range:
- Sub-GHz: up to 5 km
- ISM: up to 2 km
- Communication interface: SPI
- Encryption: AES-128
- Oscillator: 32MHz TCXO
- Supply voltage: 3.3 V
- Logic levels: 3.3 V
- Current consumption:
- Sub-GHz transmit: 115 mA at 22dBm
- Sub-GHz receive: 9.2 mA
- ISM transmit: 25 mA at 13dBm
- ISM receive: 8.1 mA
- Antenna interface: IPEX-4, castellated pads
- Antenna protection: TVS
- Operating temperature: -40°C ~ 85°C
- Pins: castellated edges, 2.54 mm pitch
- Dimensions: 19 x 22 mm
- Version: HF with pre-soldered pin headers
Kit includes
- Core1121-HF-M LoRa module with pre-soldered pin headers - 1 pc
- IPEX4 to SMA cable - 1 pc
- 2 dBi SMA antenna - 1 pc
- 2.4GHz antenna - 1 pc
