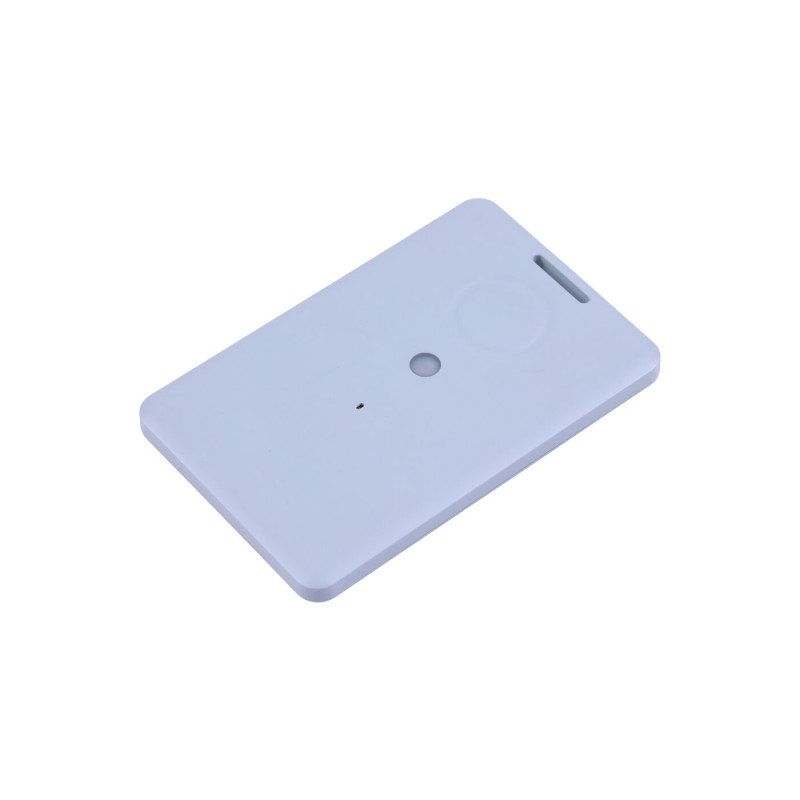

Card Tracker White Label T1000-A - LoRaWAN locator with GNSS, Wi-Fi and BLE - Seeed Studio 114993207
ID: 1203584
zł189.00
Tax included
zł153.66 tax excl.
LoRaWAN tracker designed for OEM, logistics, and B2B applications. The device supports GNSS, Wi-Fi, and Bluetooth positioning, ensuring precise tracking both outdoors and indoors. Built-in temperature and light sensors, as well as a 3-axis accelerometer, enable monitoring of environmental conditions and event detection. Seeed Studio 114993207
Description
Card Tracker White Label T1000-A is a compact LoRaWAN tracker designed for OEM applications and B2B projects. The device combines GNSS, Wi-Fi, and BLE positioning, providing reliable tracking both indoors and outdoors. Support for multiple GNSS systems such as GPS, Galileo, GLONASS, and BeiDou ensures high location accuracy in open areas. In indoor environments, the tracker uses Bluetooth and Wi-Fi signals to precisely determine its position. Built-in sensors enable the measurement of temperature, light intensity, and motion. This allows the device to respond to events and changes in environmental conditions.
The T1000-A is equipped with a 3-axis accelerometer that allows detection of shocks, movement, and inactivity. Low power consumption enables several months of operation on a single charge. The magnetic charging connector increases ease of use and resistance to moisture. In the event of a temporary loss of LoRaWAN network connectivity, data is stored locally and transmitted once the connection is restored. Internal memory allows storage of up to 1000 location records. A neutral design without manufacturer markings makes the device fully white-label ready. This enables rapid pilot deployments, proof-of-concept testing, and brand customization. The tracker is ideal for logistics, asset management, and monitoring of mobile objects. A robust enclosure with an IP65 protection rating ensures reliability in harsh conditions. Card Tracker T1000-A combines functionality, flexibility, and modern localization technology.
Features
- Network connectivity (Backhaul): LoRaWAN® v1.0.4 Class A
- Bluetooth: Bluetooth v5.1, configuration via application
- LoRaWAN frequency bands: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864
- Temperature sensor: range from -20°C to +60°C
- Temperature measurement accuracy: ±1°C
- Temperature resolution: 0.1°C
- Light intensity sensor: range 0–100% (0 – complete darkness, 100 – maximum brightness)
- 3-axis accelerometer for motion detection
- Indicators: 1 × LED and 1 × buzzer indicating device status
- Button: 1 × button for operation and event triggering (SOS)
- Antennas: built-in (GNSS / LoRa / Wi-Fi / BLE)
- Communication range: 2 to 5 km (depending on gateway antenna, installation, and environmental conditions)
- Supported GNSS systems: GPS / GLONASS / Galileo / BeiDou / QZSS
- GNSS sensitivity: -145 dBm (cold start) / -160 dBm (tracking)
- GNSS location accuracy: approximately 1 m CEP (GPS, -130 dBm)
- Wi-Fi positioning: passive scanning, transmission of 4 scanned MAC addresses
- Bluetooth positioning: transmission of 3 beacon MAC addresses with the strongest signal
- Data memory: buffering of up to 1000 records in the absence of LoRaWAN network
- Lithium battery with a capacity of 700 mAh
- Estimated operating time: up to 4 months on a single charge (data transmission every 1 hour, GNSS only)
- Battery monitoring: periodic transmission of charge level
- USB charging cable, length 1 m
- Operating modes:
- Standby – heartbeat signal transmission only
- Periodic – cyclic location transmission
- Event – dynamic interval adjustment based on temperature, light, and motion (start, stop, shock, no movement)
- Data storage: over 1000 location records stored locally when LoRaWAN coverage is unavailable
- Application: device configuration via Bluetooth application
- Input supply voltage: 4.7–5.5 V DC
- Operating temperature: -20°C to +60°C
- Operating humidity: 5% – 95% (non-condensing)
- Certifications: CE / FCC / TELEC / RoHS / REACH
- Enclosure protection rating: IP65
- Dimensions: 85 × 55 × 6.5 mm
- Weight: 32 g
Kit contains
- Card Tracker White Label T1000-A tracker
- Magnetic USB charging cable (1 m, power adapter not included)
