Fnirsi DMC-100 - clamp multimeter 1000V/600A
ID: 1198872
5902186305427
zł149.00
Tax included
zł121.14 tax excl.
An advanced digital clamp meter capable of precisely measuring current up to 600A and voltage up to 1000V, ideal for service, laboratory, and home applications. Equipped with a 2-inch color TFT screen, NCV function, three measurement modes, and graphing capabilities, it simplifies signal analysis. A built-in 1500mAh battery, temperature measurement, and features such as a flashlight and data storage make it a versatile and practical tool for professionals. Fnirsi DMC-100
Description

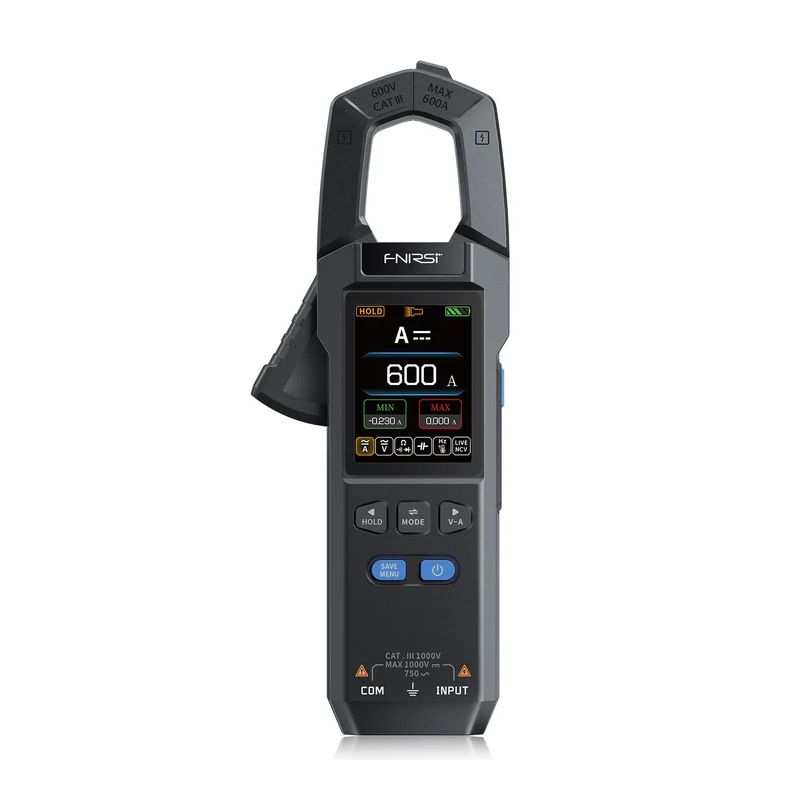

FNIRSI® DMC-100 is a high-end digital clamp meter designed for precise measurement of current, voltage, and various other electrical parameters. The device offers high accuracy and a wide measurement range – up to 1000V voltage and 600A current – making it an ideal tool for service work, laboratory testing, vehicle diagnostics, and home installations.
The integrated 2.0-inch TFT color screen with a 240×320 pixel resolution ensures excellent readability, while the modern graphical interface allows data to be displayed in waveform charts. The meter supports three measurement modes: standard, waveform, and power analysis, offering comprehensive signal analysis capabilities. The NCV (non-contact voltage detection) function enables quick voltage presence detection without touching the wires.
The DMC-100 also measures temperature in the range of -55°C to 1300°C, and the built-in 1500mAh battery with USB Type-C charging provides long-lasting and convenient operation. Additional features such as a flashlight, screen backlight, auto power-off, and data memory make this tool extremely versatile. The device can store up to 30 data sets and supports firmware updates. It is a reliable and modern instrument for professionals and demanding users alike.
Features
- DC voltage measurement: 9.999V / 99.99V / 999.9V
- AC voltage measurement: 9.999V / 99.99V / 750.0V
- DC/AC current measurement: 99.99A / 600.0A
- AC current ranges: 4A / 40A / 600A
- Resistance measurement: 99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
- Resistance ranges: 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
- Capacitance measurement: 9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
- Frequency measurement: 9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
- Temperature measurement: -55~1300℃
- Diode test
- Continuity test
- NCV (non-contact voltage detection) function
- Live wire detection
- Measurement modes: general measurement, waveform view, power analysis
- Measurement range: manual
- Flashlight
- Data zeroing
- Max./min. value
- Waveform display
- Power calculation
- HOLD function
- True RMS measurement
- Data storage: up to 30 measurement sets
- Screen brightness adjustment: 10 levels
- Auto power-off: OFF / 5 min / 15 min / 30 min
- Firmware upgrade supported
- Accuracy: 10,000-count display
- Display: 2.0" TFT color, 240×320 pixels
- Power supply: 3.7V 1500mAh battery, charging via USB Type-C (5V/1A)
- Jaw opening: 25 mm
- Dimensions: 193 × 74 × 32 mm
- Weight: 194 g
Kit contains
- FNIRSI DMC-100 meter
- USB Type-C cable
- Test leads
- Temperature probe
1198872
Data sheet
- Zakres pomiarowy napięcia DC
- 200mV/2000mV/20V/200V/1000 V
- Zakres pomiarowy napięcia AC
- 200V/750V
- Zakres pomiarowy natężenia DC
- 600 A
- Zakres pomiarowy natężenia AC
- 600 A
- Zakres pomiarowy rezystancji
- 10 MΩ
- Zakres pomiarowy pojemności
- 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF
- Zakres pomiarowy częstotliwości
- 10Hz-10MHz
- Pomiar temperatury
- Tak
- Regulacja zakresu pomiarowego
- Manualna
- True RMS
- Tak
- Funkcja Hold
- Tak
- Tester ciągłości obwodu
- Akustyczyny
- Tester diod
- Tak
- Pomiar hFE tranzystorów
- Nie
- Buzzer
- Tak
- Wskaźnik rozładowanej baterii
- Tak
- Automatyczny wyłącznik
- Tak
- Podświetlenie wyświetlacza
- Tak
- Battery type
- inny
- Length
- 193 mm
- Width
- 74 mm
- Thickness
- 32 mm
- Weight
- 194 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
