1-Channel Relay Module, 10 A / 250 VAC, 5 V Coil
search
  • 1-Channel Relay Module, 10 A / 250 VAC, 5 V Coil
  • 1-Channel Relay Module, 10 A / 250 VAC, 5 V Coil
  • 1-Channel Relay Module, 10 A / 250 VAC, 5 V Coil
  • 1-Channel Relay Module, 10 A / 250 VAC, 5 V Coil
ID: 1199441
zł6.90
Tax included

zł5.61 tax excl.

The 5 V relay module enables safe switching of high-voltage loads via microcontroller logic. Its compact size, mechanical durability, and wide operating conditions make it a versatile choice for automation, lighting control, and DIY electronics projects.

24h
Available
Available quantity: 2

Description

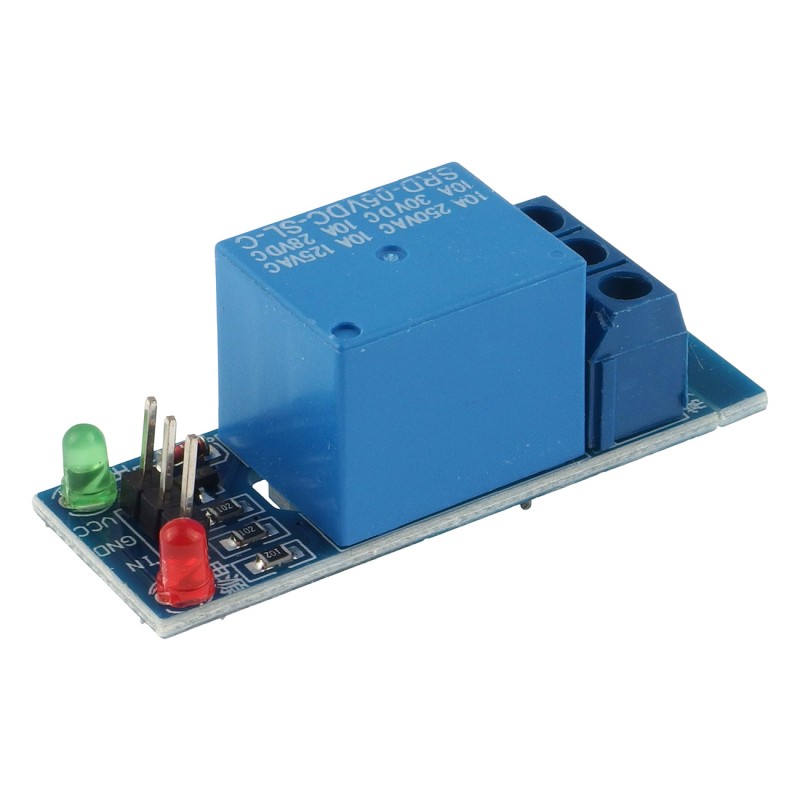

This 1-channel relay module features an SRD-5VDC-SL-C relay that allows control of mains-powered devices up to 250 V AC or 125 V DC using a low-voltage digital signal from a microcontroller such as Arduino. It includes 2.54 mm pitch header pins: VCC, GND, and IN. The relay is activated by a LOW signal, which closes the COM–NO contacts and lights up a green LED indicator.

Specifications

  • coil voltage: 5 V DC
  • triggered by LOW signal on IN pin
  • max contact voltage: 250 V AC / 125 V DC
  • max current: 10 A at 250 V AC, 15 A at 125 V AC
  • electrical endurance: 10⁵ switching cycles
  • mechanical endurance: 10⁷ switching cycles
  • insulation resistance: ≥ 100 mΩ at 500 V DC
  • response time: ≤ 10 ms
  • release time: ≤ 5 ms
  • dielectric strength: 1500 VAC (coil–contacts), 750 VAC (between open contacts) for 1 minute
  • operating temperature: −40 °C to +85 °C
  • operating humidity: 35 %–85 % RH
  • dimensions: 43 × 17 mm
  • nterface: 2.54 mm pitch header pins
1199441

Data sheet

Output current
10A
Number of channels
1
Executive element
Przekaźnik
Coil voltage
5 VDC
