A compact and powerful FPGA platform based on the Altera Agilex 3 A3CZ135BB18AE7S chip, offering 135,110 logic elements and M20K and MLAB memory for advanced digital designs. The board features 64 MB of SDRAM, a MicroSD slot, HDMI output, a Gigabit Ethernet port, and a built-in USB-Blaster III programmer with USB-C for rapid prototyping and debugging. With extensive I/O, including GPIOs, LEDs, switches, and PMOD connectors, the Atum A3 Nano is ideal for robotics, consumer electronics, and image processing applications. The platform is ready to run after connecting a 5V power supply, and a free Altera Quartus Pro Edition software license is included.

24h
Available
Available quantity: 2

Description

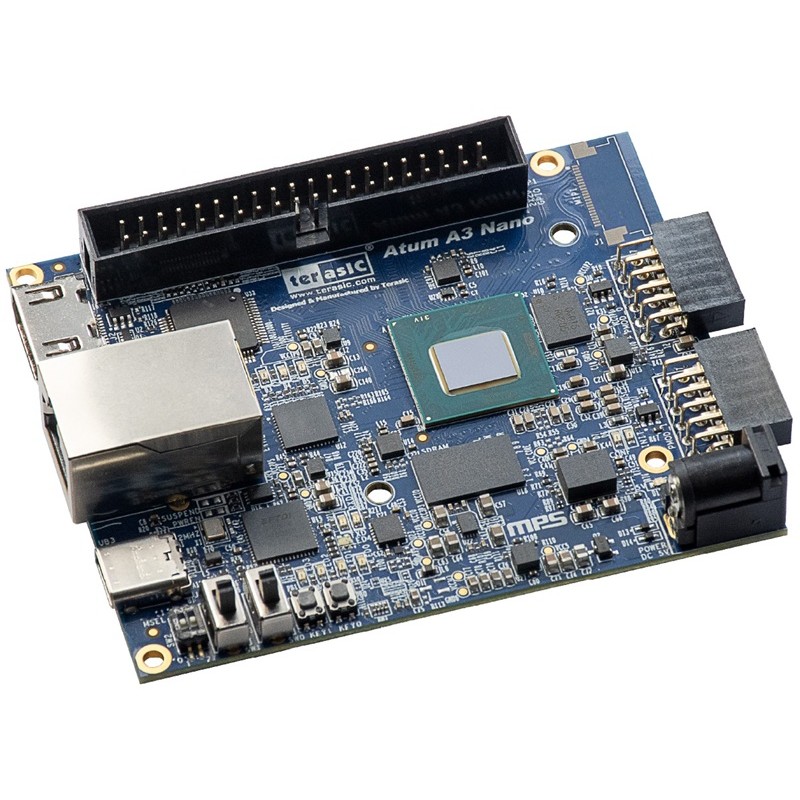

The Terasic Atum A3 Nano kit is a compact and powerful FPGA platform that combines high computational power with an affordable price. Powered by the Altera Agilex 3 A3CZ135BB18AE7S, it offers 135,110 logic elements, 6.89 Mbit M20K memory, and 1.4 Mbit MLAB, enabling the implementation of complex digital projects. The board is equipped with 64 MB SDRAM, a MicroSD card slot, HDMI output, Gigabit Ethernet port, and an integrated USB-Blaster III programmer/debugger with a USB Type-C connector. Its small form factor makes it ideal for applications requiring compact solutions, such as robotics, automotive, smart cities, consumer electronics, and image processing.


The Atum A3 Nano offers extensive I/O capabilities, including 4 LEDs, 2 slide switches, 2 buttons, a 2x20 GPIO header, and two 2x6 TMD connectors compatible with PMOD. The platform supports both prototyping and advanced FPGA applications, allowing rapid testing and expansion of projects. The kit also includes a free license for Altera Quartus Pro Edition, enabling immediate FPGA digital design. The board is fully prepared for 5V DC power and ready to use straight out of the box.


The compact design, high performance, and broad set of interfaces make the Atum A3 Nano an excellent tool for students, engineers, and professional digital system designers. With the ability to integrate with various peripheral modules and standard PMOD connectors, the kit provides full flexibility for creating advanced electronic and FPGA projects.

Features

  • FPGA: Altera Agilex 3 A3CZ135BB18AE7S
  • Logic elements: 135,110 LEs
  • Memory: 6.89 Mbit M20K, 1.4 Mbit MLAB
  • Multipliers: 368 (18x19)
  • SDRAM: 64 MB, 32-bit data bus
  • Programming & debugging: USB-Blaster III (USB Type-C)
  • Flash: 128 Mbit QSPI Flash
  • Communication: Gigabit Ethernet, UART
  • Video output: HDMI
  • Expansion connectors: 1 x 2x20 GPIO, 2 x 2x6 TMD (PMOD compatible)
  • LEDs/Buttons: 4 LEDs, 2 slide switches, 2 buttons
  • Power supply: 5V DC
  • Dimensions: 85 x 70 mm

Kit contains

  • Atum A3 Nano Board
  • Heatsink
  • USB Type-C Cable
  • 5V/2A Power Supply
