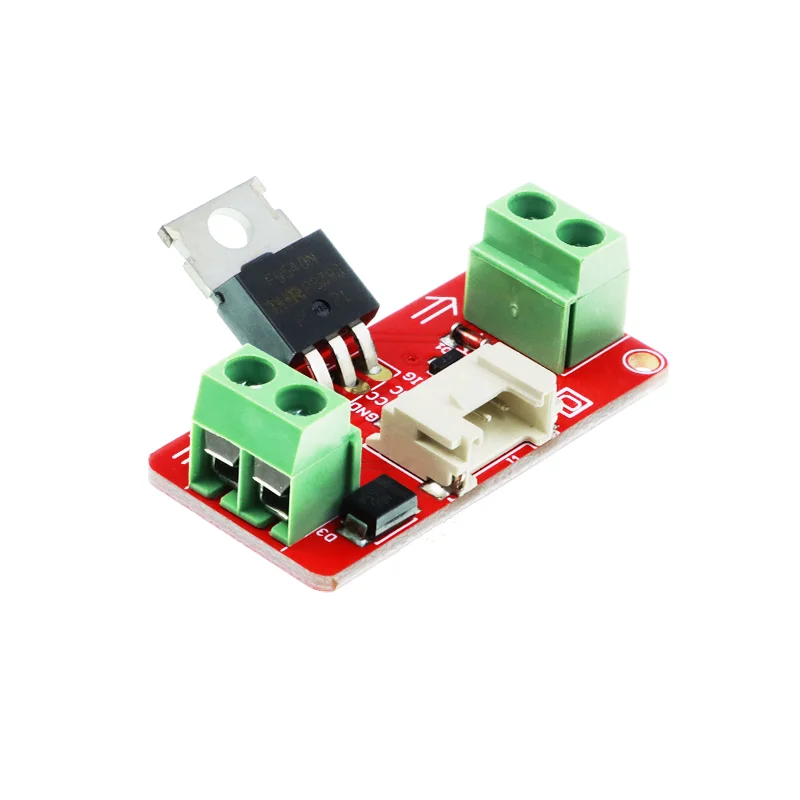

Crowtail-MOSFET 2.0 – switching module with IRF9540N MOSFET, 5–50 V DC, 5 V control, screw terminals
ID: 1201678
zł12.90
Tax included
zł10.49 tax excl.
Crowtail-MOSFET 2.0 enables controlling devices powered with up to 50 V DC using a low-voltage signal from a microcontroller. It is used in projects requiring power isolation or switching, such as fans, LED strips or DC motors.
Description
Crowtail-MOSFET 2.0 is a module designed for controlling devices powered with up to 50 V DC using a low-voltage 5 V control signal from a microcontroller. It is based on a P-channel IRF9540N MOSFET. The module is equipped with two screw terminals: one for connecting an external power source and the other for the load. When the circuit is closed, the MOSFET conducts voltage from the input to the output. If no external power supply is available, power can be delivered directly from the microcontroller through the Crowtail interface. The module can be used for controlling fans, motors or low-voltage lighting.
Properties
- Crowtail connector – digital 5 V control
- IRF9540N P-channel MOSFET
- Input voltage (Vin): 5–50 V DC
- Logic supply: 5 V DC
- Example load: miniature 5 V / 0.13 A fan
- Fan cable length: 10 cm
- Dimensions: 40.0 × 20.0 × 20.0 mm
Included
- Crowtail-MOSFET 2.0 x1
- Crowtail 4-pin cable x1
1201678
Data sheet
- Output current
- 0,13 A
- Number of channels
- 1
- Executive element
- MOSFET
- Coil voltage
- 5 VDC
